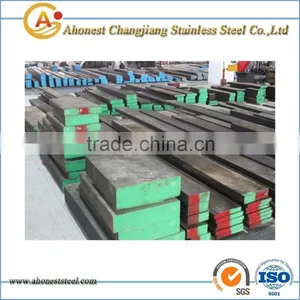

Mould and tool steel sheet D2,cold rolled D2 die steel
Steel group: Cold work tool steels
Main application:
High-duty cutting tools, blanking and punching tools, wood working tools, shear blades for cutting light-gauge material, thread rolling tools, tools for drawing, deep drawing and cold extrusion, pressing tools for the ceramics and pharmaceutical industries, cold rolls (working rolls) for multiple-roll stands, measuring instruments and gauges, small moulds for the plastics industry where excellent wear resistance is required.
General:
Thorough hardenability, high tough resistance, high oxidation resistance
Designation
Material designation: SKD11
DIN designation: X153 CrMoV12
ASTM/AISI designation: D2
JIS designation: SKD11
GB desigantion:Cr12Mo1V1
Chemical composition:
Grade |
Standard |
C |
Si |
Mn |
Cr |
Mo |
V |
P,S≤ |
D2 |
ASTM |
1.40-1.60 |
0.10-0.60 |
0.20-0.60 |
11.0-13.0 |
0.70-1.20 |
0.50-1.10 |
0.030 |
1.2379 |
DIN |
1.45-1.60 |
0.10-0.60 |
0.20-0.60 |
11.0-13.0 |
0.70-1.00 |
0.70-1.00 |
0.030 |
Cr12Mo1V1 |
GB |
1.40-1.60 |
≤0.60 |
11.0-13.0 |
0.70-1.20 |
0.50-1.10 |
0.030 |
|
SKD11 |
JIS |
1.40-1.60 |
≤0.40 |
≤0.60 |
11.0-13.0 |
0.80-1.20 |
0.20-0.50 |
0.030 |
Mechanical properties:
Ledeburitic 12% chrome steel, very high resistance against abrasive and adhesive wear due to a high volume of hard carbides in the steel matrix, good toughness, very good dimensional stability, high compressive strength, very good base material for PVD/CVD coating as well as nitriding due to its secondary hardening properties. Similar to AISI D2.
