17-4PH, UNS S17400, 630 precipitation hardening stainless steel sheets / plates / strips / coils
17-4PH is a martensitic precipitation hardening stainless steel that provides an outstanding combination of high strength,
good corrosion resistance, good mechanical properities at temperatures up to 600°F ( 316°c ), good toughness in both base metal and welds, and shorttime , low temperature heat treatments that minimize warpage and scaling. This versatile material is widely used in the aerospace, chemical, petrochemical, food processing, paper and general metalworking industries.
Chemical comosition ( in weight % )
Carbon 0.07 max
Manganese 1.00 max
Phosphorus 0.040 max
Sulfur 0.030 max
Silicon 1.00 max
Chromium 15.00 - 17.50
Nickel 3.00 - 5.00
Copper 3.00 - 5.00
Columbium plus Tantalum 0.15 - 0.45

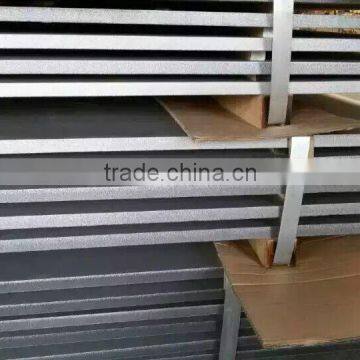

The 17-4PH stainless steel can be supplied in forms of sheets, strips, plates, round bars.
Delivery state
Solution treated
& Aged
H1150
Ultimate Tensile strength: 135 KSI min. ( 930 Mpa min. )
Yield strength: 105 KSI min. ( 725 Mpa min. )
Elongation: 8% min.
Hardness: RC 38 max.
* for special request, please contact us.
