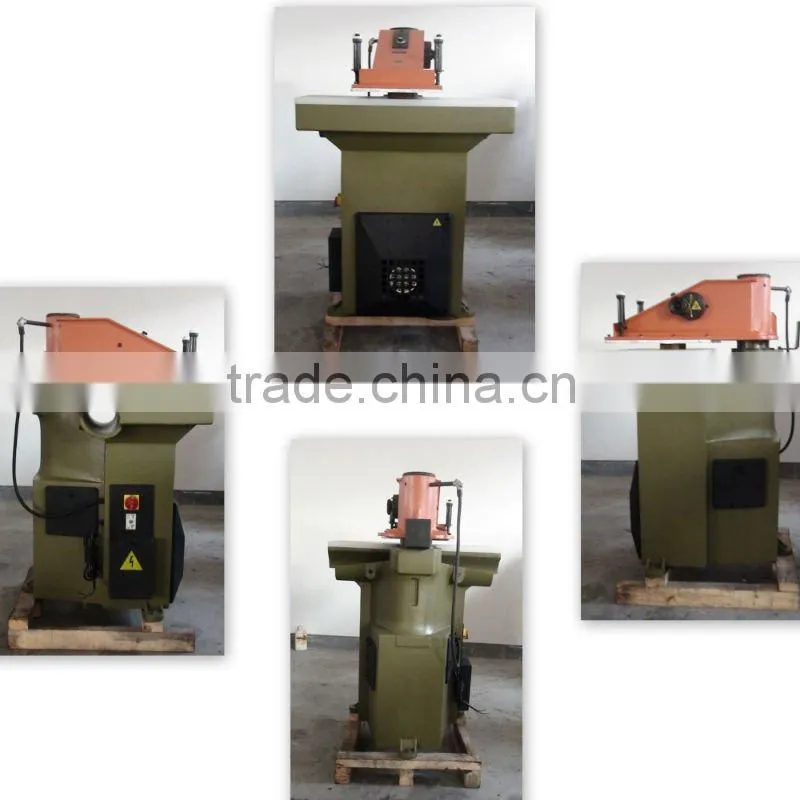

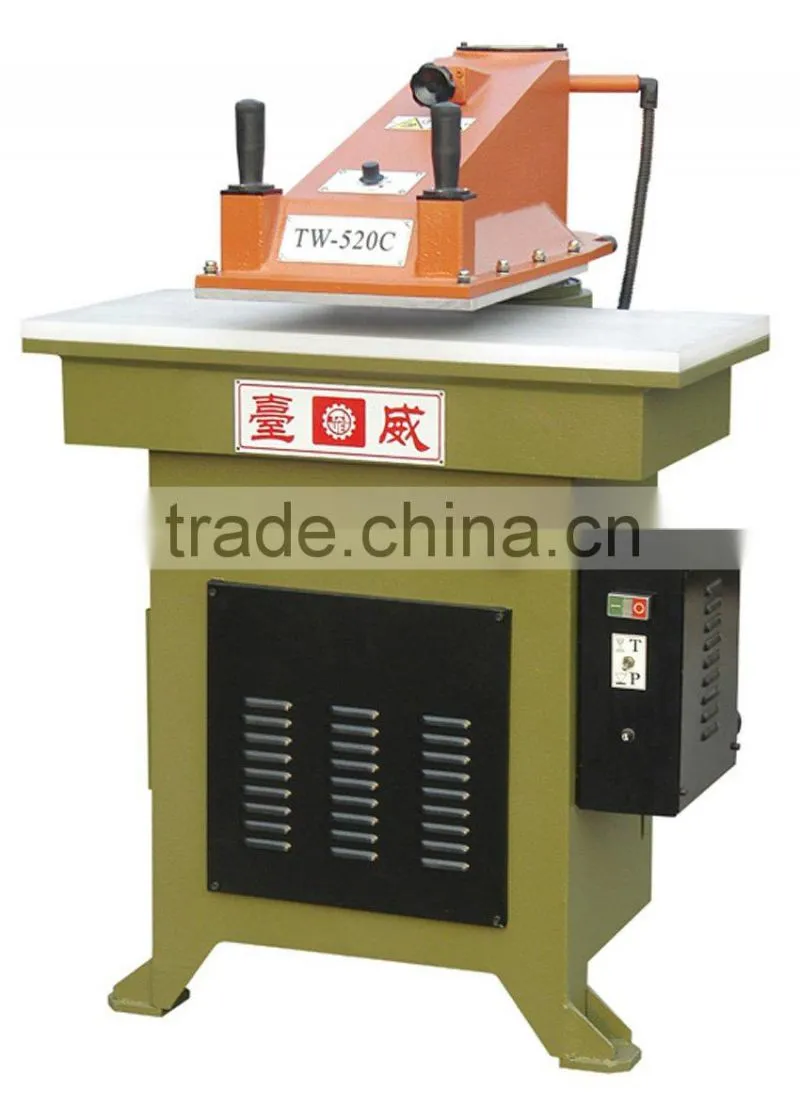

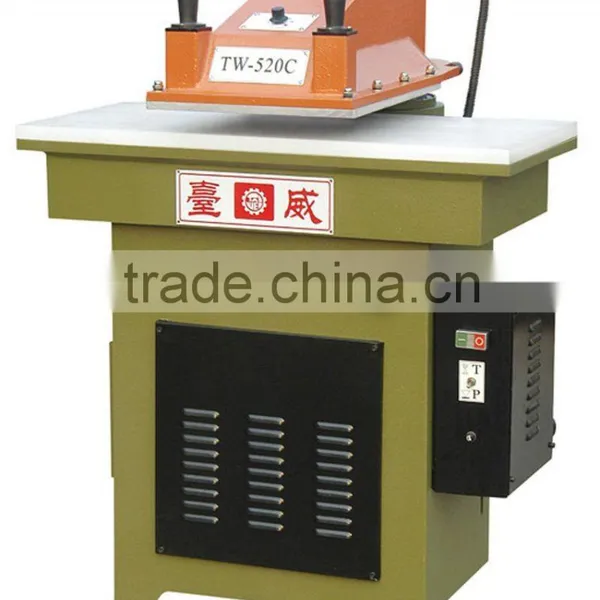

Hydraulic Swing Arm Shoe Clicker/pressing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TAIWEI
Model Number:
TW-520C
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Swing Arm Shoes Cutting MachineNegotiableMOQ: 1 Set -
Hydraulic Swing Arm Cutting MachineNegotiableMOQ: 1 Set
-
Label Cutting Machine/clicking Press With Travel HeadNegotiableMOQ: 1 Unit
-
Punching Machine/Sports Goods MachineNegotiableMOQ: 1 Set
-
PU Foam Hydraulic Cutting Press MachineNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
TAIWEI
Model Number
TW-520C
Specifications
1.maximum cutting power:196KN(20T)2.maximum stroke(mm):80
3.cutting table(mm):900*430
4.arm width(mm):370
USE AND CHARACTERISTICS:
1.automatic stroke end setting-up to use cutting-knives of different heights without any adjustment.(pressure control)
2.use circuit board to adjust the pressure to of oneself biggest,shake arm to descend to press time is adjusted by the electric potentially machine.(electronic control)so can use a smaller knife mold to cut to break normally.
3. Press switch can descend the arm, so operation is very safe.
| model | TW-520C |
| max cutting power | 196KN(20T) |
| cutting table | 900*430mm |
| motor power | 1hp |
| arm width | 370mm |
| max stroke | 80mm |
| machine dimensions | 900*950*h1300mm |
| weight | 570kg |
| size sea packing | 1050*1085*h1500mm |
| G.W. | 640kg |
