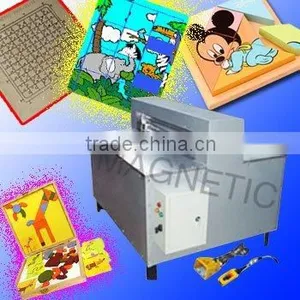

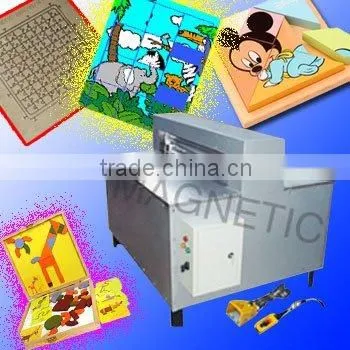

Help CenterDIY Jigsaw Puzzle Making Machine MDK1300
Related Products
-
Jigsaw Puzzle Cutting Machine--free Knife Board DesignUS$ 5,000 - 8,800MOQ: 1 Piece -
Electric Button Switch Puzzle MachineUS$ 640 - 6,910MOQ: 1 Set
-
Jagsaw Puzzle MachineUS$ 640 - 6,910MOQ: 1 Set
-
Electric Button Switch Puzzle MachineUS$ 640 - 6,910MOQ: 1 Set
-
Hot Sale Electric Button Switch Puzzle MachineUS$ 640 - 6,910MOQ: 1 Set
Specifications
jigsaw puzzle making machinepuzzle making machine,puzzle machine
Switzerland knife die
1 year warranty
CE certification
jigsaw puzzle making machine
puzzle making machine
puzzle machine
puzzle cutting machine
puzzle maker
puzzle machine
Features of Type 1-1:
1. Virtual Axis length: 1100mm (Max. puzzle making width: 800mm)
2. Max. Puzzle Pieces in Width: 32 pieces
3. Max. Pressing Puzzle Size and Pieces: 800×1150mm (3040 pieces)
4. Rev of Axes: 19 revs per minute (This is the max. rev among same type machines in domestic market)
5. Settings: Assembled positive, negative, pause and lash-up switches in one machine.
6. Drive Power: Two axes with same gear turning (Double dynamical axes. Once open the machine, the two axes will rotate), Pressure is 1.1 times of ordinary puzzle machines. (Ordinary puzzle machine: One axis is dynamical axis, the other is passive, and it needs to be derived to rotate when pressing puzzles.)
7,Positive and negative turn switch: If the knife board go in deflection or is blocked in ordinary operation, for traditional puzzle machines, you need to disconnect the axes to take the knife board out. While with our machine, you can use negative turn function to withdraw the knife board. This is time saving during processing, and can’t cause the unequal pressure in two ends.
8. Inside: Scientific resistance structure, protected by antirust lacquer, increase insulation, has grounding, and spring mat in vibrate position.
9. Appearance: Stainless steel operation board, PVC protecting board.
10. Power Supply: control switch cubicle
11. Voltage: 380V/220V/110V
12. Power: 2200W (Three phases electric machine)
13. Fitting Bag: Present common use fittings for free.
B. Features for Type 2-1/2-2/2-3:
1. Virtual Axis length: 1150mm (Max. puzzle making width: 990mm)
2. Max. Puzzle Pieces in Width: 43 pieces
3. Max. Pressing Puzzle Size and Pieces: 990×1150mm (4300 pieces)
4. Rev of Axes: 19 revs per minute (This is the max. rev among same type machines in domestic market)
5. Settings: Foot switch (1.5m), positive and negative switch (ordinary), and lash-up switch.
6. Drive Power: Two axes with same gear turning (Double dynamical axes. Once open the machine, the two axes will rotate), Pressure is 1.1 times of ordinary puzzle machines. (Ordinary puzzle machine: One axis is dynamical axis, the other is passive, it need to be derived to rotate when pressing puzzles.)
7. Inside: Scientific resistance structure, protected by antirust lacquer, increase insulation, has grounding, and spring mat in vibrate position.
8. Appearance: Stainless steel operation board, PVC protecting board.
9. Power Supply: control switch cubicle
10. Voltage: 380V/220V/110V
11. Power: 2200W (Three phases electric machine)
12. Fitting Bag: Present common use fittings for free.
Magnetic--Feel New Color of Life!
Send Inquiry to This Supplier
