Specifications
PVC pipe extrusion line1.pipe dia.:16mm--630mm
2.turn key project for user
PVC pipe extrusion line /pvc pipe machine/pipe making machine
The application of PVC pipe extrusion line :
1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Characteristic- PVC pipe extrusion line :
1. PVC pipe extrusion line is our main product and have been exported to many different countries.
Under our technical supports and formula of material helping, many customers save their cost and take a good
occupancy in their local market.
2. PVC pipe extrusion line is mainly used in the manufacture of plastic PVC pipes with various
diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying,
drain water etc
3. PVC pipe extrusion line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off,
cutter and stake etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and
haul-off motors adopt high-quality products.
4. PVC pipe extrusion line is of reliable performance and high production efficiency. We can also manufacture
special pipe production lines, e. g. Spiral silencing pipe core foaming pipe according to your requirements.
Configuration reference - PVC pipe extrusion line
Item |
component |
quantity |
1. |
conical twin screw extruder |
1set |
2. |
mould |
whole 1set |
3. |
vacuum calibration tank |
1set |
4. |
vacuum spraying tank |
1set |
5. |
hauling machine |
1set |
6. |
cutter |
1set |
7. |
stacker |
1set |
Technical parameter- PVC pipe extrusion line
| Model number | GF016/63 | GF-20/110 | GF-50/160 | GF-75/250 | GF-110/315 | GF-200/450 | GF-315/630 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm |
| Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h |
| Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min |
| Extruder model | SJSZ-50/105 | SJSZ-50/105 | SJSZ-55/110 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 | SJSZ-92/188 |
| Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm |
| Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m |
Ø Quality Control-- PVC pipe extrusion line :
- We have technical, engineer team design the sample machinery before enter into market
- Production QC team ensure the machine manufacturing quality
- We will running every machine after finished before shipment
- Optional choose by client running the machinery by material

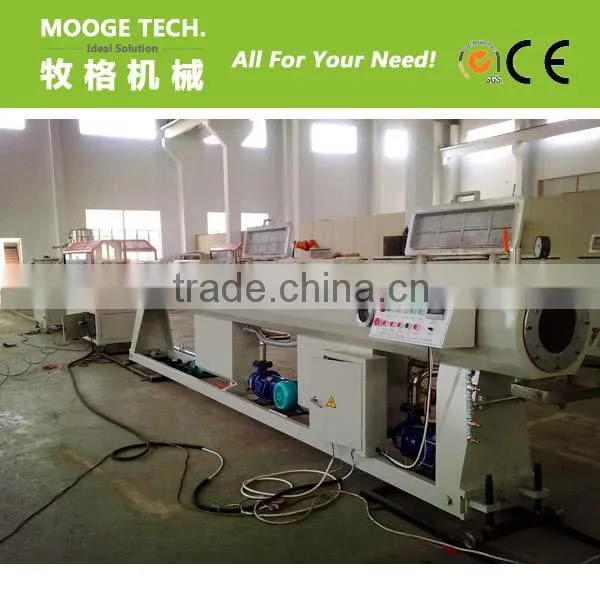

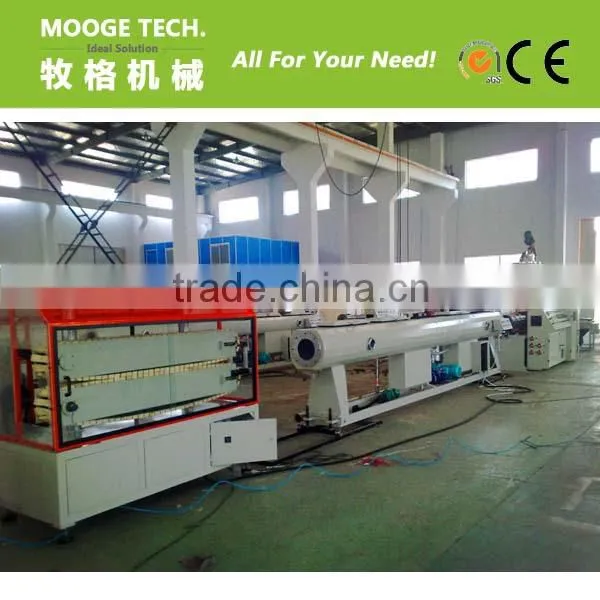

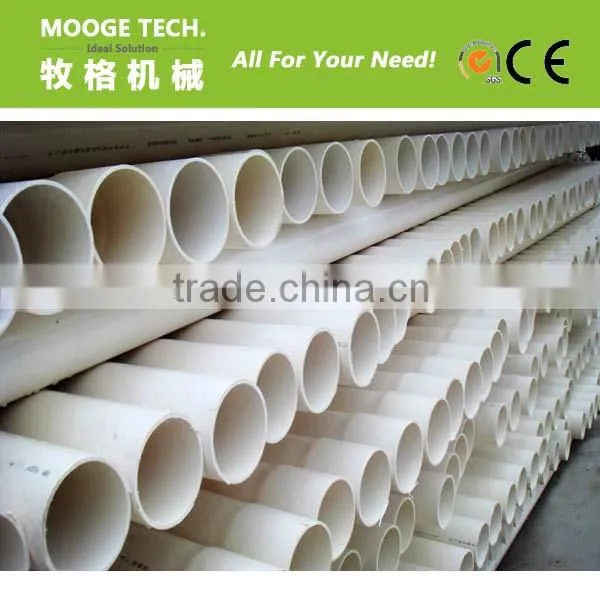

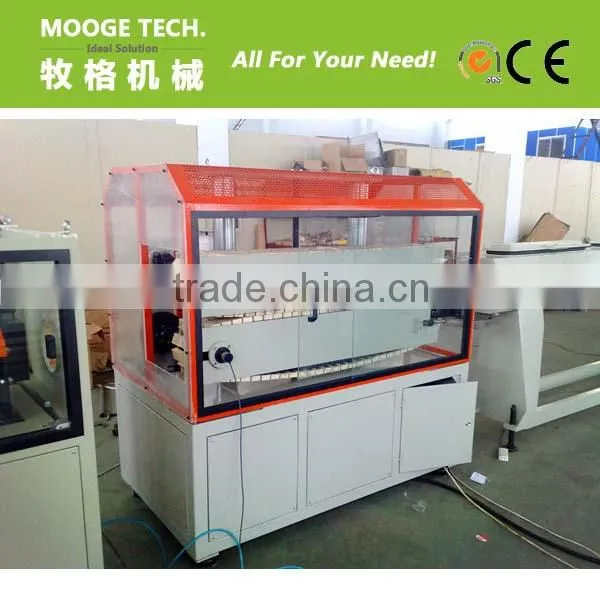

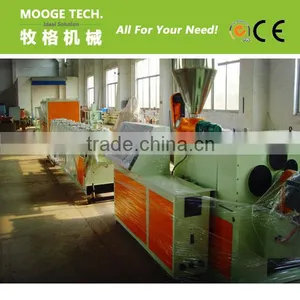

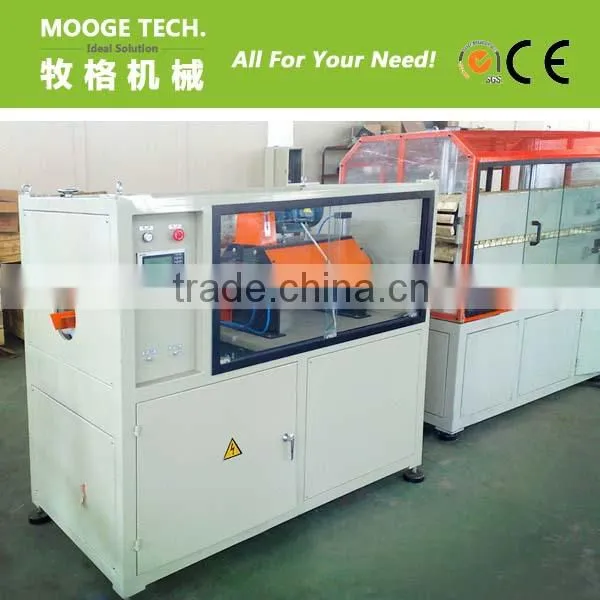

Ø Picture -- PVC pipe extrusion line :
