YEPO BEARING
Spherical Bearings Brief Introduction
Spherical Roller Bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for spherical roller bearings. Spherical ball bearings are available with either a cylindrical or tapered bore. Bearings with a tapered bore can be mounted directly on a shaft or on an adapter or withdrawal sleeve.
spherical ball bearing series--double row 1200 series, 1300 series, 2200 series, 2300 series
Spherical roller bearing series
--Single row series: 21300 series
--Double row series: 22200 series, 22300 series,23000 series, 23100 series, 23200 series, 23300 series, 23900 series, 24000 series, 24100 series,
1308 Self-aligning ball bearings data sheet for your reference:

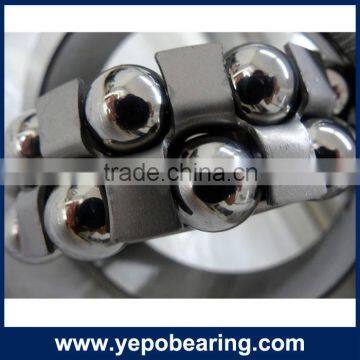

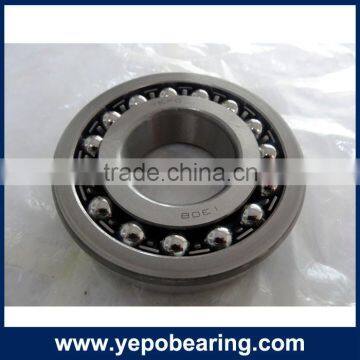

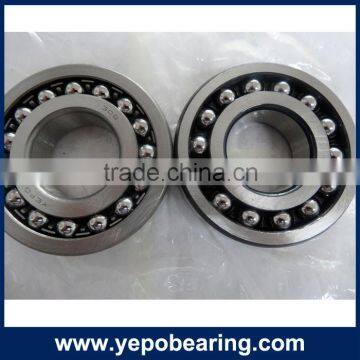

Product Show
Package
1, For heavy bearing packages we use wooden case packing;
2, For light bearing packages we use industry packing.
Spherical Ball bearings Size d*D*B , bearing No. , bearing weight
| Bearing No. |
d | D | B | Weight Kg |
| 1200 | 17 | 40 | 12 | 0.034 |
| 1201 | 15 | 35 | 11 | 0.04 |
| 1202 | 12 | 32 | 10 | 0.049 |
| 1203 | 10 | 30 | 9 | 0.073 |
| 1204 | 20 | 47 | 14 | 0.12 |
| 1205 | 25 | 52 | 15 | 0.14 |
| 1206 | 30 | 62 | 16 | 0.22 |
| 1207 | 35 | 72 | 17 | 0.32 |
| 1208 | 40 | 80 | 18 | 0.415 |
| 1209 | 45 | 85 | 19 | 0.465 |
| 1210 | 50 | 90 | 20 | 0.525 |
| 1211 | 55 | 100 | 21 | 0.705 |
| 1212 | 60 | 110 | 22 | 0.9 |
| 1213 | 65 | 120 | 23 | 1.15 |
| 1214 | 70 | 125 | 24 | 1.26 |
| 1215 | 75 | 130 | 25 | 1.41 |
| 1216 | 80 | 140 | 26 | 1.73 |
| 1217 | 85 | 150 | 28 | 2.09 |
| 1218 | 90 | 160 | 30 | 2.55 |
| 1219 | 95 | 170 | 32 | 3.21 |
| 1220 | 100 | 180 | 34 | 3.82 |
| 1221 | … | … | … | … |
| 1222 | 110 | 200 | 38 | 5.33 |
| 1223 | … | … | … | … |
| 1224 | 120 | 215 | 42 | 6.75 |
| 1225 | … | … | … | … |
| 1226 | 130 | 230 | 46 | 8.3 |
| Bearing No. |
d | D | B | Weight Kg |
| 1300 | 17 | 47 | 14 | 0.058 |
| 1301 | 15 | 42 | 13 | 0.067 |
| 1302 | 12 | 37 | 12 | 0.094 |
| 1303 | 10 | 35 | 11 | 0.12 |
| 1304 | 20 | 52 | 15 | 0.165 |
| 1305 | 25 | 62 | 17 | 0.255 |
| 1306 | 30 | 72 | 19 | 0.385 |
| 1307 | 35 | 80 | 21 | 0.51 |
| 1308 | 40 | 90 | 23 | 0.715 |
| 1309 | 45 | 100 | 25 | 0.955 |
| 1310 | 50 | 110 | 27 | 1.25 |
| 1311 | 55 | 120 | 29 | 1.6 |
| 1312 | 60 | 130 | 31 | 2.03 |
| 1313 | 65 | 140 | 33 | 2.54 |
| 1314 | … | … | … | … |
| 1315 | 75 | 160 | 37 | 3.65 |
| 1316 | 80 | 170 | 39 | 4.31 |
| 1317 | 85 | 180 | 41 | 5.13 |
| 1318 | 90 | 190 | 43 | 5.94 |
| 1319 | 95 | 200 | 45 | 6.84 |
| 1320 | 100 | 215 | 47 | 8.46 |
| 1321 | … | … | … | … |
| 1322 | 110 | 240 | 50 | 12 |
| Bearing No. |
d | D | B | weight Kg |
| 2200 | 10 | 30 | 14 | 0.047 |
| 2201 | 12 | 32 | 14 | 0.053 |
| 2202 | 15 | 35 | 14 | 0.06 |
| 2203 | 17 | 40 | 16 | 0.088 |
| 2204 | 20 | 47 | 18 | 0.14 |
| 2205 | 25 | 52 | 18 | 0.163 |
| 2206 | 30 | 62 | 20 | 0.26 |
| 2207 | 35 | 72 | 23 | 0.403 |
| 2208 | 40 | 80 | 23 | 0.505 |
| 2209 | 45 | 85 | 23 | 0.545 |
| 2210 | 50 | 90 | 23 | 0.59 |
| 2211 | 55 | 100 | 25 | 0.81 |
| 2212 | 60 | 110 | 28 | 1.09 |
| 2213 | 65 | 120 | 31 | 1.46 |
| 2214 | 70 | 125 | 31 | 1.52 |
| 2215 | 75 | 130 | 31 | 1.62 |
| 2216 | 80 | 140 | 33 | 2.01 |
| 2217 | 85 | 150 | 36 | 2.52 |
| 2218 | 90 | 160 | 40 | 3.43 |
| 2219 | 95 | 170 | 43 | 4.18 |
| 2220 | 100 | 180 | 46 | 4.98 |
| Bearing No. |
d | D | B | Weight Kg |
| 2300 | 10 | 35 | 17 | 0.083 |
| 2301 | 12 | 37 | 17 | 0.095 |
| 2302 | 15 | 42 | 17 | 0.114 |
| 2303 | 17 | 47 | 19 | 0.158 |
| 2304 | 20 | 52 | 21 | 0.209 |
| 2305 | 25 | 62 | 24 | 0.335 |
| 2306 | 30 | 72 | 27 | 0.5 |
| 2307 | 35 | 80 | 31 | 0.675 |
| 2308 | 40 | 90 | 33 | 0.925 |
| 2309 | 45 | 100 | 36 | 1.23 |
| 2310 | 50 | 110 | 40 | 1.64 |
| 2311 | 55 | 120 | 43 | 2.1 |
| 2312 | 60 | 130 | 46 | 2.6 |
| 2313 | 65 | 140 | 48 | 3.23 |
| 2314 | 70 | 150 | 51 | 4.25 |
| 2315 | 75 | 160 | 55 | 5.17 |
| 2316 | 80 | 170 | 58 | 6.12 |
| 2317 | 85 | 180 | 60 | 7.17 |
| 2318 | 90 | 190 | 64 | 8.48 |
| 2319 | 95 | 200 | 67 | 9.8 |
| 2320 | 100 | 215 | 73 | 12.5 |
Q. How to place an order?
A. Send us enquiry directly at the bottom, give us the bearing model with quanity, Brand,material, payments way,or other special requirements you want.
Q. Can I get a sample order?
A. Yes, you can. It depends on the total quantity and price.
Q. What is the smallest order can you accept?
A. The total amount can not below USD500.00 not including shipping fee.
Q. What is the delivery payments ?
A. EXW, FOB, CIF, CFR , you can choose.
Q. What's the shippping way ?
A. Sea transportation, DHL, TNT, UPS,FEDEX, as per your requirements.
Q. What is the lead time?
A. 5-7 days for small order in stock; 15-30 days for large order.
