Help CenterChina High Quality Linear Bushing (YEPO LMF25 LUU)
Related Products
-
LMF Series Flanged Type Linear Bushing BearingUS$ 0.2 - 50MOQ: 50 Pieces -
LM Series Linear Bearing Linear Motion Bearing Linear BushingUS$ 0.2 - 50MOQ: 50 Pieces
-
LM8UU LM10UU LM12UU LM13UU LM16UU LM20UU Linear Bushing BearingUS$ 0.2 - 50MOQ: 50 Pieces
-
LM30UU Linear Bushing BearingUS$ 0.2 - 50MOQ: 50 Pieces
-
LM30UU Linear Bearing/linear BushingUS$ 0.2 - 50MOQ: 50 Pieces
Specifications
YEPO LMF25LUU Linear Bushing1.Best China quality
2.Prompt delivery
3.Rich experience
4.Accept OEM
China High Quality Linear Bushing (YEPO LMF25LUU)
Linear Bushis a linear guide used in combination with a LM shaft that has a cylindrical shaft. This product makes linear movements with a minimum of frictional resistance to provide highly accurate and supple movement.
Characteristics
l Small light weight.
l Many types available.
l Mounted easily.
l Long working time.
Application
Mainly used in linear movement machine .
Linear Bearing and Guide Available Series
Linear bushing: LM. LM-GA, LM-NG, LME, LM-L Series
Linear bushing flanged type:LMF, LMF-M, LMK, LMK-M, LMF-L, LMF-ML, LMK-L, LMK-ML, LMH, LMH-L Series
Linear bushing: SC, SL, SH, SH-L series
Brief Introduction
Models number |
LMF25LUU |
Brand |
YEPO |
Cage material |
Nylon . Steel . Brass |
Quality standard |
ISO9001:2000 standard |
Service |
OEM acceptable |
Delivery date |
5-7 days for stock, 20-30 days for large |
Price terms |
FOB, EXW, CIF,CRF |
Payment terms |
A:100%TT B: 30% T/T , 70% before delivery C Western union, Money Gram D Cash |
Call |
0086-13267040380 |

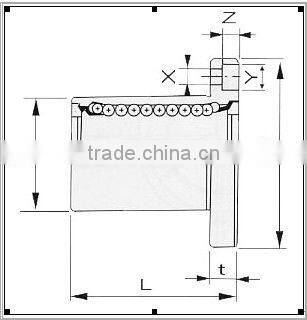

Drawing and specification
linear bush bearing technology data
| Model No. | Main dimensions | Basic load rating | ||||||
| Ball rows | Inscribed bore diameter | Outer diameter | Length | Flange diameter | Dynamic rating | Static rating | Mass | |
| dr | D | L | D1 | C | C0 | |||
| mm | mm | mm | mm | N | N | G | ||
| LMF 6 | 4 | 6 | 12 | 19 | 28 | 206 | 265 | 26.5 |
| LMF 8S | 4 | 8 | 15 | 17 | 32 | 176 | 225 | 34 |
| LMF 8 | 4 | 8 | 15 | 24 | 32 | 265 | 402 | 40 |
| LMF 10 | 4 | 10 | 19 | 29 | 39 | 373 | 549 | 78 |
| LMF 12 | 4 | 12 | 21 | 30 | 42 | 412 | 598 | 76 |
| LMF 13 | 4 | 13 | 23 | 32 | 43 | 510 | 775 | 94 |
| LMF 16 | 5 | 16 | 28 | 37 | 48 | 775 | 1180 | 134 |
| LMF 20 | 5 | 20 | 32 | 42 | 54 | 863 | 1370 | 180 |
| LMF 25 | 6 | 25 | 40 | 59 | 62 | 980 | 1570 | 340 |
| LMF 30 | 6 | 30 | 45 | 64 | 74 | 1570 | 2750 | 460 |
| LMF 35 | 6 | 35 | 52 | 70 | 82 | 1670 | 3140 | 795 |
| LMF 40 | 6 | 40 | 60 | 80 | 96 | 2160 | 4020 | 1054 |
| LMF 50 | 6 | 50 | 80 | 100 | 116 | 3820 | 7940 | 2200 |
| LMF 60 | 6 | 60 | 90 | 110 | 134 | 4710 | 10000 | 2960 |
Real Pictures
Packing way
1, For heavy bearing packages we use wooden case packing
2, For light bearing packages we use industry packing
YEPO available series of bearing
u Deep groove ball bearing
u Angular contact bal bearing
u Spherical roller bearing
u Tapered roller bearing
u Pillow block bearing
u Thrust ball and thrust roller bearing
u Spherical ball and roller bearing
u Rod ends bearing
u Linear bearing and linear guide
u Needle roller bearing
