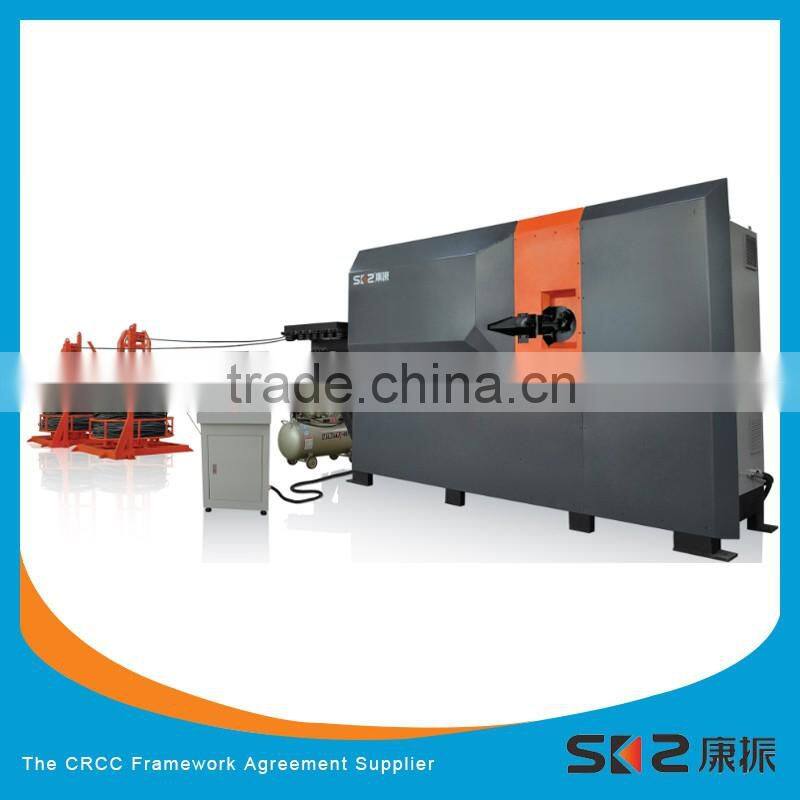

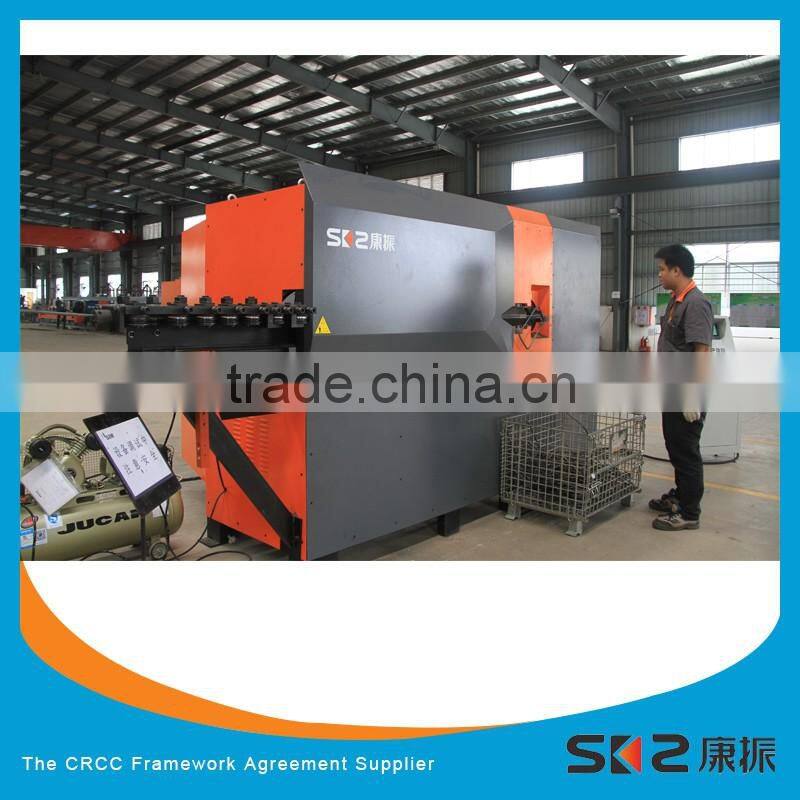

5-12mm CNC automatic reinforced coiled wire rebar hoop bending stirrup bender machine/CNC Steel Bar Stirrup Bender
Introduction
KZ12B CNC Full Automatic Steel Rebar Hoop Bending Machine, controlling with malfunction alarm, PLC, servo motor and electric components of Japan brand , is capable of providing our products by the most accurate cutting , straightening, bending and effect, which is widespread used in high speed way, bridge, real estate, reinforcing steel processing factories area, etc.
Features
1. Full automatic stirrup feeding and bending system ( CNC ).
2.Moveable air compressor design, to ensure better cooling effect, easy transportation and installation
3. High power feeding motor to ensure bending bar accuracy.

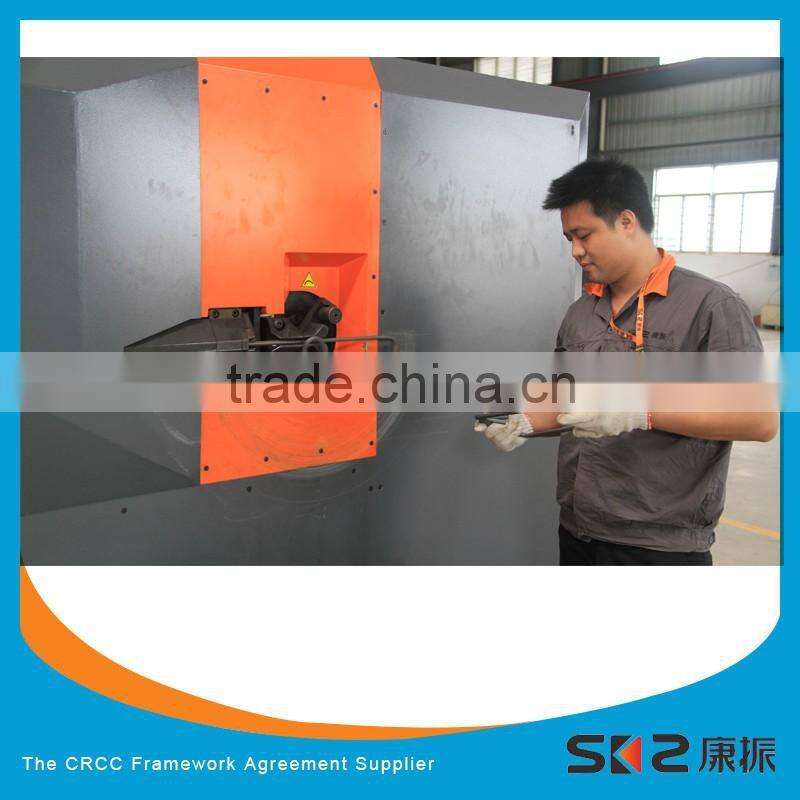

4.Bending arm driven by servo motor can protrude or draw back while bending different angles, whshen cutting system receives signal,
5. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs

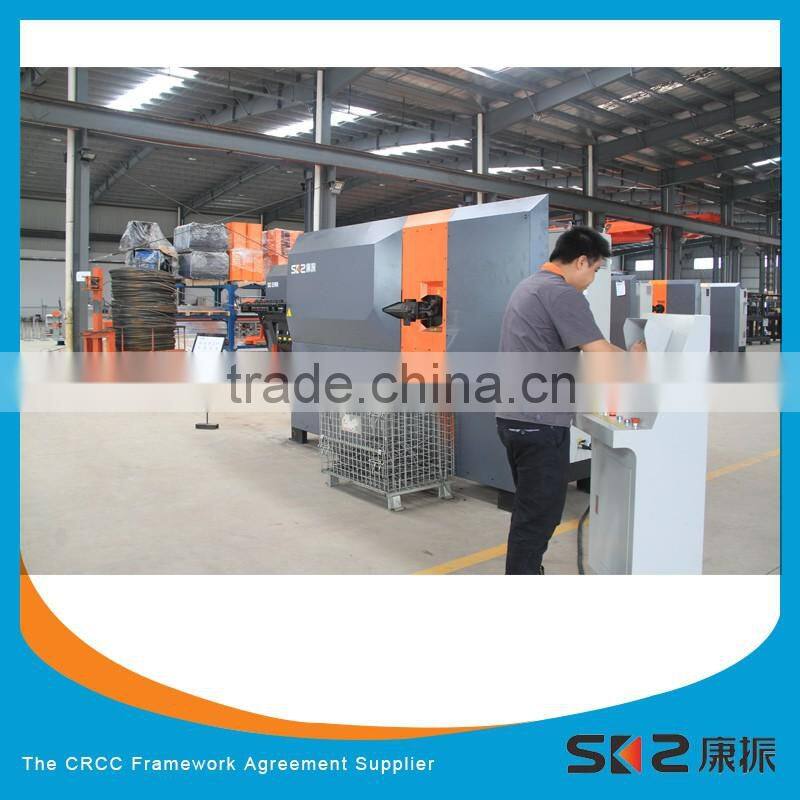

6. Touch-screen console, easy to operate, more fasteasy adjustment and maintenance, and more security and fast.
Parameters
Model |
KZ12B |
Single Strand Diameter(mm) |
I φ5-12 III Grade:φ5-10 |
Double Strand Diameter(mm) |
I φ5-10 III Grade:φ5-8 |
Max Bending Angle (°) |
180 |
Max Pulling Speed (mm/s) |
1200 |
Max Bending Speed (°/s) |
1000 |
Bending Direction |
Bi-direction |
Length Tolerance (mm) |
±2 |
Bending Tolerance (°) |
±1 |
Single Strand Max Production capacity(hour) |
900(standard size) |
Double Strand Max Production Capacity(hour) |
1800(standard size) |
Equipment Sizes (mm) L*W*H |
4000*1080*1975 |
Installed Power(kw) |
30 |
Weight(kg) |
2000 |
Working (℃) |
-5-40 |
Cylinder Pressure(Mpa) |
≥0.6 |
