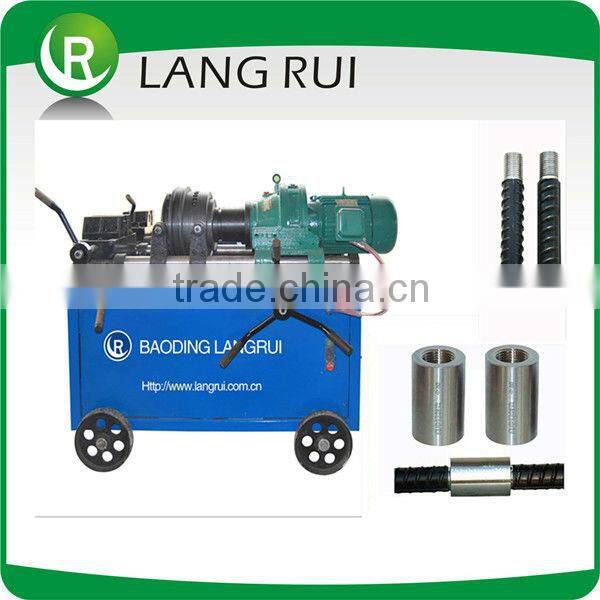

First Class Bar Threading Machine LBG-40E

Name: First Class Bar Threading Machine LBG-40E
Brand: Langrui
SKU: 115778213
Availability: InStock

US$ 1,000 - 2,100 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Langrui

Model Number:

rebar threading rolling machine LBG-40E

Hebei Langrui Environmental Engineering Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Langrui

Model Number rebar threading rolling machine LBG-40E

After-sales Service Provided Engineers available to service machinery overseas

Specifications

first class bar threading machine LBG-40E
1.14-40mm
2.Voltage:380V 50Hz
3.thread pitch:2.5/3
4.Max.length of thread: 100

Production Description

Name: first class bar threading machine LBG-40E
LBG-40E is equipment which mainly used to process the ribbed rebar to make parallel thread screw
It can process the ribbed rebar of Φ 14-Φ 40mm,grade HRB335and HRB400
LBG-40E rebar thread rolling machine can complete the screw thread making in one time loading which contains rib peeling rolling and stamping
The operation principle of rebar thread rolling machine, first use cutter to cut the rib ,then use rolling wheel to roll into parallel thread screw It can process the ribbed rebar of Φ 14-Φ 40mm. operation is simple ,and Easy construction

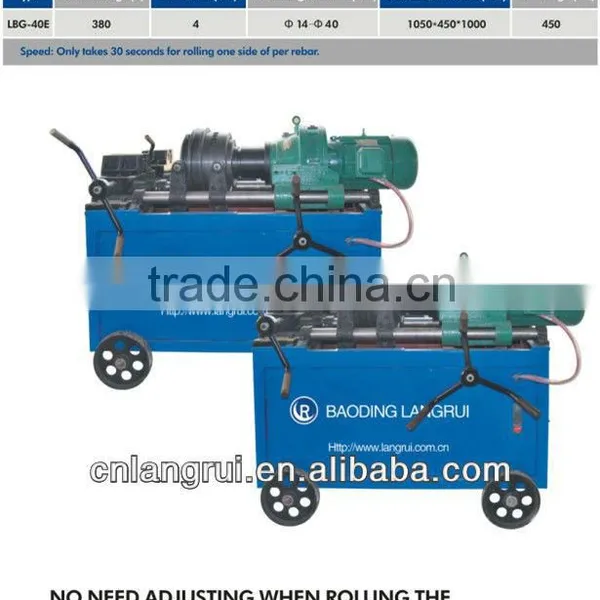

Specification

SPEC.LIST FOR THREAD ROLLING MACHINE
Type	Power Voltage (V)	Power Rate (Kw)	Max.Thread length(mm)	Net Weight (KG)	Thread Pitch	Machining Diameter (mm)	Overall Dimensions (mm)
40E	380V50Hz	4	100	500	2.5/3.0	Φ14-Φ40	1050×440×1000

	Dia. of Rebar	Φ14-Φ22	Φ25-Φ32	Φ36-Φ40
	Outer Dia. Of Threading Roller	60mm	60mm	56mm
	Outer Dia. Of Threading Roller	60mm	60mm	56mm
There are 3 sizes:	Length	45mm	45mm	45mm
Size Φ16-Φ22	Inner Diameter	30mm	30mm	30mm
Size Φ25-Φ32	Thread Pitch	2.5mm	3mm	3mm
Size Φ36-Φ40	Material	Gr12Mov
