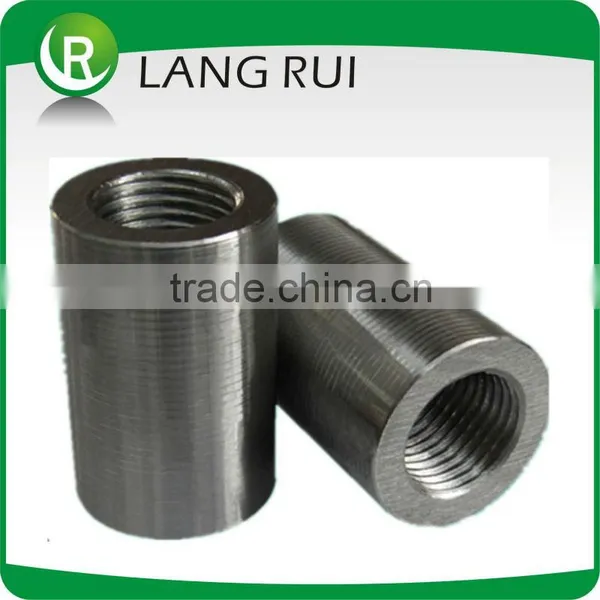

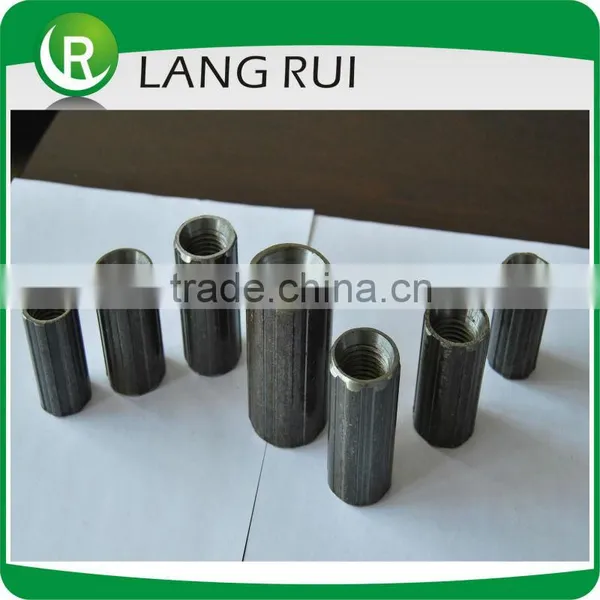

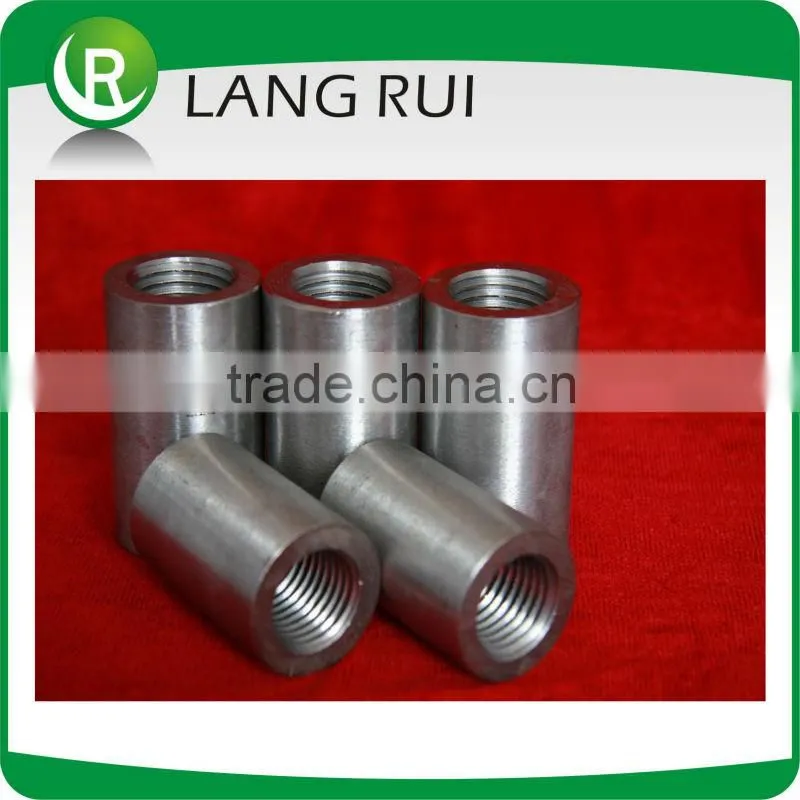

45# Steel Rebar Coupler Rebar Connector for Construction
Specification
The Rebar Coupler is used for Mechanical Bar Splicing(14mm-40mm) in construction with high strength.
Basic Information
1.Size: 14mm-40mm.
2.Raw Material:45# high-quality carbon structural steel.
3.Type: Standard Type, Left-Handed&Right-Handed Type, Reducing Type.
4.Tensile strength could reach 110% of parent material.
5.Suitable Rebar: HRB335,HRB400,HRB500 and Equivalent Rebars.
Relate Test
1.Tensile Strength=1.1*Tensile Strength of Rebar (Usually more than 600Mpa)
2.Fatigue Test: After 2 million times of fatigue strength test, connection is in good condition
Product Advantage
- The raw material is 45# high-quality carbon structural steel.
- Strict quality control. self-inspection, exchange inspection, sample inspection , 100% inspection etc. reject rate lower than 0.6%.
- Tensile strength could reach 800 to 900Mpa. Normal steel,for example, HRB335,the tensile strength reaches 500.5Mpa is OK.
- Our rebar couplers are suitable for steels of different countries.
- We could pack the goods according to customer's special request.
- Simple to operate.
Products Technical Parameters:
Size |
D14 |
D16 |
D18 |
D20 |
D22 |
D25 |
D28 |
D32 |
D36 |
D40 |
OD(±0.5mm) |
22 |
25 |
28 |
30 |
34 |
38 |
42 |
48 |
55 |
59 |
Length(+2mm) |
38 |
43 |
48 |
53 |
58 |
63 |
68 |
80 |
83 |
88 |
Thread Pitch |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
3.0 |
3.0 |
3.0 |
3.5 |
3.5 |
Thread Angle |
75° |
75° |
75° |
75° |
75° |
75° |
75° |
75° |
75° |
75° |
G/W(KGS) |
0.068 |
0.099 |
0.125 |
0.180 |
0.205 |
0.317 |
0.399 |
0.640 |
0.900 |
1.099 |
Details show |
Production Process:
packing inspection:

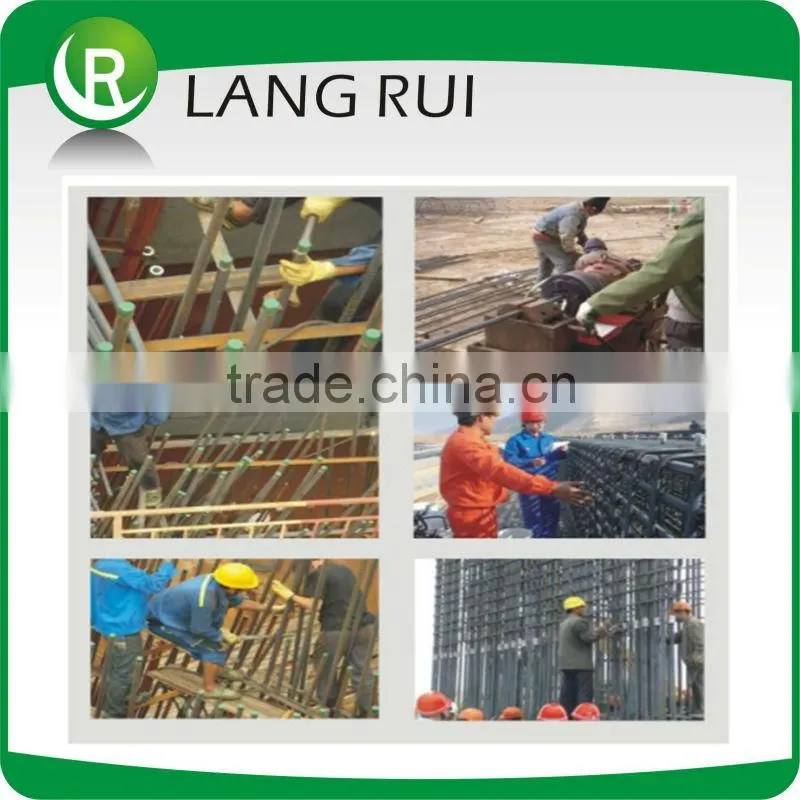

construction site :
Application | |
|
