Specifications
1.H fin tube2 carbon steel/SS material
3. Single H or double H
4.100,000meters per week
1.Name:

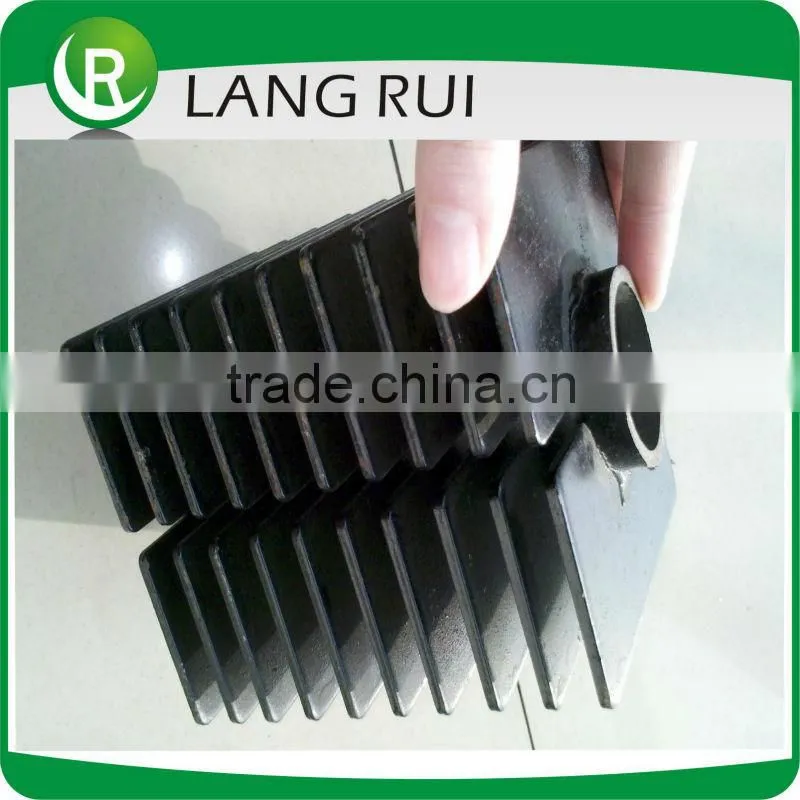

H fin tube for economizer
MORE ENERGY-EFFICIENT AND ENVIRONMENTAL!
WE ARE TRUSTWORTHY! WAITING FOR YOUR KIND REPLY!
Supplied H Type Fin Tube Specification
Item |
Symbol |
Unit |
Parameter Value |
Bare Tube OD |
Φ |
mm |
32-51 |
Bare Tube Thickness |
s |
mm |
2.5-6 |
Bare Tube Length |
L |
mm |
≤11500 |
Fin Length |
Lf |
mm |
≤10500 |
Fin Height |
Hf |
mm |
60-140 |
Fin Width |
β |
mm |
60-140 |
Fin Thickness |
Sf |
mm |
2.0-4.0 |
Fin Pitch |
T |
mm |
12.5-30 |
H Fin Space |
b |
mm |
5-12 |
Special Material
Tube |
20G SA210C |
Φ32-Φ51 |
Fin |
Q235 |
Δ2-3 |
Tile Type Anti-abrasion Hood |
1Cr6SiMo |
Δ3 |
Comb Type Anti-abrasion Plate |
1Cr18Ni9Ti |
Δ2 |
Hanging Plate |
12cR1MoV |
Δ=16 |
Baffle |
12Cr1MoV |
Δ=8 |

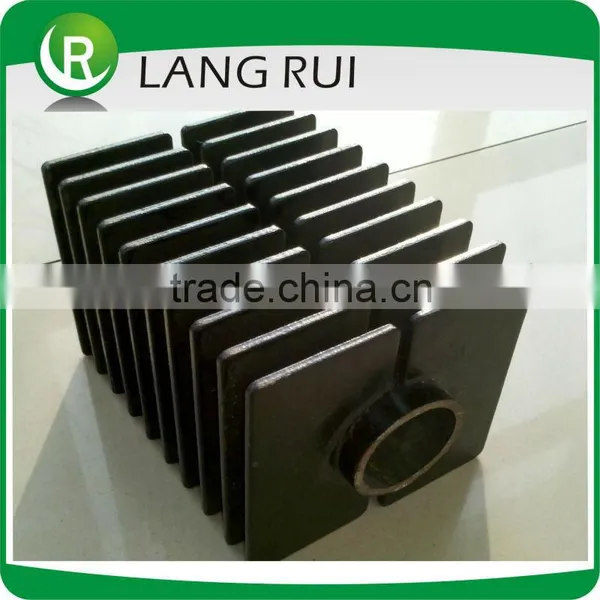

H type finned tube, square fin tube.
It is a kind of boiler parts, to have two steel circular symmetry to be welded on fluorescent tubes to form fins positive shape much like letter "H", so called H-fin tube.
2.Principle:
H economizer two rectangular fin, similar to a square, its edge length for the fluorescent tubes of 2-fold, an expansion of the heating surface.
3.
H economizer flash resistance welding processes used, the welding seam after the high rate of fusion, weld tensile strength, and has good thermal conductivity.
H economizer can also manufacture dual tube "double H" type fin tubes, its rigid structure, and can be applied to a longer tube row occasion.
4.Performance characteristics:
(1) Excellent anti-wear performance
(2) Less fouling
(3) Compact space
(4) Welded Joints less
(5) Stability
5.Applying scope
Widely used in utility boilers, industrial boilers, marine power, such as the tail of heat exchanger components.
