Specifications
Heat Transfer Tube Pipe1.Application : boiler economizer
2.Material : carbon steel-aluminium
3.MOQ:500m
1. Heat Transfer Tube Pipe
2. Production range
Bare pipe (OD):25mm-165mm
Bare pipe length (L):1-12m
Fin spacing (t):5-30mm
Fin thick (Sn):0.6-3.0mm
Fin height (hf): general no more than the radius of bare pipe(5-30mm)
3. High technology, Boiler economizer air exchanger new air heater ,heat transfer area is 8 times than the light tube, extruded heat exchanger parts, lower cost, reasonable price, much more advanced than the other heat exchangers finned tube.
4. Our main products is single/bimetallic metal fin tube for heaters with carbon steel/stainless steel/copper/aluminum welded fin, and the type of tubes are welded or seamless.
5. Different kinds of Boiler economizer air exchanger new air heater can be developed and designed according to your requirements, finning type including High frequency welding / Extruded / L-foot / H type / Embedded etc.
6. Weld able material: carbon steel, corrosion resistant steel, stainless steel, alloy steel and aluminum&copper etc.
7. Applied range of the carbon fin / stainless steel fin tube products: Bolier economizer/ Power plant waste bolier/Petrochemical engineering and varioue types pof heat exchangers.
8. Top quality, competitive price, fast delivery, excellent service
MORE ENERGY-EFFICIENT AND ENVIRONMENTAL!
WE ARE TRUST WORTHY! WAITING FOR YOUR EARLY REPLY!
|
Tube Detail |
Material |
|
OD |
≥16mm |
|
THK |
2-8mm |
|
Long |
0-12m or as request |
|
|
Fin Detail
|
Material |
1060, 6063. |
High |
5-30mm, less than the radius of the base tube. |
|
OD |
20-70mm. |
|
Pitch |
0-8mm, generally 2.5-5.0mm. |
|
Thk |
0.35-0.5mm. |
|
Application |
Air cooling unit ,Product coolers - gas, Heat exchangers ,chemicals, petrochemicals, oil etc. |
|

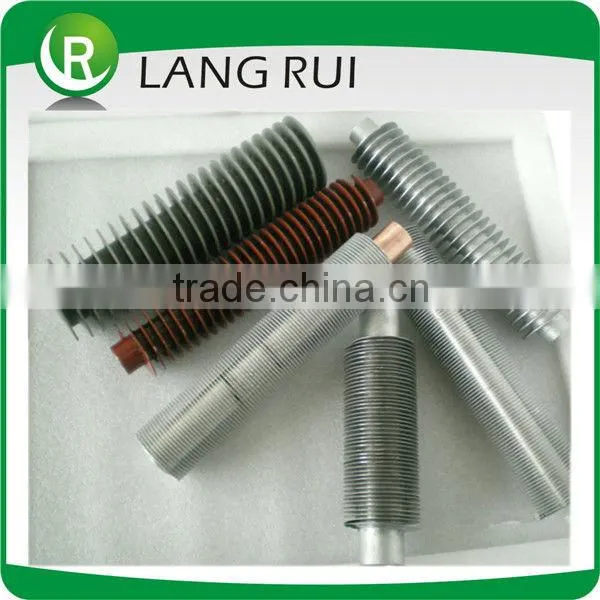

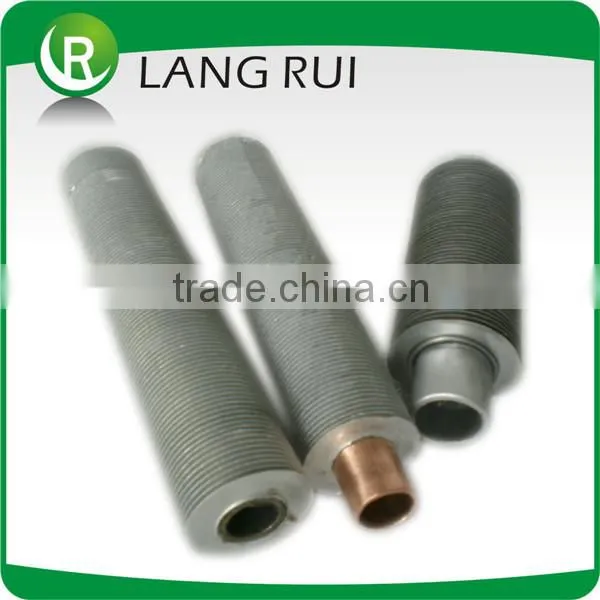

Real product show
The machine is working

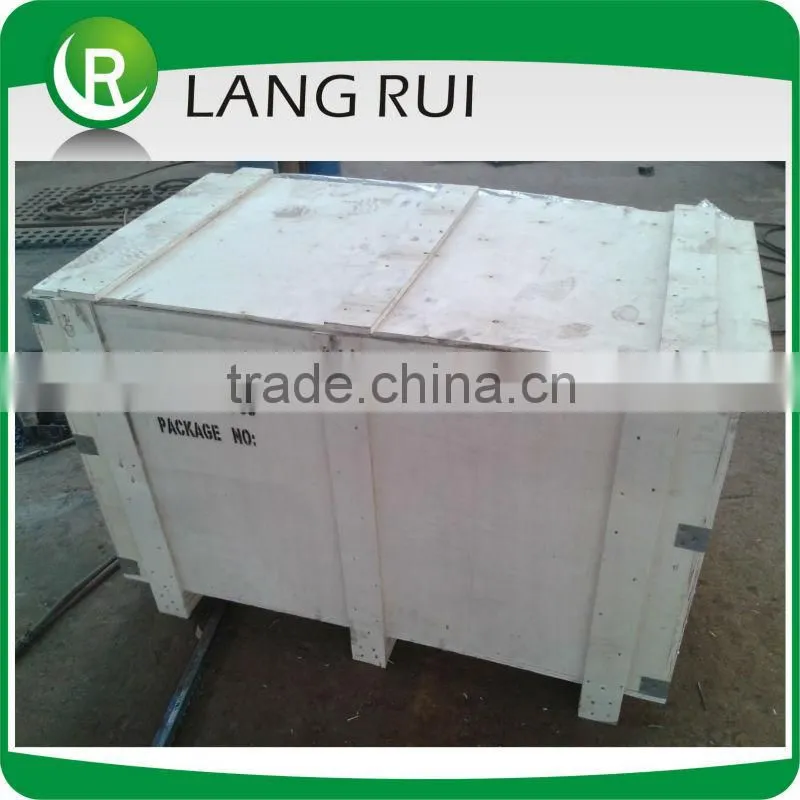

Package:
