Lonlf-APB002 ozone generator/car air cleaner with ozone/mineral water purifier/air purifier

Lonlf-APB002 ozone generator/car air cleaner with ozone/mineral water purifier/air purifier

Ozone Concentrationsin water treatment

In water treatment, the solubility of ozone scope is 0.1mg / L ~ 10mg / L. The lower concentration could be for water disinfection and purification. And a high concentration could be as "ozone water disinfectant";

Tap water purification: International concentration level is 0.4PPM ( Mg/L), the treating time is 4 minute. The CT will be 1.6;

The dissolved ozone concentration 0.1-0.5Mg/L in water, to meet disinfection purposes within 5-10 minutes.

Ozone water disinfection and sterilization is rapid and occur in an instant. To kill the bacteria in 0.5-1.0 minute; Under the concentration of 4PPM (mg / L) to kill hepatitis B virus 100% in 1.0 minute.

Herbold reports: Under 20 °C conditions, the ozone concentration in water 0.43mg / L, can be 100% kill of E. coli, and under the 10 °C to kill all E. Coli at 0.36Mg/L only;

The ozone concentration 0.25-0.38Mg/L, kill all HAV in the several minute.

Mineral water: The solubility of ozone in the 0.4 ~ 0.5mg / L can meet the requirements of sterilization. The ozone dosage is 1.5 ~ 2.0mg /L.

Bottled water: Require the ozone dissolved in water 0.3-0.5mg/L; The ozone dosage is 2 grams per 1000 liters water. According to practical experience, the ozone gas concentrations higher than 8mg / L will be susceptible to meet this level

Specification

Model: APB002

Voltage: 110V or 220V/50Hz

Power consumption: 150W

Ozone output: 2.5grams/H

Ozone module type: Porcelain Enamel type

Ozone module quantity: 2 PCS;

Feeding: dry Air Air flow: 8LPM Ozone gas concentration: 5.2mg/L at relative humidity: 50%

Ozone Outlet: 5*8mm

Air pump built inside

On/Off Switch

Handle With Timer

Net Weight: 5KGS

Unit size: 145*260*460*mm

Gross weight: 11.5KGS (two units in one carton)

Free accessories: 1 x Air dryer; silicon hose 10 meters; 1 x venturi 3/4"

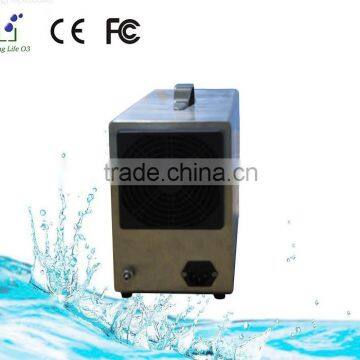

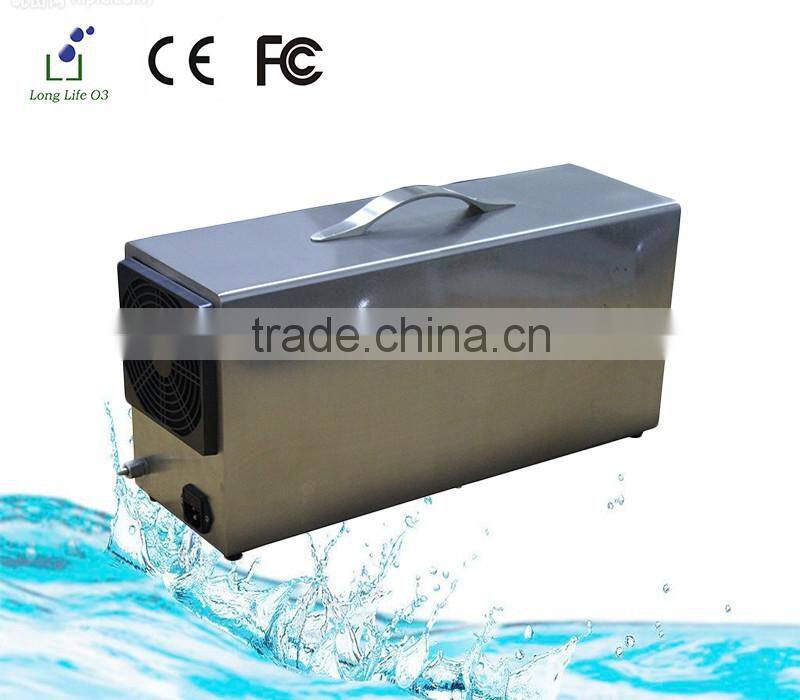

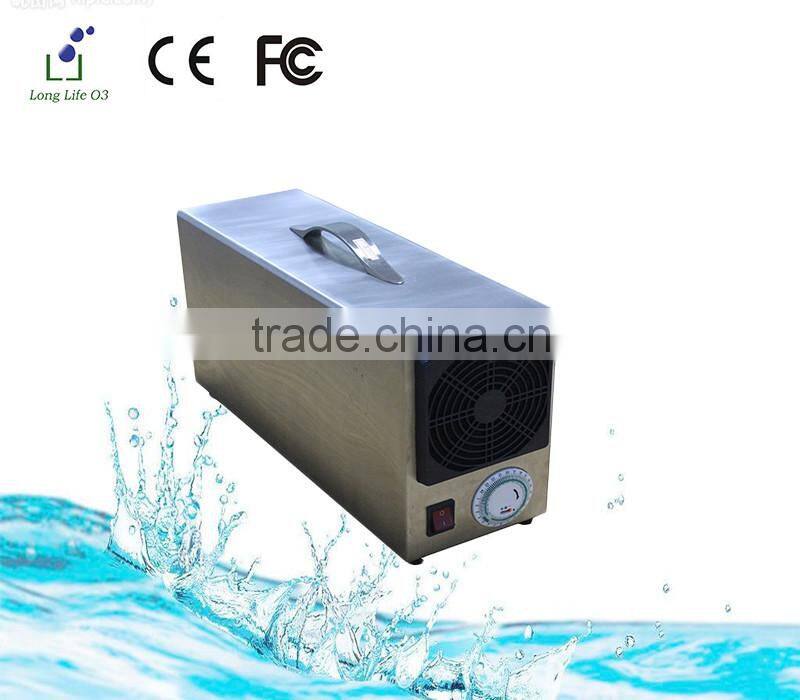

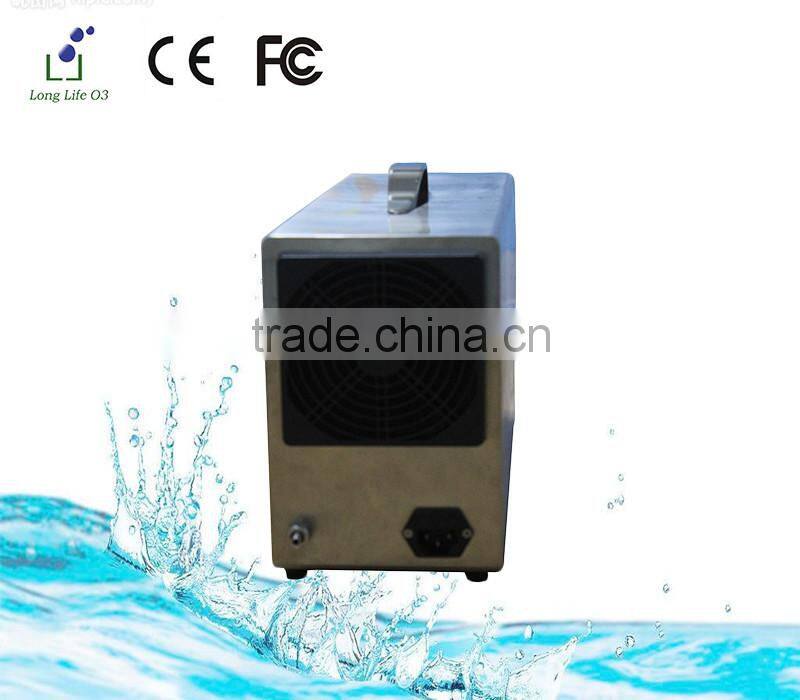

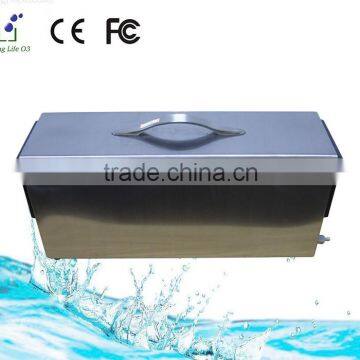

Product Pictures

Ozone Analyzer

http://longlifeozone.en.china.cn/product/60251165749-219024556/LF_UV600_high_accuracy_portable_ozone_ozone_gas_analyzer_ozone_monitor.html

Ozone Application

CE Certificate (EMC & LVD)

FCC Certificate
