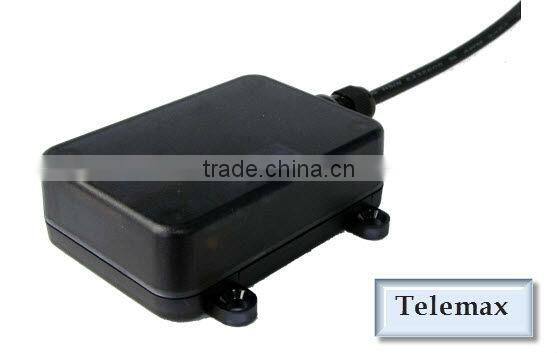

Help CenterWaterproof Vehicle Tracker & Car Tracker Device
Related Products
Specifications
Vehicle Car TrackerEasy installation ; Compact size
Tow alarm supported by G-Force plugin module
IP-67 waterproof standard
Waterproof Vehicle Tracker
Features
* IP-67 waterproof standard
* Wide range of power supply
* Store and resend up to 50,000 locations
* Tow alarm supported by G-Force plugin module
* Over the air firmware/configuration upload
* Easy installation
* Compact size
Specifications
Mechanical & Environmental Characteristics | ||||||
Physical Characteristics | ||||||
Unit Size (L x W x H) |
100 x 70 x 32 mm (±1mm) |
|||||
Weight |
260 g (±10g) |
|||||
Material |
Plastic housing |
|||||
Waterproof Casing |
IP-67 waterproof standard |
|||||
Environmental Characteristics | ||||||
Operational Temperature |
-20°C ~ +60°C |
|||||
Storage Temperature |
-40°C ~ +85°C |
|||||
NOTE: Battery has individual operational and storage temperature limitations! | ||||||
General Characteristics | ||||||
GPIO |
2 Inputs |
Ignition Detection |
||||
Panic Alerts | ||||||
2 Outputs |
2 active low output, 200mA max |
|||||
3-Axis Accelerometer |
±16G (default) |
|||||
| Electrical Characteristics | ||||||
Input Voltage |
6Vdc to 36Vdc, Current 2A, Ripple < 300mVp-p |
|||||
|
Power Consumption |
Operation Mode |
6Vdc |
12Vdc |
24Vdc |
36Vdc |
|
Transmitter |
2A |
2A |
2A |
2A |
||
Normal |
150mA |
200mA |
250mA |
300mA |
||
Standby |
20mA |
30mA |
40mA |
50mA |
||
Battery Characteristics | |||
Backup Power |
Li-Ion Cell Battery 3.7V/1000mAh |
Operation Mode |
Duration |
Transmitter |
1 Hour |
||
Normal |
12 Hours |
||
Standby |
24 Hours |
||
Battery Temperature Limitation |
Operation Temp. |
-20°C ~ +60°C |
|
Storage Temp. |
-20°C ~ +35°C |
||
GPS SPECIFICATIONS | |
General | |
Frequency |
L1, 1575.42 MHz |
C/A Code |
1.023 MHz chip rate |
Channels |
20 parallel channels |
Accuracy | |
Position |
10m, 2D RMS |
5m, 2D RMS, WAAS corrected | |
< 5m (50%), DGPS corrected | |
Velocity |
0.1m / sec |
Time |
1 sec synchronized to GPS time |
Datum | |
Default |
WGS-84 |
Time to First Fix (TTFF) | |
Cold Start |
37 sec |
Warm Start |
34 sec |
Hot Start |
1.5 sec |
Dynamic Conditions | |
Altitude |
18,000m (60,000 ft.) above sea level, max |
Acceleration |
4G, max |
Velocity |
515m/sec (1000 knots), max |
Jerk |
20m/sec, max |
GSM SPECIFICATIONS | |
Frequency Bands |
Quad-Band : GSM850 / GSM900 / GSM1800 / GSM1900 |
Maximum RF Power |
GSM850 / EGSM900 Class4 (2W) |
GSM1800 GSM1900 Class1 (1W) | |
Receiving Sensitivity |
GSM850 / GSM900 < -104dBm |
GSM 1800 / GSM 1900 -102dBm ~ -104dBm | |
SIM Interface |
Standard SIM interface (3V/1.8V) |
|
GPRS Data Transmission |
GPRS Class 10 |
Coding scheme CS 1, CS 2, CS 3, CS 4 | |
Maximum transmission speed : 85.6 Kbit/s | |
Support PBCCH | |
Built-in TCP/IP protocol. Support multi-slot, ACK response, support large memory buffer | |
CSD Service |
Support CSD data transmission up to 9600 bit/s |
Fax support : Group 3, Class 1.0 | |
Support USSD | |
-
If you are interest about this kind of new hot item, pls feel free to contact with us. Look forward to hearing from you soon. Any queries, be kind to let me know.
