Help CenterWaterproof GPS Cover Tracker
Related Products
Specifications
GPS Cover TrackerUp to 5,000 messages can be saved
Waterproof IP-67 standard casing
Built-in motion sensor

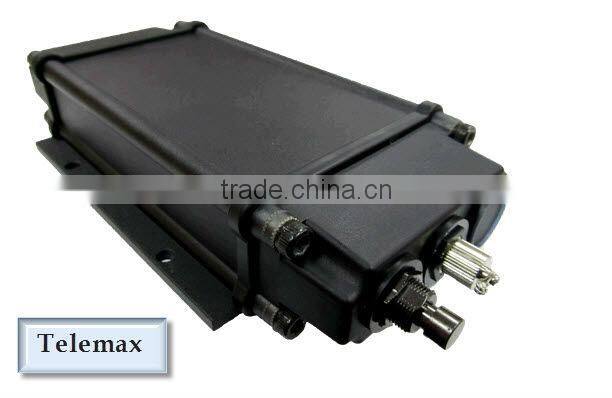

Waterproof GPS Cover Tracker
Features
* Up to 5,000 locations / activation messages can be saved (automatically)
* Built-in motion sensor
* Timer backup battery will last up to 5+ years
* Magnetic mounting (optional)
* Standby time > 3 yrs (deep sleep mode)
* IP-67 standard casing
* Location report at particular date / day / time
* Send up to 736 location reports (Deep Sleep Mode)
Specifications
Mechanical and environmental characteristics | |||||
Physical Characteristics | |||||
Unit Size (L x W x H) |
174 x 105 x 43 mm (±1mm) |
||||
Weight |
650.2 g (±10g) |
||||
Material |
Aluminum along with plastic end caps |
||||
Waterproof Casing |
(IP-67) |
||||
Buttons |
1 ON/OFF switch |
||||
Environmental Characteristics | |||||
Operating Temperature |
-20°C ~ +70°C (board temperature) |
||||
Storage Temperature |
-40°C ~ +80°C |
||||
Electrical Characteristics | |||||
Input Voltage |
+5 Volt DC regulated via charger port |
||||
Power Consumption |
Operation Mode |
TBC |
TBC |
TBC |
TBC |
Transmitter |
TBC |
TBC |
TBC |
TBC |
|
Normal |
TBC |
TBC |
TBC |
TBC |
|
Standby |
TBC |
TBC |
TBC |
TBC |
|
|
Minimum time is 100 hours. (Operating in Normal Running Mode, sending interval 12 seconds) | |||||
Backup Power |
Li-Ion Cell Battery – 8000 mA / 3.7 Volt |
||||
GPS Specification | ||
General | ||
Receiver Type |
50 Channels |
|
GPS L1 frequency, C/A code | ||
GALILEO Open Service L1 frequency | ||
Time to First Fix (TTFF) | ||
Cold Start (Autonomous) |
29 seconds |
|
Warm Start (Autonomous) |
29 seconds |
|
Hot Start (Autonomous) |
< 1 second |
|
Aided Starts |
< 1 second |
|
Sensitivity | ||
Tracking & Navigation |
-160 dBm |
|
Reacquisition |
-160 dBm |
|
Cold Start (Autonomous) |
-144 dBm |
|
Max Navigation Update Rate |
< 4Hz (ROM) / 2Hz Flash |
|
Accuracy | ||
Horizontal Position Accuracy |
Autonomous |
< 2.5m |
SBAS |
< 2.0 m |
|
Velocity Accuracy |
0.1 m/s |
|
Heading Accuracy |
0.5 degrees |
|
Dynamic Conditions | ||
Altitude |
50,000m |
|
Acceleration |
≤ 4G max |
|
Velocity |
500 m/s |
|
GSM Specification | |
Frequency Bands |
Quad Band : GSM 850 / GSM 900 / GSM 1800 / GSM 1900 |
GSM module can search the 4 frequency bands automatically. The frequency bands also can be set by AT command. Compliant to GSM Phase 2/2+ | |
GSM Class |
Small MS |
|
Transmit Power |
EGSM 900 Class 4 (2W) |
DCS 1800 / PCS 1900 Class 1 (1W) | |
GPRS Connectivity |
GPRS multi-slot Class 8 (optional) |
GPRS multi-slot Class 10 (default) | |
GPRS mobile station Class B | |
|
Data GPRS CSD |
GPRS data downlink transfer : 85.6 kbps max |
GPRS data uplink transfer : 42.8 kbps max | |
Coding scheme : CS-1, CS-2, CS-3, CS-4 | |
GSM module integrates the TCP/IP protocol | |
Support Packet | |
Switched Broadcast Control Channel (PBCCH) | |
CSD transmission rates : 2.4, 4.8, 9.6, 14.4 kbps, non-transparent | |
Unstructured Supplementary Services Data (USSD) support | |
SMS |
MT, MO, CB, Text and PDU mode |
SMS storage : SIM card | |
FAX |
Group 3 Class 1 |
SIM Interface |
Supports SIM card : 1.8V, 3V |
External Antenna |
Connected via 50 ohm antenna connector or antenna pad |
Audio Features |
Speech codec modes : Half Rate (ETS 06.20) Full Rate (ETS 06.10) Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80) Echo suppression |
If you are interest about this kind of new hot item, pls feel free to contact with us.
Look forward to hearing from you soon. Any queries, be kind to let me know.
