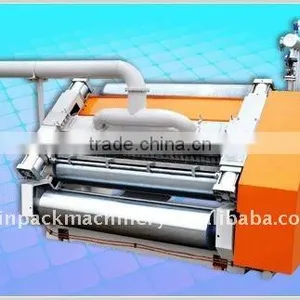

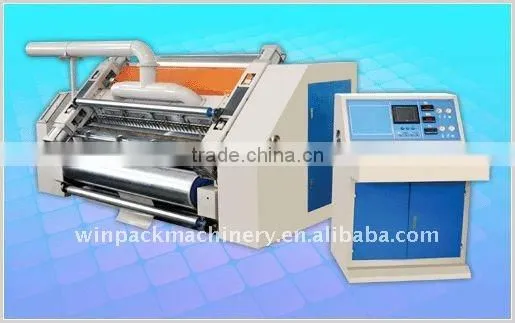

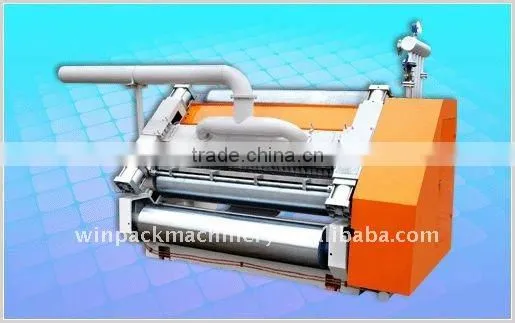

Help CenterCorrugated Paper Box Fingerless Single Facer Machine
Related Products
-
Corrugated Carton Fingerless Single FacerNegotiableMOQ: 1 Set -
Corrugated Carton Box Single FacerNegotiableMOQ: 1 Set
-
Corrugated Carton Box Single FacerNegotiableMOQ: 1 Set
-
Corrugated Carton Box Single Facer Production LineNegotiableMOQ: 1 Set
-
Corrugated Paper Box Single Facer MachineNegotiableMOQ: 1 Set
Specifications
-Gimbal Transmission and Separate Power-High Temperature Lubricate Grease
-Auto Circularly Supply Set
(1) Design Speed: 80m/min
(2) Effective Width: 1400mm-2500mm
(3) Corrugated Roller: φ280mm
(4) Drive Reduce Box Lubricated by Immersed Oil to Reduce Noise to keep Running Stable; Adopt gimbal Transmission and Separate Power
(5) Corrugating Roller, Pressure Roller, and Glue Roller are Controlled by Pneumatic
(6) Cardboard Transmission Adopt Vacuum Suction Method with Wind Control System to Keep Flute Profiles Stable in the Condition of Running up
(7) Bearing of Corrugated and Pressure Roller adopt High Temperature Lubricate Grease
(8) Glue Parts Adopt Auto Circularly Supply Set and the Surface of Glue Parts is Treated by Special Mesh Snicked and Chromeplated
(9) The Upper-lower Corrugating Rollers are Made of 52CrMo High Quality Alloy Steel, after Heat-treatment. The Rigidity is HRC58-60, AND the Surface are Whetted and Plating Chrome
(10) Motorized or Manual Glue Width is Dividing to Match the Paper Width
(11) Glue Part can be Running Independently or Non-independently while Stopped. Adopt Main Motor Frequency Conversion Control (Optional).
We are the biggest manufacturer for corrugated carton machinery in North China. The features of our machine are high autoimmunization, easy operation and maintenance, high efficiency, good quality of paperboard, compact structure and nice appearance.
