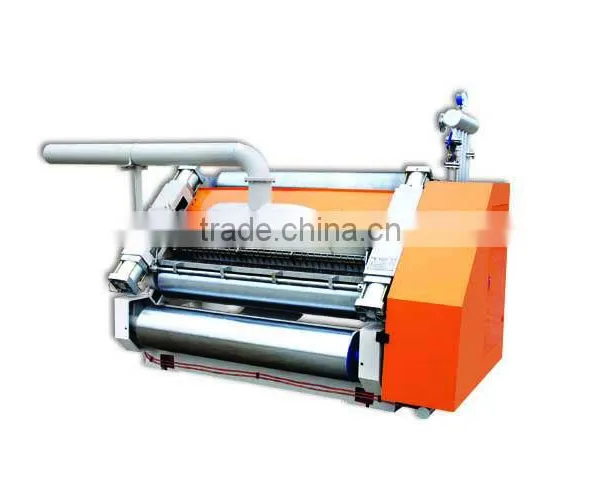

Help CenterCorrugated Carton Box Fingerless Single Facer
Related Products
-
Automatic Corrugated Carton Box Fingerless Single FacerUS$ 40,000 - 50,000MOQ: 1 Set -
Corrugated Carton Cassette Single FacerNegotiableMOQ: 1 Set
-
Corrugated Paper Box Fingerless Single Facer MachineUS$ 20,000 - 25,000MOQ: 1 Set
-
Corrugated Carton Fingerless Single FacerNegotiableMOQ: 1 Set
-
Corrugated Carton Box Single FacerNegotiableMOQ: 1 Set
Specifications
-Low Noise-Running stable
-Rollers are are Controlled by Pneumatic
-Auto Circularly Supply Set
(1) Design Speed: 100m/min
(2) Effective Width: 1400mm-2200mm
(3) Corrugated Roller: φ280mm
(4)Drive Reduce Box Lubricated by Immersed Oil to Reduce Noise to keep Running
Stable; Adopt gimbal Transmission and Separate Power
(5) Corrugating Roller, Pressure Roller,and Glue Roller are Controlled by Pneumatic
(6) Cardboard Transmission Adopt Vacuum Suction Method with Wind Control System to
Keep Flute Profiles Stable in the Condition of Running up
(7) Bearing of Corrugated and Pressure Roller adopt High Temperature Lubricate Grease
(8) Glue Parts Adopt Auto Circularly Supply Set and the Surface of Glue Parts is Treated by
Special Mesh Snicked and Chromeplated
(9) The Upper-lower Corrugating Rollers are Made of 48CrMo High Quality Alloy Steel, after Heat
treatment. The Rigidity is HRC58-60, AND the Surface are Whetted and Plating Chrome
(10) Motorized or Manual Glue Width is Dividing to Match the Paper Width
(11) Glue Part can be Running Independently or Nonindependently while Stopped. Adopt
Main Motor Frequency Conversion Control (Optional).
(12) Pressure Roller: φ284mm Glue Roller: φ215mm Preheater Diameter: 320mm
(13) Temperature Range: 160-200'C
(14) Economic Speed: 80m/min
There are many types of machine in our company( three or five or seven layer production line and so on ). The whole machine specification can meet every respond of our clients. We can provide machines according to clients' demand with high quality and standard.
We are the biggest manufacturer for corrugated carton machinery in North China.
The features of our machine are high autoimmunization, easy operation and maintenance, high efficiency, good quality of paperboard, compact structure and nice appearance.
We sincerely cooperate with clients from all over the world and we will meet the demands of clients with better production quality and more complete after-sales service.
