Specifications
-Simple structure and high reliability-High quality electromagnetic clutch and brake
-Operate easily
-Vacuum suction feeder
Model |
QF-2400 |
Max. Cardboard (mm) |
900*2200 |
Mini. Cardboard (mm) |
300*900 |
Dimensions (mm) |
L11000 * W3000 * H1600 |
Total weight |
6000kg |
Power Required |
11.5kw, 380V, 3phase, 50HZ |
Paperboard thickness |
3 or 5 layer paperboard |
Control |
PLC & TOUCH SCREEN |

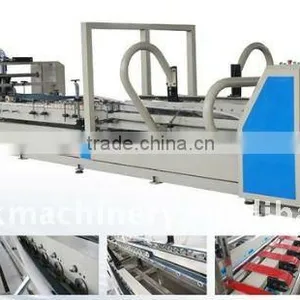

Automatic Folder Gluer 2400
--Feeding section
*Vacuum suction feeder can feed warping paperboard easily.
*Adopt high quality electromagnetic clutch and brake. Feeding section is controlled independently. Operate easily
*Scorer wheel can be adjustable and suitable for 2—8mm thick paperboard
*Second creasing structure can take one more creasing if the paperboard was not creased well
--Glue &Folding section
*Simple structure and high reliability,glue quantity adjustable, cleaning easily.
*Adopt stainless steel glue wheel adopted, long life and saving glue cost.
*adopt imported quality belt, automatic folding.
*With paperboard rectifying device and creasing rectifying device:
--Counter & Stacker section
*Stacking and counting are simple and reliable;
*Digital control, operation is easy and reliable. No-stop input data and automatic counting.
*With rectification function.
