2015 High Pressure Overhang Roller Mill/Raymond Mill Mineral Stone Grinding Mill with CE&ISO |
We provide the complete limestone plant machines
pls tell us your limestone info and your requirements, then we can provide you the suitable solutions
We offer Raymond Grinding Mill spare parts for free for the top five customers every month !
Introduction of XBM Raymond Grinding Mill: |
Raymond grinding mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc. The granularity of the finished powder size can be adjusted between 50 and 325 mesh (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
Working Principle of XBM Raymond Grinding Mill: |
In the micro-power grinding room, the rollers hanged on the roller lifting frame,which is fixed with the main shaft and the scraper knife.the pressure spring press on the outer of the cantilever by tension rod,with the cross arm shaft as the supporting point.let roller tightly press on the inner surface of the ring.
When the motor moved with equipment,the scraper knife on the scraper frame moved with the roller at the same time.as the roller moved on the inner sphere surface and moved itself.analyzer let the analyzer runner rotated by motor equipments,and the power fineness depend on the speed adjustment of the analyzer. If there is anything else on the powder making machine, pls kindly tell me.
Structure of XBM Raymond Grinding Mill: |
1.The Raymond grinding mill structure is mainly composed of host, analyzer, fan, finished cyclone separator, plumbing installation and motor etc.
2.The mainframe consists of rack, air inlet volute, blade, roll grinding, grinding central, shell and motor.
3. The auxiliary equipment include jaw crusher, bucket elevator, electromagnetic vibrating feeder and control cabinet. Customers are able to choose flexibly according to the real situation.
Applications of XBM Raymond Grinding Mill: |
We produce powder making machine like: Raymond grinding mill machine, Ball mill machine, Micro mill machine, Ultra-fine mill machine, etc types, we will choose the most suitable machine according to your mine info and your requirements. Our Raymond mill is widely used in grinding more than 280 noninflammable and nonexplosive materials with a Moth's hardness below 7 scale, a humidity below 6%, such as barite, calcite, potash, pencil stone, marble, limestone, ceramic, glass and other materials which used in mining, construction, chemical and metallurgy. The size of powder can be controlled ranging from 50 to 325 meshes.
Features of XBM Raymond Grinding Mill: |
1. High capacity, 1-20t/h.
2. Insolating type cyclone collector;
3. Non-resistance inlet shell;
4. Easy maintenance, simple structure, low investment
5. Curved surface shovel with changeable edge;
6.The fineness can be adjusted between 50 and 325 mesh (315-45 micron).
7. Fixed with 1000-1500kg pressure springs, and its capacity increase 20% to 30%; When the grinding roller and grinding ring, stable capacity and fineness can be guaranteed.

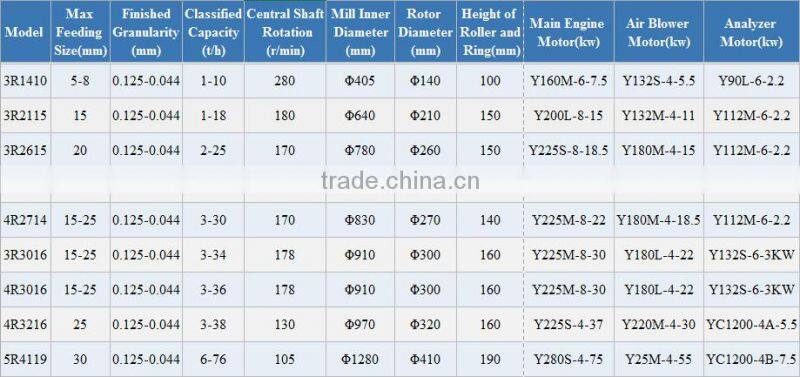

Parameters of XBM Raymond Grinding Mill: |
hot selling grinding machine Raymond Mill. This is some model of fineness output size powder making machine, also we have other types like Micro mill machine, Ultra-fine mill machine, Raymond grinding mill, Ball mill machine etc types. Pls kindly tell us your mine info and your requirements, then we can choose the suitable machine for you.
Please Inform us the follow figures:1).feeding material 2).Feeding material MAX. Size (mm) 3).Final mesh size (mm) 4).Capacity (t/h)
Personalized reception: Offer the full and personalized service in the whole journey after you come to China.
Lifetime Technical Support: Offer one year of free equipment warranty and lifetime technical support.
Monitor Production Progress: You can monitor production progress personally any time after confirming the order.
Product Delivery: We have developed a long and good relationship with many shipping agents, such as APL, MSK, CSCL, MSC, etc.
Installation and Training: Send technicians to the client site for guiding the installation and adjustment, and training operators to complete the inspection and acceptance together with you.
Henan Xingbang Heavy Machinery Co., Ltd.(XBM) is a largescale enterprise with Integration of researching, development, manufacturing and marketing mining machinery. Our main business scope is: stone crushing series, industrial grinding series, ore dressing equipment and cement equipment.
Our products have been exported to a number of foreign countries, including southeastern Asia, South Africa, South America etc. And numerous customers have come to visit our factories with the purpose of choosing their ideal machine. China XBM always bears in mind the aim "Quality First; Honesty Foremost"!
Over 20 years experiences in this field; Exported to more than 30 countries in Africa, Asia, America; Processional Research and Development team; Strict quality control; Provide complete service equipment installation, testing ,maintenance and staff training.....
All XBM people sincerely welcome customers all over the world to visit our factory!
Looking forward to cooperating with you !
