CIP For Gold Cyanidation Process Plant by Active Carbon adsorption
- 50 Set / Sets per Month
- Qingdao Shanghai Xiamen Tianjin Based on your designation or destination
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | XBM | Model Number: | All kinds |
Product Description
Specifications
CIP GOLD ProcessCarbon In Leach (CIL&CIP) Plant
Carbon Adsorption In Recovery Of Gold From Cyanide Leach Solutions
CIP Plant Equipment Double-impeller Leach Tank For Gold Cyinadation Process Manufacturer
(The most excellent turnkey project supplier, including experimental resaerch, engineering design, equipments manufacture , installtion and commision ,staff training, etc.)
The Gold CIP Process Plant:
The ore after grinding is fed to agritation and leaching tanks of cyanide solution, where the gold is dissolved in the cyanide. The pregnant solution is then transferred to a series of tanks, where carbon is added. The gold is adsorbed onto the surface of the carbon. The carbon, with gold attached, is removed by screening. The gold bearing carbon is then introduced into a heated sodium hydroxide-cyanide-water solution where the gold is dissovled. This concentrated solution is passed through a series of electrowinning cells, where the gold quickly plates (in about 3 minutes) onto the stainless steel cathodes. The gold is washed from the cathodes, with high pressure sprays, dried and melted, to be poured into molds for gold bricks, or ingots.
Gold Cyanide CIP Process Plants Equipments include the following equipments:
1.Feeder
2.Jaw crusher, cone crusher
3.Vibrating screen

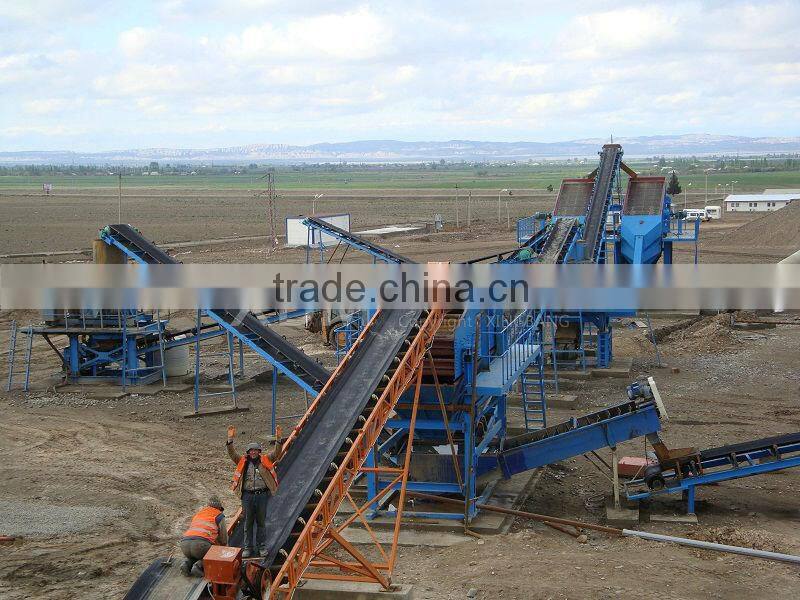

4.Belt conveyors

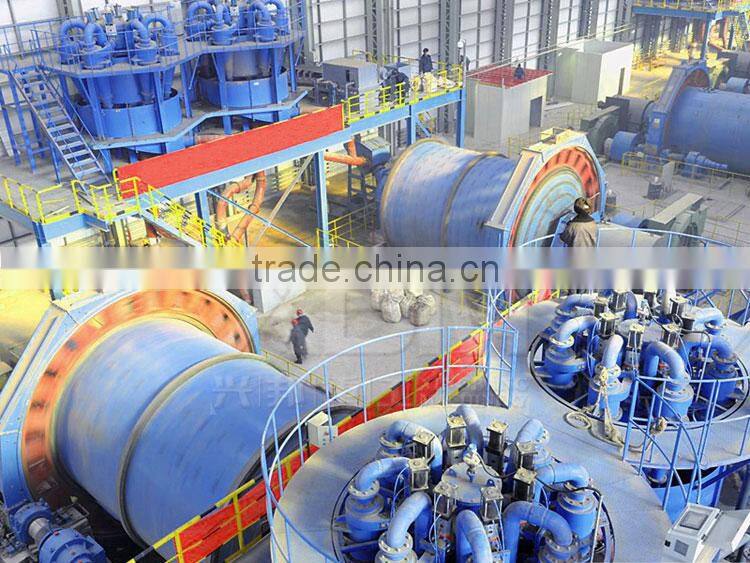

5.Ball mill
6.Spiral classifer
7.Hydrocyclone
8.Thickener

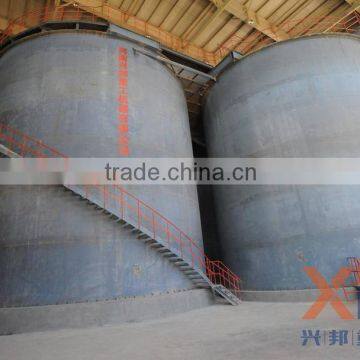

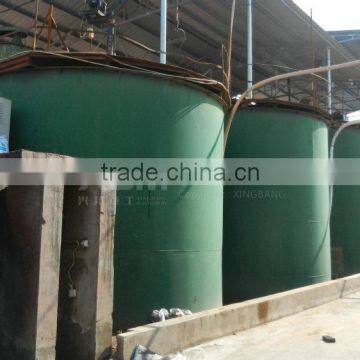

9.Leaching Tanks
10.Electrowinning and desorption device
11.Gold smelting furnace
We can supply the whole line of gold leaching plant, including:
a. crushing system
b. grinding and classification system
c. leaching system
d. desorption and electrowinning device
e. gold smelting system
Personalized reception: Offer the full and personalized service in the whole journey after you come to China.
Lifetime Technical Support: Offer one year of free equipment warranty and lifetime technical support.
Monitor Production Progress: You can monitor production progress personally any time after confirming the order.
Product Delivery: We have developed a long and good relationship with many shipping agents, such as APL, MSK, CSCL, MSC, etc.
Installation and Training: Send technicians to the client site for guiding the installation and adjustment, and training operators to complete the inspection and acceptance together with you.
Six Reasons of Choosing XBM:
- International high quality certification product chain
- Manufactures, more reasonable price
- Solid technical support and after-sales service
- Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
- One-stop service, customized exclusive project feasibility report
- Exports to more than 50 countries and regions, good customers feedback
