Help CenterNew Design Gravity Separator for Gold Ore, Tin Ore, Manganese Ore, Etc.
Related Products
-
High Processing Capacity Sand Recycling Machine From PulpUS$ 1,700 - 5,000MOQ: 1 Set -
Gold/ Copper Ore Leaching and Adsorption Tank for CIP/ CIL ProcessUS$ 1,580 - 98,650MOQ: 1 Set
-
High Efficiency Gold Leaching and Adsorption TankUS$ 1,580 - 98,650MOQ: 1 Set
-
Gold Leaching and Adsorption Tank/ Active Carbon Tank With High EfficiencityUS$ 1,580 - 98,650MOQ: 1 Set
-
Good Performance Water Cyclone Used With Ball Mill in Beneficiation PlantUS$ 1,700 - 5,000MOQ: 1 Set
Specifications
gravity separator1. low power consumption
2. high recovery rate
3. high processing capacity
1. Application of gravity separator

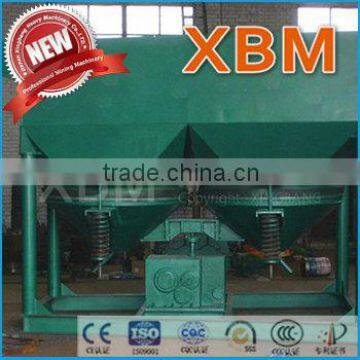

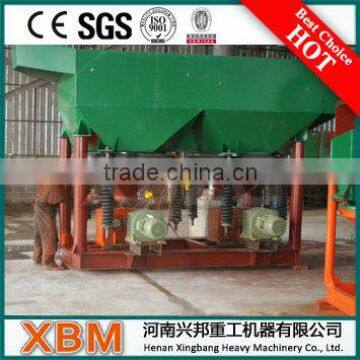

Jig concentrator machine belongs to gravity-based equipments, which can separate mineral based on differing of specific gravity. Saw-tooth wave jig mainly consists of three parts: main frame, driving set and jigging chamber. This machine Can achieve a good result in processing such as placer gold, tungsten, iron, tin, hematite, cope, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.
2. Features of gravity separator
1. Compact structure and small occupation area
2. Energy saving and continuous working
3. High recovery, high unit throughput and low water consumption
4. Simple installation and Minimal maintenance requirements
5. Stroke and frequency of stroke can be easily adjusted
3. Working principle of gravity separator
Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
4. Specification of gravity separator
Main Technical Parameters | |||||||||||
Model |
Jig hutch |
Diaphragm |
Feeding size(mm) |
Amount of make-up water (m³/t) |
Make-up water pressure (Mpa) |
Capacity (t/h) |
Power (kw) |
Dimension(mm) |
Weight (Kg) |
||
Shape |
Area (m²) |
Stroke (mm) |
Frequency of stroke (r/min) |
||||||||
JT0.57-1 |
Trapezoid |
0.57 |
8.5-12 10-17 12-21 |
80-180 |
<6 |
1-2 |
≥0.05 |
1.5-3 |
1.5 |
1550×780×1530 |
610 |
JT1-1 |
Trapezoid |
1.04 |
<10 |
2-3 |
2.5-5 |
2.2 |
2270×1110×1890 |
900 |
|||
JT2-2 |
Rectangle |
2.28 |
<10 |
2-4 |
5-10 |
3 |
3225×1550×2050 |
1640 |
|||
JT3-1 |
Trapezoid |
3 |
12-30 |
50-125 |
<10 |
3-6 |
7.5-15 |
5.5 |
2745×2000×3030 |
3085 |
|
JT4-2 |
Trapezoid |
4 |
25-57 |
<25 |
4-8 |
8-20 |
7.5 |
4240×1990×2750 |
3098 |
||
JT4-2S |
Trapezoid |
4 |
25-57 |
<25 |
4-8 |
8-20 |
4.2 |
4240×1990×2750 |
3500 |
||
JT5-2 |
Trapezoid |
4.86 |
12-30 |
<10 |
3-6 |
12-25 |
7.5 |
3600×2000×2600 |
4500 |
||
