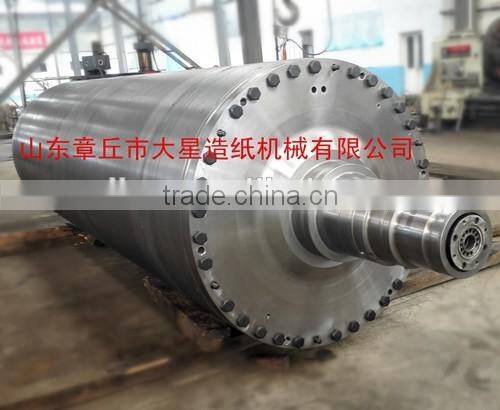

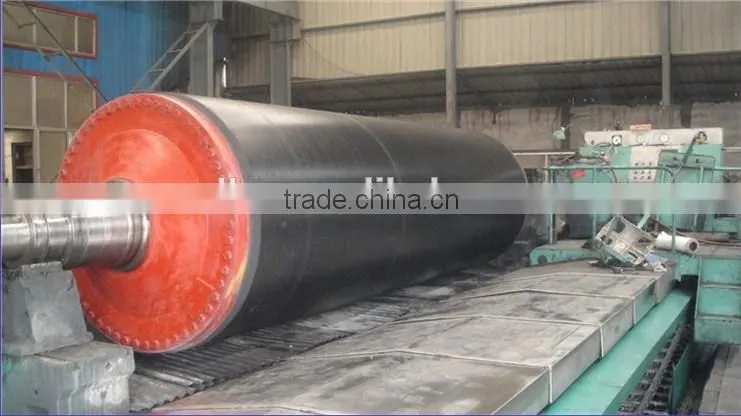

Paper making rolls used in press section of paper machine/Press Roll
Bottom Press Roll
Specifications:
1.Used in press section
2.Cast iron roll
3.Roll body coated rubber
Main Technical Parameters:
1. Diameter——650mm
2. Face width——2400mm
3. Roll type——Blind hole roll
4. Roll body material——High strength cast iron HT300
5. Shaft head——45# steel conditioning shaft head
6. Roll surface coated rubber——Hardness“A”95°±2°, thickness 20mm
7. Bearing assembly——113536
8. Lubrication type——Grease lubrication
9. Dynamic balance level——G1.6
10. Equipped with drive out shaft

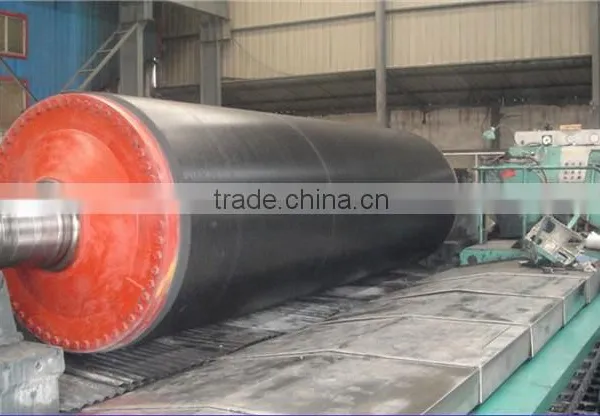

Suction Press Roll
Specifications
•Suction Return Roll
•Suction Pick-up Roll
•Suction Couch Roll
•Blind Drill Roll
•Guide Roll Press Top roll rubber
Rollers for paper machine
Wire section |
Breast roll, Forwarding Roll, Guide Roll |
Press section |
Blind drill press roll, Plain press roll, Grooved roll, Stonite roll, Felt guide roll, Expander roll |
Dryer section |
guide roll for drying screen or wide felt, pick-up roll |
Others |
calender roll, bow roll, spool, couch roll, back roll, |
Max.capacity |
Dia.1500mm, face length 8000mm |
All rolls are dynamic balanced. | |
After special processing technology journal advantages:
•Enhance hardness of shaft.
•Increase contant area with bearing.
•Extend bearing life time.
