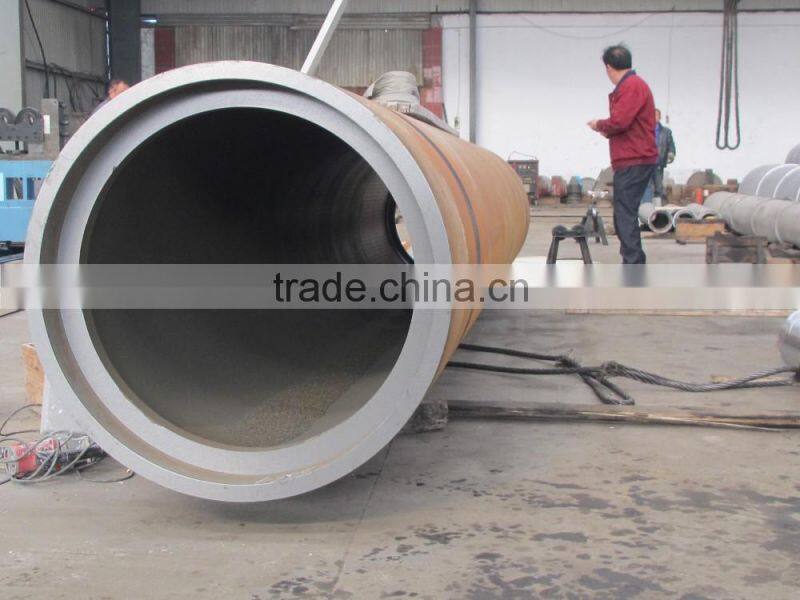

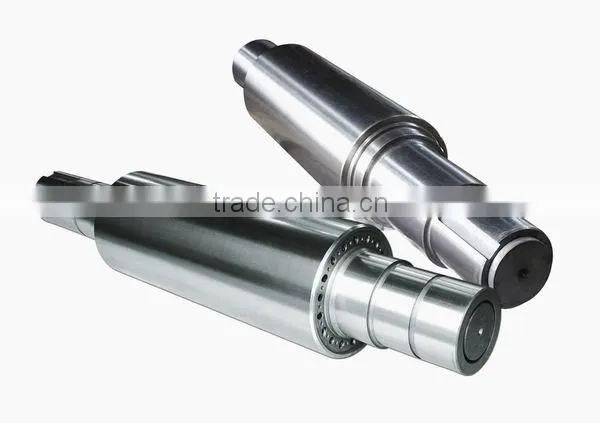

Corrugated Paper Machinery Roller

Name: Corrugated Paper Machinery Roller
Brand: Da xing
SKU: 115677865
Availability: InStock

US$ 10000.00 - 10000.00 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Da xing

Shandong Zhangqiu Daxing Paper-Making Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Da xing

Dimension(L*W*H) 2950*1320*1500mm

Certification Other, ISO9000

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

high quality press roll for card board coating machine

Blind hole press roll	Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
	Roll surface cover with rubber. Rubber thickness 20-25mm. Rubber hardness is 92-96shore "A".
	The dynamic balance grade:G1.6
	Blind hole:dia 3mm, deep 12mm and 9mm ,arranged alternately .
Grooved press roll	Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
	Roll surface cover with rubber. Rubber thickness 20-25mm. Rubber hardness is 92-96shore "A".
	The dynamic balance grade:G1.6
Smooth press roll	Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
	The dynamic balance grade:G1.6
	Roll surface will be grinding by precision grinding machine

Blind hole press roll	Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
	Roll surface cover with rubber. Rubber thickness 20-25mm. Rubber hardness is 92-96shore "A".
	The dynamic balance grade:G1.6
	Blind hole:dia 3mm, deep 12mm and 9mm ,arranged alternately .
Grooved press roll	Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
	Roll surface cover with rubber. Rubber thickness 20-25mm. Rubber hardness is 92-96shore "A".
	The dynamic balance grade:G1.6
Smooth press roll	Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
	The dynamic balance grade:G1.6
	Roll surface will be grinding by precision grinding machine
