High Speed Toilet Paper Production Line

High Speed Toilet Paper Production Line thumbnail-1
High Speed Toilet Paper Production Line thumbnail-2
High Speed Toilet Paper Production Line thumbnail-3
High Speed Toilet Paper Production Line photo-1
High Speed Toilet Paper Production Line photo-2
High Speed Toilet Paper Production Line photo-3
US$ 100,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Toilet Tissue
Processing Type:
Other, paper making machine
Contact Supplier Request Quote Chat Now
Shandong Zhangqiu Daxing Paper-Making Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Toilet Tissue
Processing Type Other, paper making machine
Place of Origin Shandong, China
Brand Name daxing
Model Number ZY1092-2362
Voltage 380V
Power(W) 5.5KW
Dimension(L*W*H) 2950*1320*1500mm
Weight 3000kg
Certification Other, ISO 9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

high speed toilet paper production line

Product Description

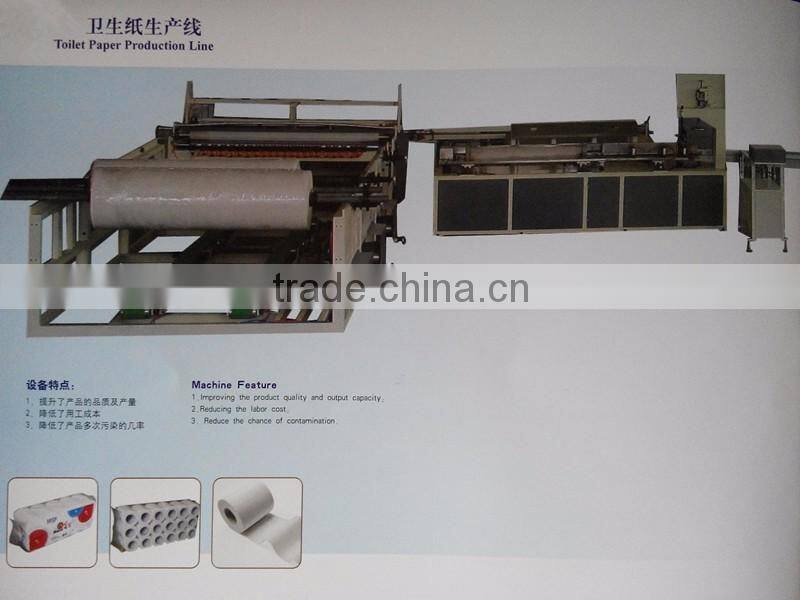

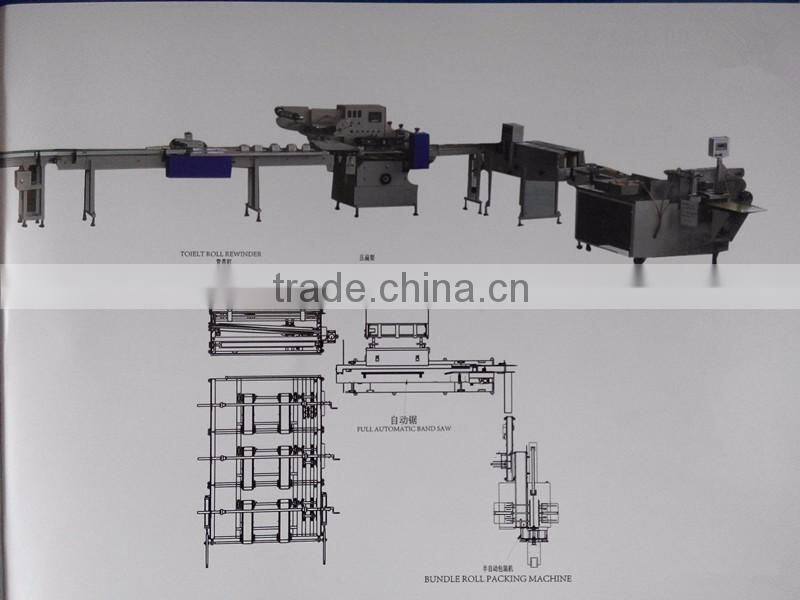

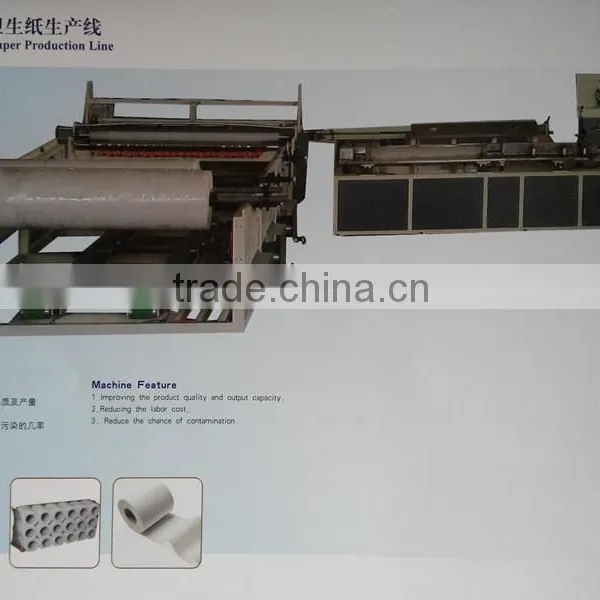

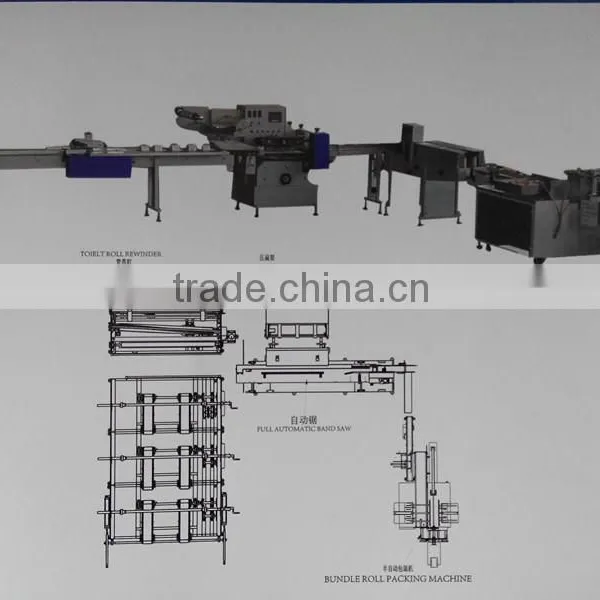

This production line consists of rewinder, compressed frame, automatic saw, a semi automatic packaging machine .
Machine feature:
Improving the quality and output capacity;
Reducing the labor cost;
Reducing the chance of contamination



Detailed parameters of each part

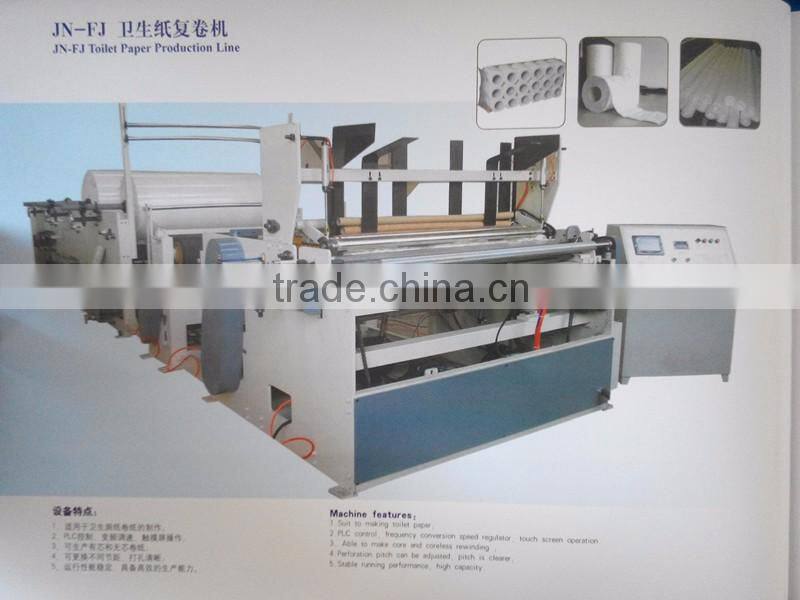

Toilet Paper winder Technical Parameter

Model 1092 1575 1880 2100 2400 2800 3000
Raw Paper Width (mm) 1350 1750 2100 2300 2500 2850 3000
Raw Paper Dia (mm)

φ1500   (other size,please specify)
Raw paper core dia(mm) φ76   (other size,please specify)
Finished roll dia(mm) φ40--φ125
Unwinding Stand 1--3 ply,ordinary chain transmission or independent motor for conveying paper(optional)
Perforation Spiral perforation knife
Perforation pitch Chain wheel positioning
Controller system PLC controller,frequency conversion speed regular,touch screen
Product range Core roll of paper,coreless roll of paper
Core Drop Manual,automatic(optional)
Coreless roll Automatic shaft drawing
Production speed 150--200 m/min
Tail trimming and sealing Automatic
Finished product output Automatic
Operation type Remote control
Power 380V,50HZ
Air pressure required 0.5Mps (Prepared by user)
Embossing Single/Double embossing(steel to wool/steel/felt roller)(Optional)
Edge embossing Cylinder control,steel to steel structure

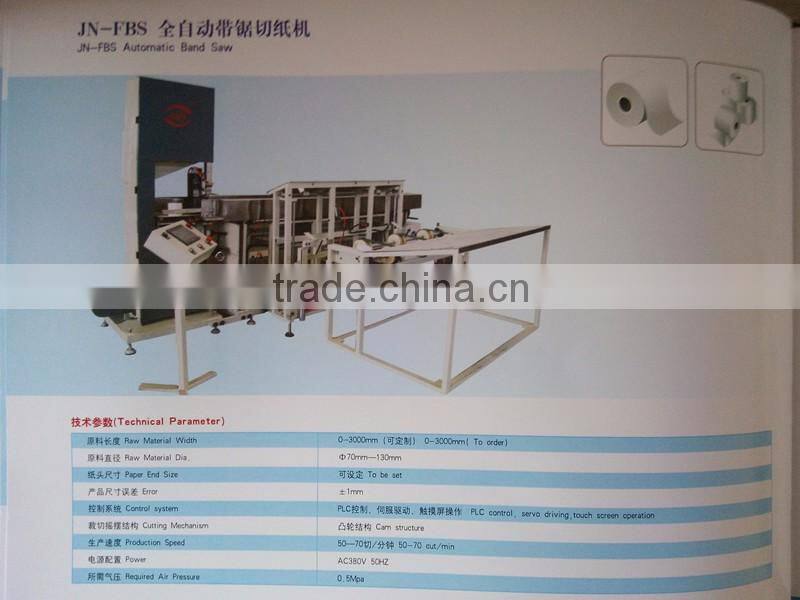

Automatic Band Saw Technical Parameter

Raw material width(mm) 0--3000 (customized)
Raw Paper Dia (mm) φ70--φ130
Paper end size To be set
Product dimension error  ±1mm
Controller system PLC controller,servo driving,touch screen
Cutting Mechanism Cam structure
Production speed 50--70 cut/min
Power AC 380V,50HZ
Required air pressure 0.5Mpa

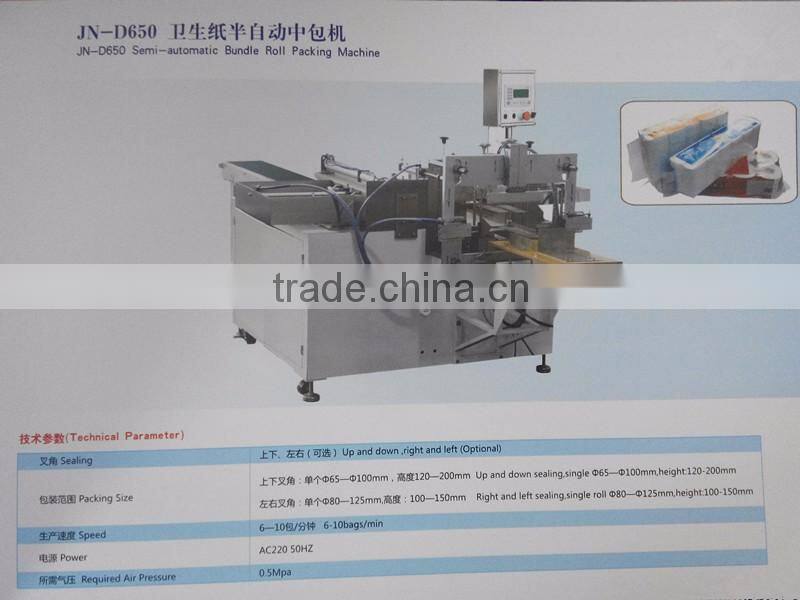

Semi-automatic Bundle roll packing machine Technical Parameter

Sealing Up and Down,Right and left(optional)
Packing size Up and Down sealing,single φ65--φ100mm,height:120--200mm
Right and left sealing,single roll φ80--φ125mm,height:100-150mm
Speed 6--10 bags/min
Power AC 220V ,50HZ
Required air pressure 0.5Mpa



 high speed toilet paper production linehigh speed toilet paper production line

high speed toilet paper production linehigh speed toilet paper production linehigh speed toilet paper production line

Packaging & Shipping

Packaging&Shipping

   Our products are packaged by wooden or steel box, the main characteristics of the products and which way our customs  required will be the factor that we think about when we choose the way to package.

Company Information

Company Information

   Shandong Zhangqiu Daxing Paper-making Machinery Co.,Ltd built in 1978, we are the professional  manufacturer of roller which is used in the paper making machinery , including reserch and development, production and processing, sales and management and technique service. Now we are the member of Shandong Light Industry Association.



   We have 36 engineers and 160 staff. Our fixed assets  amounted to 30 million RMB .The casting capacity is up to 30 tons per piece. We have 58 sets of professional production and testing equipments. And 10 sets of large processing equipment (including numerical control lathe).The max diameter is 1.8 meters ,the max face length is 10 meters.We have passed the ISO 9001 international quality system certification. Our products sold throughout the country, and exported to the United States, Finland, Germany, the United Kingdom, Spain, Czech, Australia, Russia, Ukraine, Turkey, Iran, Egypt, Indonesia, Thailand, Peru, India and other countries and regions.
