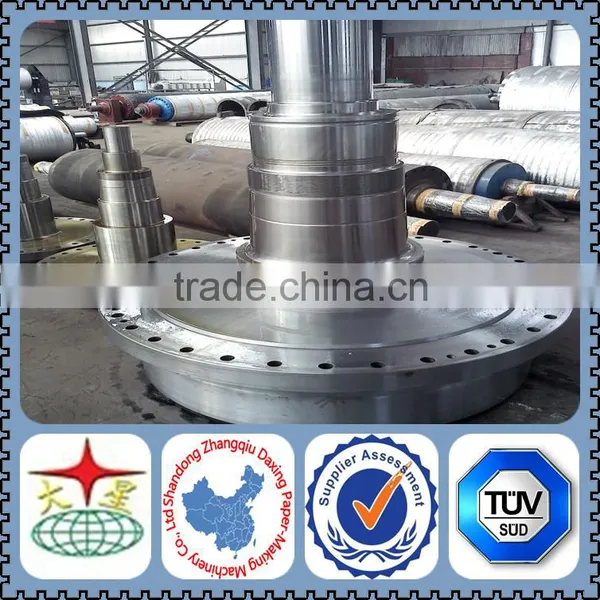

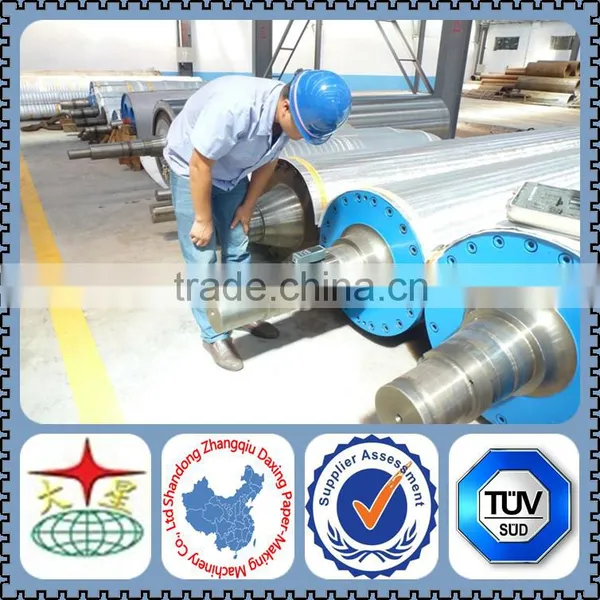

Help CenterPlain Press Roll for Paper Machine
Related Products
-
Tension RollUS$ 1000.00 - 1000.00MOQ: 1 Piece -
Chinese High Quality Wire/felt/paper Guide Roll/roller, Paper Machine Spare PartsUS$ 1000.00 - 1000.00MOQ: 1 Piece
-
Guide Wire RollUS$ 1000.00 - 1000.00MOQ: 1 Piece
-
Various Rolls for Tissue Paper Machine / Tissue Paper Machine RollUS$ 1000.00 - 1000.00MOQ: 1 Piece
-
Paper Plate Making Machine Roll Machine/roll Forming MachineUS$ 1000.00 - 1000.00MOQ: 1 Piece
Paper machine plain press rolls
SECTION |
NAME |
CHARACTERISTICS |
|
Forming section |
Couch roll |
Effective dewatering effect, corrosion resistance |
Vacuum couch roll |
Φ500mm-Φ1500mm, width 2000mm-8000mm, thickness 30mm-120mm, hole diameter Φ3mm-Φ13mm |
|
Guide roll |
High temperature, corrosion, tension, pressure and impact resistance, easy to scrape. |
|
Forward roll |
Used in the rugged environment of driving unit, good frictional behavior and wear resistance. |
|
Press section |
Suction press roll (SS shell) |
The glue layer has good toughness, large tapping area (max: 50%); special designed buffer layer can disperse stress and resist impact; well dewatering effect; high quality paper product; prolong the service time of felt. |
|
Suction press roll (copper shell) |
Stable hole pattern, excellent dewatering effect, stable hardness after long service time, wear resistance and corrosion resistance. |
|
Soft top press roll |
It has superior characteristic of releasing paper; wear, corrosion and impact resistance |
|
Hard top press roll |
It has superior characteristic of releasing paper; stable hardness under high temperature; good bearing capacity under the operation of vapor spray, chemicals, high pressure and scraper operation. |
|
Grooved roll |
Excellent wear resistance,dewatering performance |
|
Blind press roll |
Liner pressure can reach 380KN/m; the surface of the coated area has 21%-23% tapping; the speed is about 1000m/min; special bonding system ensures the safe operation under high speed and high linear pressure; good wear resistance, effective dehydration |
|
Plain press roll |
Good wear resistance |
|
Artifical stone roll |
Good paper releasing; wear resistance; scraper can be used; can satisfy severe rugged environment under high linear pressure |
|
Guide roll |
Good paper releasing; wear resistance |
|
Spreader roll |
Good wear resistance and frictional behavior |
|
Pick up roll |
Good paper releasing, anti-adhesive capacity; wear resistance |
|
Stone roll |
Compression strength: 200mpa; tensile strength: 70mpa; modulus of elasticity: 0.4*106E; rigidity: HV3500 |
|
Drying section |
Hard breaker stack roll |
Super wear and high temperature resistance; uniform surface |
Soft breaker stack roll |
Super wear and high temperature resistance; good after-hardening resistance |
|
Sizing/ coating section |
Coating roll |
Super wear resistance; good reinstatement and tread forming resistance; uniform surface; good wettability; high temperature and corrosion resistance; longer operational period; reduce downtime |
Sizing roll |
High temperature, wear, corrosion, thread forming resistance; good reinstatement; uniform and stable size; longer run operational period. |
|
Calender section |
Calender roll |
The use of nano material improves the performance of rubber significantly. Meanwhile, improves its elastic modulus and its impact resistance. It can keep safe performance although in severe rugged environment of high speed, high temperature, and high linear pressure. At the same time, roller surface lasts stability, good abrasion resistance, and a long grinding cycle. |
Reeling end |
Spool |
Good wear and tear resistance |
It is available of us to produce spindle head and roll body respectively.Then equip them together.
We will do dynamic balance of the roller, dynamic balance grade can be G1.6
Cast iron roll can improve wet sheet dyrness, and paper strength
We can supply plain press roller,grooved press roller,dandy roll,felt guide roll,table roll,breast roll,wire returning roll,wire driving roll,upper couch roll,stretch roll ,etc
it suit for paper-making industry,textile industry,etc
