Small Production line Full Automatic Toilet tissue paper production line

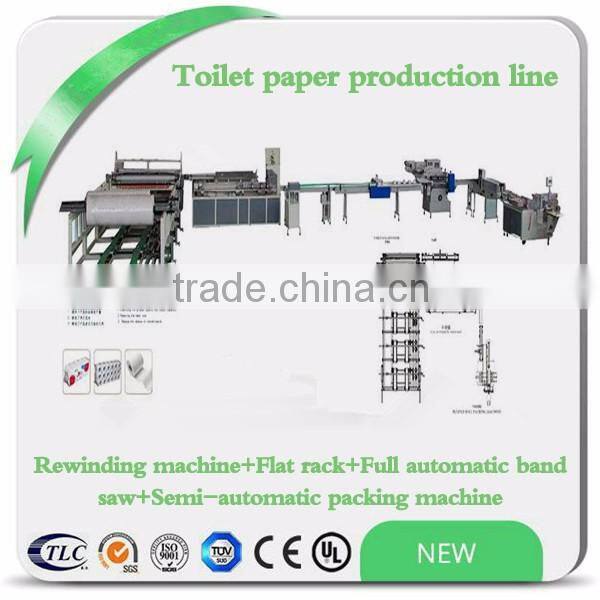

This line contains the rewinding machine, compressed frame, automatic sawing, semi automatic packaging machine ,it has competitive price and better feedback.
Machine Feature
1.Improving the product quality and output capacity;
2.Reducing the labor cost;
3.Reduce the chance of contamination.
Detailed parameters of each part

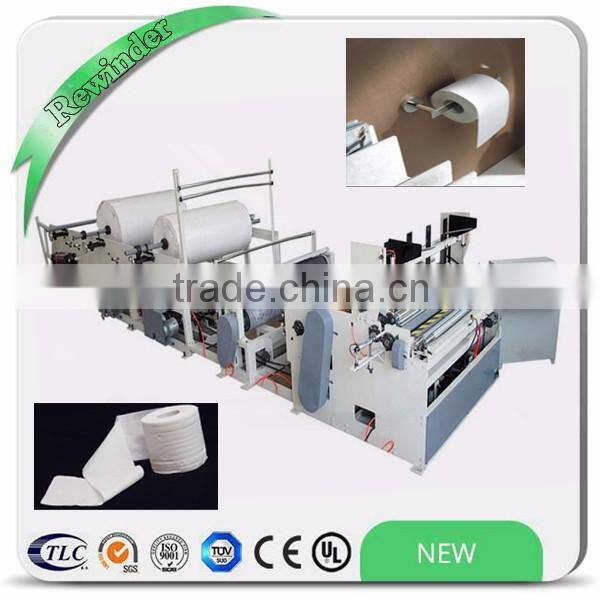

| Toilet Paper winder Technical Parameter | |||||||||
| Model | 1092 | 1575 | 1880 | 2100 | 2400 | 2800 | 3000 | ||
| Raw Paper Width (mm) | 1350 | 1750 | 2100 | 2300 | 2500 | 2850 | 3000 | ||
| Raw Paper Dia (mm) | φ1500 (other size,please specify) | ||||||||
| Raw paper core dia(mm) | φ76 (other size,please specify) | ||||||||
| Finished roll dia(mm) | φ40--φ125 | ||||||||
| Unwinding Stand | 1--3 ply,ordinary chain transmission or independent motor for conveying paper(optional) | ||||||||
| Perforation | Spiral perforation knife | ||||||||
| Perforation pitch | Chain wheel positioning | ||||||||
| Controller system | PLC controller,frequency conversion speed regular,touch screen | ||||||||
| Product range | Core roll of paper,coreless roll of paper | ||||||||
| Core Drop | Manual,automatic(optional) | ||||||||
| Coreless roll | Automatic shaft drawing | ||||||||
| Production speed | 150--200 m/min | ||||||||
| Tail trimming and sealing | Automatic | ||||||||
| Finished product output | Automatic | ||||||||
| Operation type | Remote control | ||||||||
| Power | 380V,50HZ | ||||||||
| Air pressure required | 0.5Mps (Prepared by user) | ||||||||
| Embossing | Single/Double embossing(steel to wool/steel/felt roller)(Optional) | ||||||||
| Edge embossing | Cylinder control,steel to steel structure | ||||||||

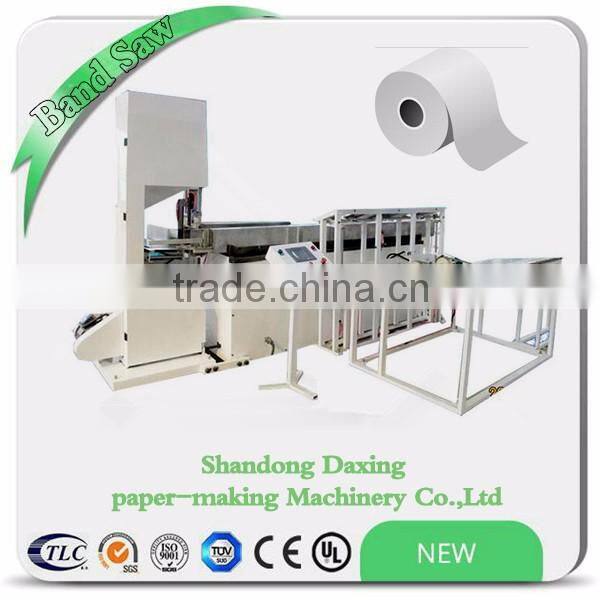

| Automatic Band Saw Technical Parameter | |||||||||
| Raw material width(mm) | 0--3000 (customized) | ||||||||
| Raw Paper Dia (mm) | φ70--φ130 | ||||||||
| Paper end size | To be set | ||||||||
| Product dimension error | ±1mm | ||||||||
| Controller system | PLC controller,servo driving,touch screen | ||||||||
| Cutting Mechanism | Cam structure | ||||||||
| Production speed | 50--70 cut/min | ||||||||
| Power | AC 380V,50HZ | ||||||||
| Required air pressure | 0.5Mpa | ||||||||

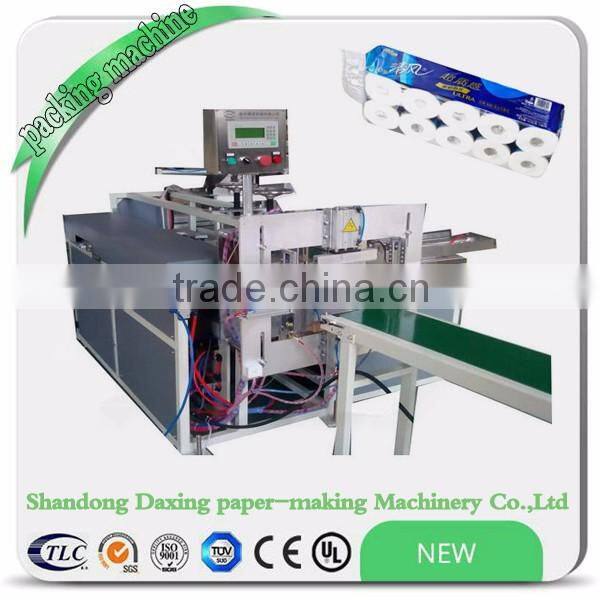

| Semi-automatic Bundle roll packing machine Technical Parameter | |||||||||
| Sealing | Up and Down,Right and left(optional) | ||||||||
| Packing size | Up and Down sealing,single φ65--φ100mm,height:120--200mm | ||||||||
| Right and left sealing,single roll φ80--φ125mm,height:100-150mm | |||||||||
| Speed | 6--10 bags/min | ||||||||
| Power | AC 220V ,50HZ | ||||||||
| Required air pressure | 0.5Mpa | ||||||||
Packaging&Shipping
Our products are packaged by wooden or steel box, the main characteristics of the products and which way our customs required will be the factor that we think about when we choose the way to package.
1.Payment: T/T. 30% deposits before production,70% balance to be paid before delivering(Western union and L/C are welcomed)
2.Production lead time: generally 10--15 days,depend on the roller type
3.Shipping freight are quoted under your requests
4.Shipping port: Qingdao port ,Shandong province
5.Discount are offered based on order quantities
6.MOQ:1 piece
Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Highly inspecting equipments in every working procedure, quality comes first;
Designing and fabricating targeted products according to the special requirements of clients;
After-sales Service
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Regularly visit clients to solve production problems;
Providing good maintenance service;
Fast & Safe Delivery;
Company Information
Shandong Zhangqiu Daxing Paper-making Machinery Co.,Ltd built in 1978, we are the professional manufacturer of roller which is used in the paper making machinery , including reserch and development, production and processing, sales and management and technique service. Now we are the member of Shandong Light Industry Association.
We have 36 engineers and 160 staff. Our fixed assets amounted to 30 million RMB .The casting capacity is up to 30 tons per piece. We have 58 sets of professional production and testing equipments. And 10 sets of large processing equipment (including numerical control lathe).The max diameter is 1.8 meters ,the max face length is 10 meters.We have passed the ISO 9001 international quality system certification. Our products sold throughout the country, and exported to the United States, Finland, Germany, the United Kingdom, Spain, Czech, Australia, Russia, Ukraine, Turkey, Iran, Egypt, Indonesia, Thailand, Peru, India and other countries and regions.
We can design special products according to customers' requirement.
If you are interested in, Do not hesitate to contact us!
