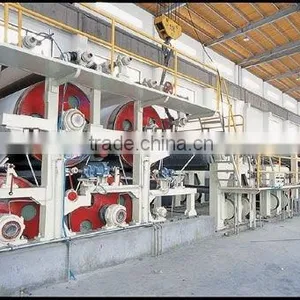

Help CenterHigh Quality Kraft Paper Machine
Related Products
Specifications
kraft paper machineBasis Weight Range : 120-350 g/m2
Trimmed Width : 2400 - 5500 mm
kraft paper machine
Grade: Kraft liner , A,B Grade carton board, high-strength board
Basis Weight Range : 120—350 g/m2
Trimmed Width : 2400 — 5500 mm
Annual Capacity : 50,000 — 300,000 tones
Max Working Speed : 700 m/min
Design Speed : 800 m/min
Description:
Wire Section :
Fully air cushion headbox or hydraulic headbox with dilution adjustment
Three wire or four wire combination with top former
Optimum design for best dewatering units arrangements
Cantilever for wire changing
Fully covered by stainless steel
Press Section
Vacuum Press+ dual felts L-N-P press + single felt L-N-P Press or glazing Press
Enclosed paper threading system
Gantry frame structure enables higher stable operation and lower mechanic vibration
Cantilever for faster felt, optional stainless steel covering for longer service life.
Dryer Section
Pick-up cylinder, VAC cylinder and sheet stabilizer
Enclosed gear transition box
Centralized thin oil lubrication
Separated rope carrying system, enclosed Hood with heat-cycling, pocket ventilationsystem
