Specifications
specifications:1) high speed: 130-160pcs/set
2) switzerland robatech glue box
3) mitsubihi plc
Product details
1) ZZB-120 automatic paper cone cup machine is exploited exclusively by our company ,and which supplies a gap of China market.
2) Our patent NO. is: ZL200720184219.7.

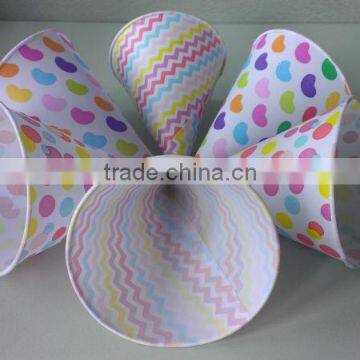

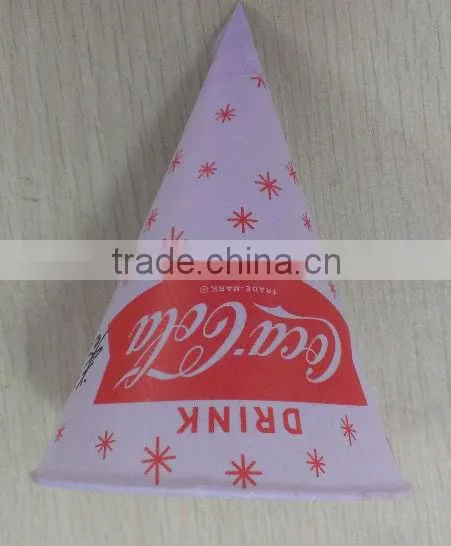

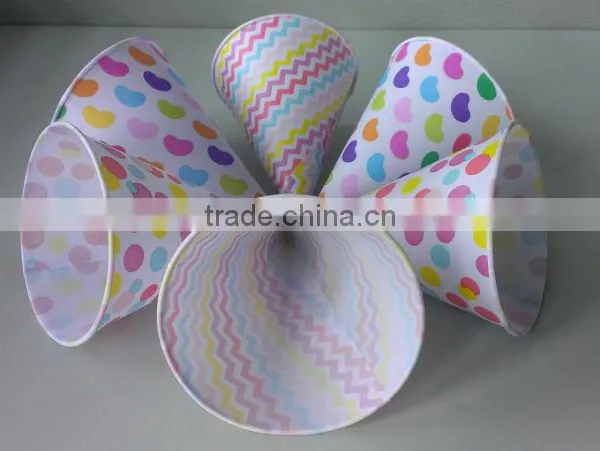

3) This equipment is special for water and other snacks cone container , the cone cup angle can between 28-50. it can make cone cup at 4, 4.5, 6, 8,10 oz at high speed 130-160pcs/min.
4) It can roll various of cone cups basis on different paper material as white kraft paper, PE coated paper, aluminum foil paper etc.
5) Pst CE.
6) It is equipped with micro computer controlled system, which make this machine well controlled.
7) Its photoelectric tracing system provide automatic alarm and stop.
8) One year warranty.
(MAIN TECHNICAL PARAMETERS)
GENERAL POWER |
8KW |
PAPER REQUEST |
80-150g/m^2 WHITE KRAFT PAPER , OFF SET PRINT PAPER , ALUMINIZED PAPER |
POWER SUPPLY |
220V50HZ/ 380V50HZ OR CUSTOMIZE |
SPEED |
160-190PCS/MIN |
WEIGHT |
1000KGS |
DIMENSION |
1850MM L*1800MM W×1800MM H |
And packaing with wooden case.
Related pictures
