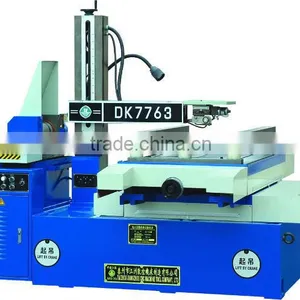

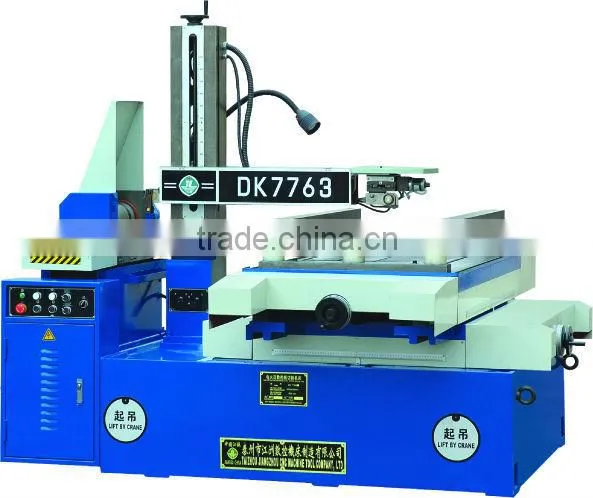

DK7763 Medium Speed Wire Cut Edm
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
CNC
Place of Origin
Jiangsu, China
Brand Name
JZ
Model Number
DK7763
Voltage
AC380V/220V
Power(W)
≤2kw
Dimension(L*W*H)
2265 1865 1980
Weight
3500
Certification
TM ISO9001:2008
Warranty
1 year
Specifications
CNC Wire Cutting Machine (DK7763)1.accurate/easy control
2.linear guide rail
3.efficient/heavy/low noise
4.TM/ ISO9001
| Type | DK7763 |
| Worktable Size | 790×1260 |
| Worktable Travel | 630×1000 |
| Max. Cutting Speed | 100 |
| The Largest Storage Wire Length | 500 |
| Max. Workpiece Height | 600 |
| Wire Electrode Diameter | Φ 0.12~ Φ 0.18 |
| Precision (Cutting the Octagon) | 0.015 |
| Taper (Optional) (mm) | 6°~60°/80 |
| Max. Workpiece Weight (kg) | 1000 |
| Machine Weight | 3500 |
| Machine Dimension | 2350×1950×1950 |
| Power Consumption | AC380ν/220ν50HZ≤2KW |
The high-end machine adopts precise ball screw linear guide track.
High column matches electric lift to adjust the gap of guide wheel and large swing taper machine matches electrode wire wire expansion mechanism.
We also produce semi-closed environmental-protection machine.
The diameter range of moly wire is 0.12mm~Φ0.18mm (moly wire diameter over than Φ0.18mm should be customized).
The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
