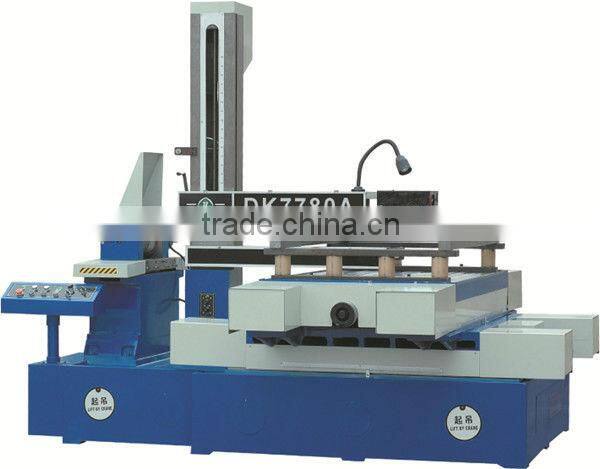

DK7780A Medium Speed Wire Cut Edm

DK7780A Medium Speed Wire Cut Edm thumbnail-1
DK7780A Medium Speed Wire Cut Edm photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Taizhou Jiangzhou Numerical Control Machine Tool Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DK7780A
Voltage AC380V/220V
Power(W) ≤2kw
Dimension(L*W*H) 2700 2300 1900
Weight 4700
Certification TM ISO9001:2008
Warranty 1 year

Specifications

CNC Wire Cutting Machine (DK7780A)
linear guide rail
accurate, easy control
efficient, heavy, low noise
TM/ ISO9001:2008

DK7780A medium speed wire cut edm

Type DK7780A
Worktable Size 880×1440
Worktable Travel 800×1200
Max.Workpiece Height 600
Wire Electrode Diameter Φ 0.12~ Φ 0.18
Taper (Optional) (mm) 6°~60°/80
Max. Workpiece Weight(kg) 1500
Machine Weight (kg) 4700
Machine Dimension MM 2700×2300×1900
Power Consumption AC380ν/220ν50HZ≤2KW

 DK7780A medium speed wire cut edmDK7780A medium speed wire cut edm

The high-end machine adopts precise ball screw linear guide track.

High column matches electric lift to adjust the gap of guide wheel and large swing taper machine matches electrode wire wire expansion mechanism.

We also produce semi-closed environmental-protection machine.

The diameter range of molybdenum wire is 0.12mm~Φ0.18mm (moly wire diameter over than Φ0.18mm should be customized).

The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
