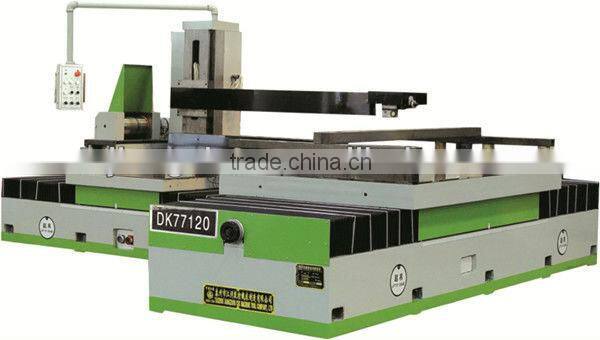

DK77120 Medium Speed Wire Cut Edm

DK77120 Medium Speed Wire Cut Edm thumbnail-1
DK77120 Medium Speed Wire Cut Edm photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Taizhou Jiangzhou Numerical Control Machine Tool Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin China
Brand Name JZ
Model Number DK77120
Voltage AC380V/220V
Power(W) ≤2kw
Dimension(L*W*H) 4200 3700 2000
Weight 10000
Certification TM ISO9001:2008
Warranty 1 year

Specifications

long travel cnc wire cutting DK77120
accurate easy operate
linear guide rail
high efficiecy low noise
TM ISO9001:2008

DK77120 medium speed wire cut edm

Type DK77120
Worktable Size 1300×1900
Worktable Travel 1200×1600
Max. Cutting Speed 100
The Largest Storage Wire Length 400
Max. Workpiece Height 500
Wire Electrode Diameter Φ 0.12~ Φ 0.18
Precision (Cutting the Octagon) 0.03
Taper (Optional) (mm) 6°~12°/80
Max. Workpiece Weight (kg) 4000
Machine Weight 10000
Machine Dimension 4200×3700×2000
Power Consumption AC380ν/220ν50HZ≤2KW

 DK77120 medium speed wire cut edmDK77120 medium speed wire cut edm

The high-end machine adopts precise ball screw linear guide track.

High column matches electric lift to adjust the gap of guide wheel and large swing taper machine matches electrode wire wire expansion mechanism.

We also produce semi-closed environmental-protection machine.

The diameter range of molybdenum wire is 0.12mm~Φ0.18mm (moly wire diameter over than Φ0.18mm should be customized).

The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
