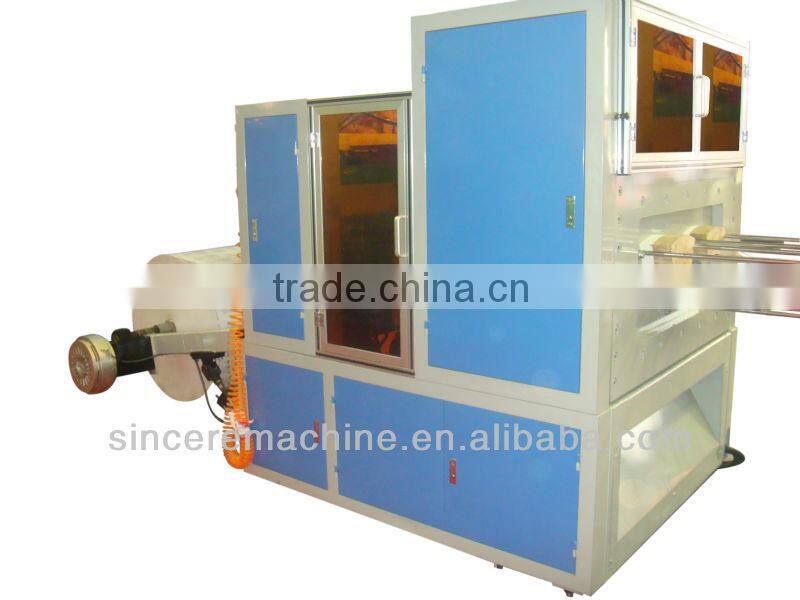

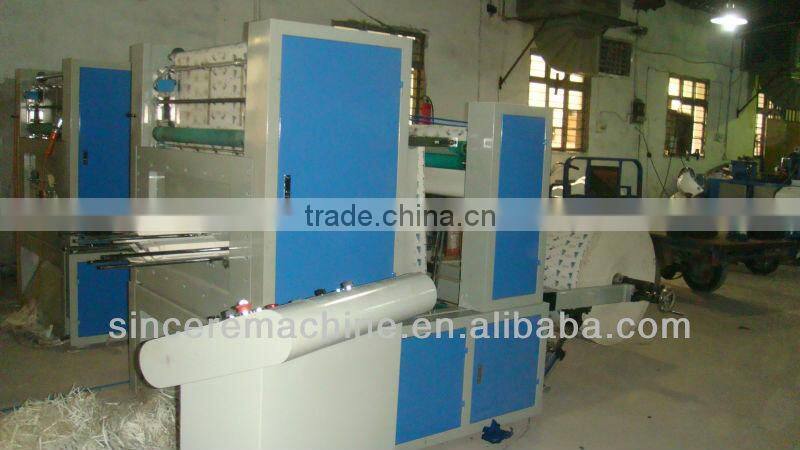

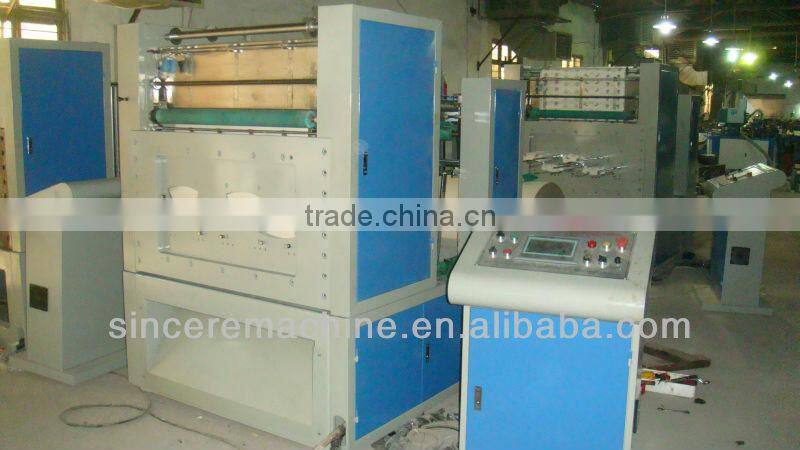

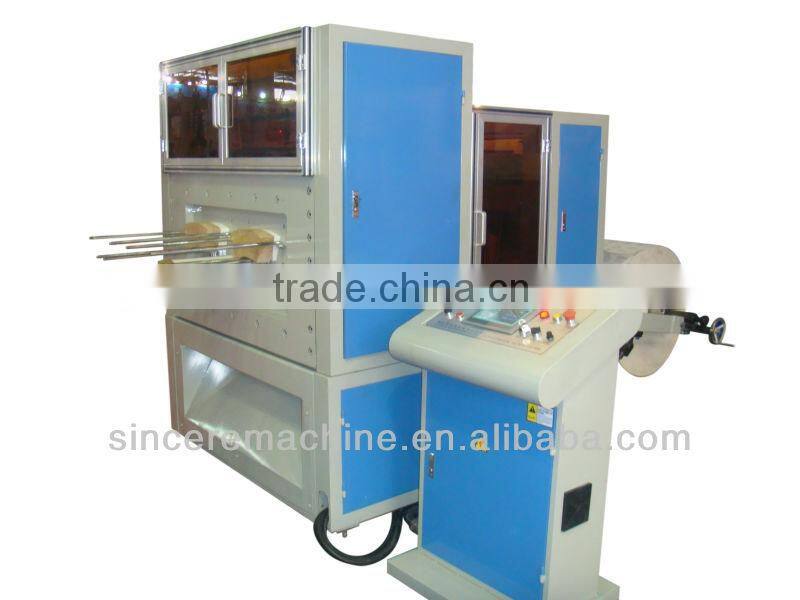

CY-850B automatic roll punching machine

Specifications

CY-850B rotary punching machine
1)with high speed about 600-1000pcs/min
2)AC Servo Motor
3)Automatic lubricating system

CY-850B Automatic ratory die cutting machine especially designed for cutting the paper rolls into shaped sheet for forming the ice cream cone cup , paper cups,etc.



1) Servo Motor



2),High speed ,600-1000 pcs/min



3)

,Cut the roll paper directly , control the waste





4) Automatic lubricating system

5),Strong frame ,easy operate





6),Automatic and request less labour





MAIN TECHNICAL PARAMETERS



Model	CY-850B
Shaped sheet use	Cone Sleeves,paper cpus, ice cream cone cups,paper bowls
Roll Max.width	850mm
Punching speed	Max.200strokes/min
Material	Pe Laminated Paper, Aluminum Foil Paper, Dry Wax Paper
Control System	AC Servo Motor
Electrical Requirement	8.5kw
Dimension	2800*1600*1850
Weight	2200kg
