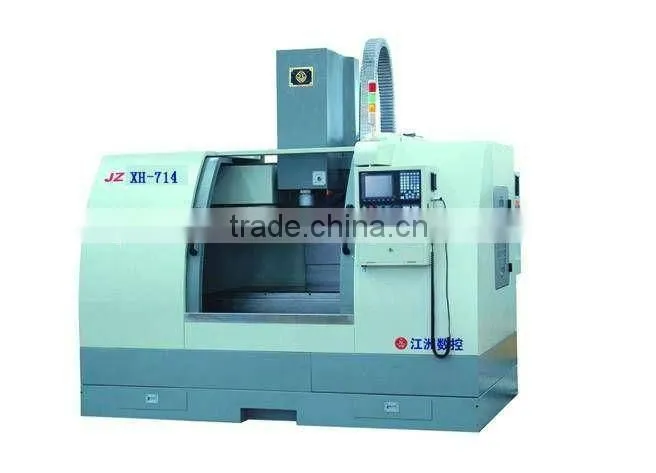

5 Axis Machining Center (XH714)

5 Axis Machining Center (XH714) thumbnail-1
5 Axis Machining Center (XH714) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Taizhou Jiangzhou Numerical Control Machine Tool Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical
Place of Origin Jiangsu, China
Brand Name JZ
Model Number XH714

Specifications

5 axis machining center (XH714)
4 or 5 axis linkage
imported bearing
Taiwan CNC ATC system and spindle
TM/ISO9001:2008



5 axis machining center (XH714)

 5 axis machining center



Type XH714
Worktable size 400×840mm
Worktable T-grooves 3~18
Travel X 650mm
Y 400mm
Z 500mm
Distance between spindle end and worktable surface 125~625mm
Distance between spindle center and Z axis guide rail surface 495mm
Taper of spindle BT40
Max. RPM of spindle 8000rpm/6000rpm
Motor power of spindle 5.5/7.5kw
Feeding rate(Related to control system 1~5000mm/min
Positioning accuracy ±0.01mm
Repeated positioning accuracy ±0.005mm
Machine weight 3200kg
Machine dimension(L×W×H) 2450×2200×2660mm
Max. workpiece weight 500kg
ATC system(optional) 10/16/20/24







 5 axis machining center (XH714)

The machining center can achieve linkage of 4-axis or 5-axis and has milling, boring, drilling, reaming, tapping and other processing functions.

It can complete continuous processing of all the complex parts.

Rapid feeding system and high-speed toolchanger can reduce the auxiliary cutting time to ensure the high production efficiency of the machine tool.

It is fit for the processing of complex precision molds, but also for the produce of multi varieties and batch workpieces.

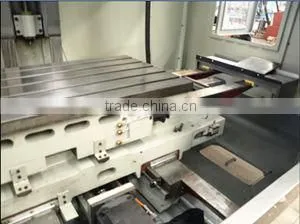

 5 axis machining center (XH714)5 axis machining center (XH714)

Features:

High reliability and excellent stability

German Siemens or Japanese Fanuc or Mitsubishi NC system

CNC machining center: four-axis linkage or five-axis linkage

Imported bearing

Imported coupling

High-quality resin sand cast parts

Taiwan made spindle, unclamping cylinder, precision ball screw and locking nut

Part programming

Error compensation

Drilling and milling processing functions

Taiwan made CNC ATC system (only for machining center)
