Specifications
CNC Abrasive Wire Cutting Machine (QT5640)conductor,semiconductor cut

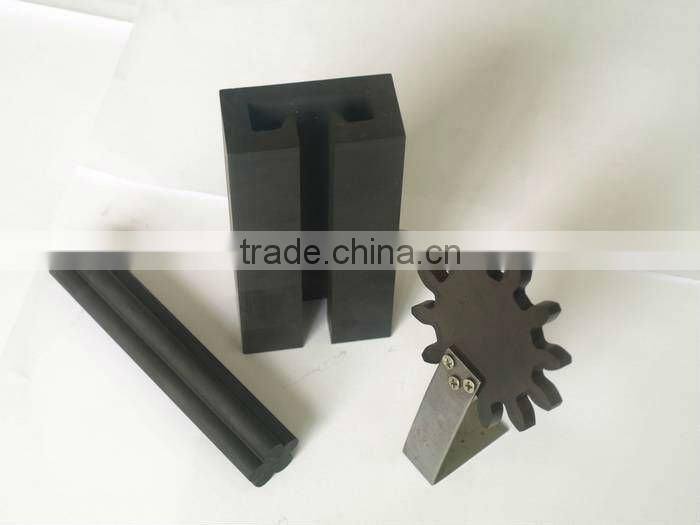

graphite,epoxy board,carbide,stone..
TM/ ISO9001:2008

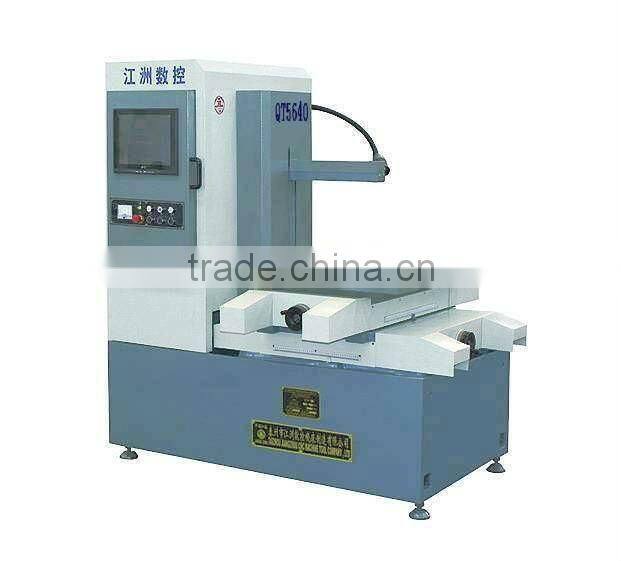

CNC Abrasive Wire Cutting Machine(QT5640)
| Technical Data | |||
| Type | QT5640 | ||
| Worktable Tavel(mm) | 400×500 | ||
| Max. Cutting Thickness(mm) | 135/175/400 | ||
| Max. Cutting Speed(mm²/min) | 600 (when cutting graphite materials) | ||
| Best Surface Roughness(μm) | Ra1.5 | ||
| Dia. of Abrasive Wire(mm) | Φ1.2 | ||
| Impulse Feeding Equivalent(mm) | 0.001 | ||
| Total Power of Machine(kW) | ≤2 | ||
| Machine Net Weight(kg) | 1300 | ||
| Controller | computer controller | ||
This Machine is widely used for cutting graphite electrodes and shaping of epoxy board, hard alloy materials, marble, jade, optical glass, ceramic, ferrite, semiconductor, silicon carbide, refratory bricks, etc.
QT56 Series CNC Abrasive Wire Cutting Machine is controlled by digital process. It can machine various complex shapes and parts composed by linear lines and circular arc.
The machine tool is composed of bed, coordinate worktable, abrasive wire motion structure, coolant liquid box, lubrication system, illumination and other parts.
1. Bed
The machine tool is the cast iron box.
Its upper part takes the tray shape.
On the bed, there are coordinate table and moly wire motion mechanism and other components.
Electrical parts arrange in internal or the front side of the bed.
2. Coordinate worktable:
The coordinate worktable is composed of the worktable, lower trailing bar, precision roller (slide) screw rod pair and the gearbox.
Use roller track structure for the horizontal and lengthwise movements of the trailing bar.
The worktable movement is realized through the stepped motor, the deceleration gear set and the screw rod pair.
The screw rod nut is pre-tightened axially so as to make the gap between the screw rod and the nut close to zero.
There are 2 T-shaped grooves on the worktable for fixing the clamps.
3. Coolant Liquid Tank
Cooling pump send the coolant liquid (kerosene) to the processing area.
Coolant liquid returns to the tank through water pipe. After filtration, recycling.
Coolant tank should be cleaned regularly and timely replaced of the cooling fluid.
Accessory:
1. clamp
2. bottom bolt, bottom nut, ajustment handle
3. tightening spanner
Spare parts:
synchronous belt: 2
molybdenum wire: 2
QT5640 CNC Abrasive Wire Cutting Machine
