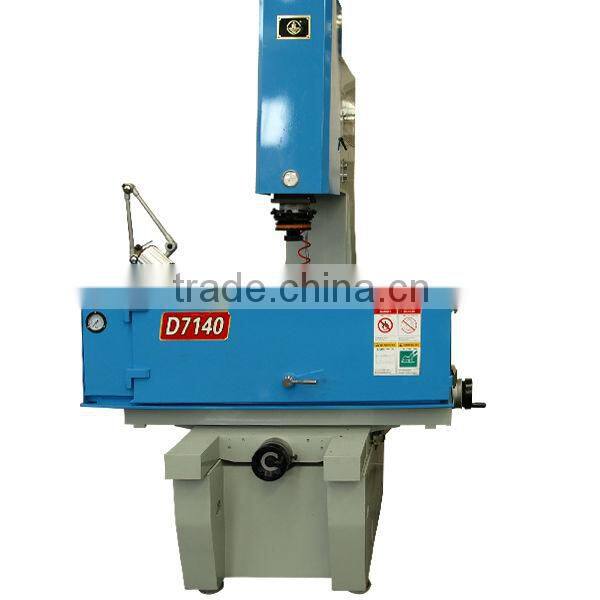

cnc spark erosion machine D7140

Specifications

cnc spark erosion machine D7140
Sanyo DC servo motor
most advanced motherboard
high accurate easy operate
TM ISO9001:2008







Machine type Unit D7140 Worktable size(L×W) mm 650×400 Work tank dimension(L×W×H) mm 1350×630×410 X axis travel mm 400 Y axis travel mm 300 Z axis travel mm 250+250 Distance between electrode&worktable mm 650 piece weight kg 750 Max.electrode weight kg 70 Machine weight kg 1800 Machine dimension(L×W×H) mm 1500×1500×2250

This series of machine matches with the pulse source cabinet.

Z axis matches Japanese Sanyo DC servo motor and it has z axis cnc features.

X,Y axes adopt precise ball screw and raster display to conduct coordinate display, which make high precision positioning.



The electric box uses the most advanced industrial special mainboard.

As long as you input a few parameters like Z-axis depth, it will bring up suitable data from the rich expert database system, automatically achieving roughing to finishing.
