Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > CNC Die Sinking EDM D7145

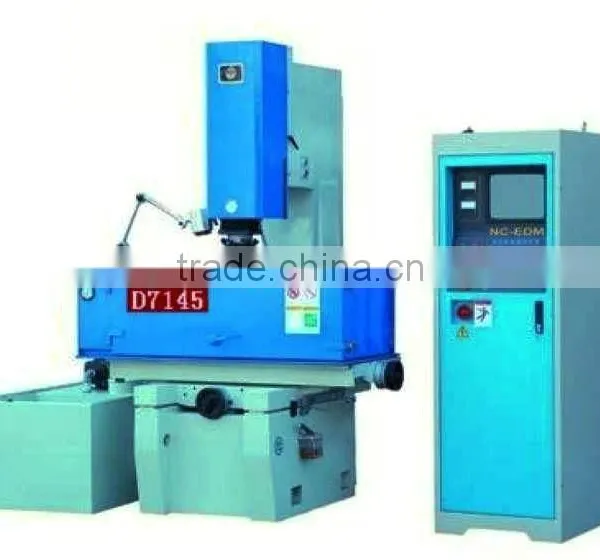

CNC Die Sinking EDM D7145
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JZ
Model Number:
D7145
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
JZ
Model Number
D7145
Condition
New
Specifications
CNC Die Sinking EDM D7145Sanyo DC servo motor
most advanced motherboard
easy operate
TM ISO9001:2008
CNC Die Sinking EDM
| Parameter | Unit | D7145 |
| Worktable Size | mm | 720×450 |
| Work tank Dimension | mm | 1400×710×410 |
| X axis Travel | mm | 450 |
| Y axis Tracel | mm | 350 |
| Z axis Travel | mm | 250+250 |
| Distance between Electrode & Worktable | mm | 680 |
| Max. Workpiece Weight | kg | 800 |
| Max. Electrode Weight | kg | 80 |
| Machine Weight | kg | 2000 |
| Machine Dimension | mm | 1500×1500×2250 |
This series of machine matches with the pulse source cabinet.
Z axis matches Japanese Sanyo DC servo motor and it has Z axis features.
X,Y axes adopt precise ball screw and raster display to conduct coordinate display, which make high precision positioning.
The electric box uses the most advanced industrial special mainboard.
As long as you input a few parameters like z-axis depth, it will bring up suitable data from the rich expert database system, automatically achieving roughing to finishing.

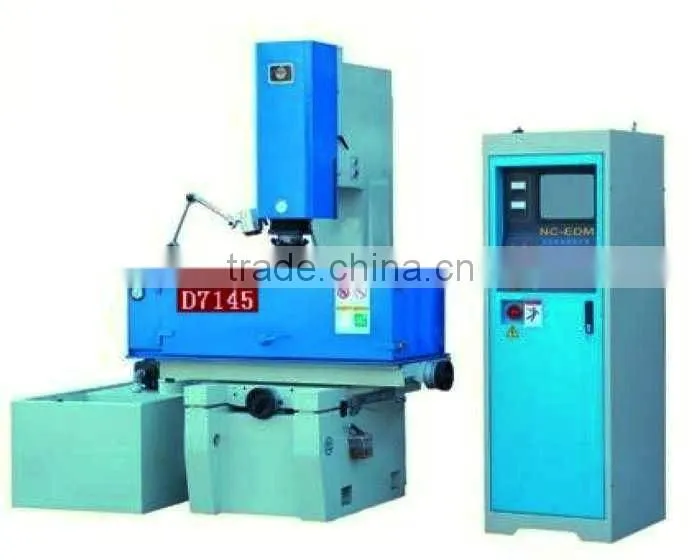

D7145 CNC Die Sinking EDM
