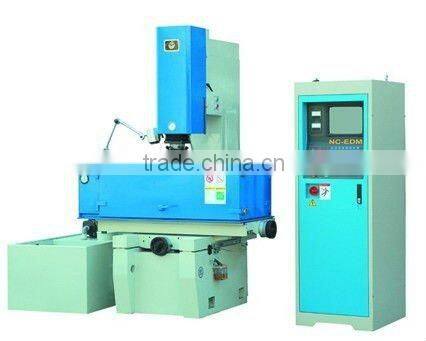

Cnc Edm Shaping Machine (D7150)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JZ | |
| Model Number | D7150 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Type | Unit | D7150 |
| Worktable Size | mm | 800×500 |
| Work tank Dimension | mm | 1850×780×500 |
| X axis Travel | mm | 500 |
| Y axis Tracel | mm | 400 |
| Z axis Travel | mm | 250+300 |
| Distance between Electrode & Worktable | mm | 700 |
| Max. Workpiece Weight | kg | 800 |
| Max. Electrode Weight | kg | 100 |
| Machine Weight | kg | 2200 |
| Machine Dimension | mm | 1600×1500×2300 |
This series of machine matches with the pulse source cabinet.
Z axis matches Japanese Sanyo DC servo motor and it has Z axis cnc features.
X,Y axes adopt precise ball screw and raster display to conduct coordinate display, which make high precision positioning.
The electric box uses the most advanced industrial special mainboard.
As long as you input a few parameters like Z-axis depth, it will bring up suitable data from the rich expert database system, automatically achieving roughing to finishing.
Packaging details:wooden container
Delivery detail:shipped in 20-40days after payment
cnc edm machine
| 1..Do you provide samples? |
| No |
| 2.Could your engineers go to our factory to install the machine and train our workers? |
| Yes,our engineers cuold go to your factory and assist you. |
| 3.Are you manufacturer? |
Yes,we are manufacturer.We have our technical team
|
