1.Feature:

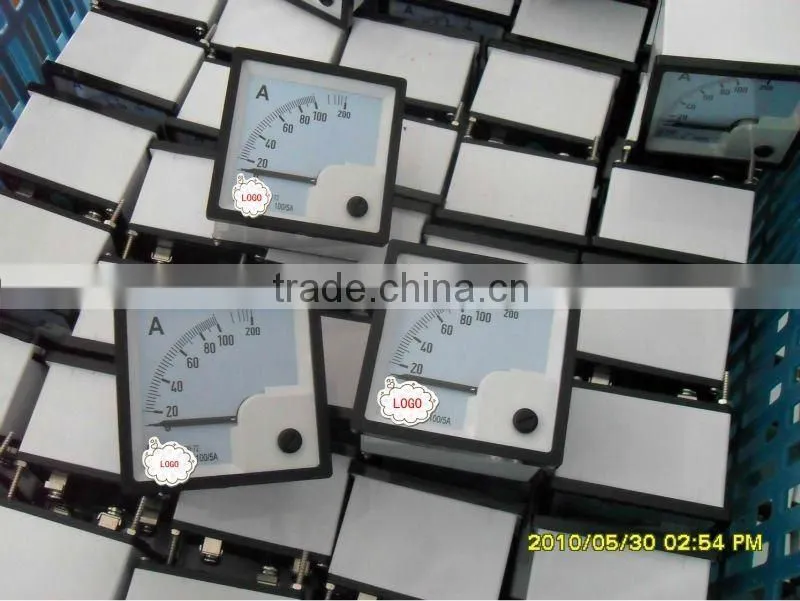

1)Square shape analogue ampere panel meter
2)Size 96x96 .72*72,48*48
3) 50/5A
4)Accuracy: Class 1.5
5)ABS and PC material
2.Specification and Technical:
Features:
Measuring the current with frequency ranging from 15Hz to 100Hz, these meters indicate true RMS values and are substantially independent of system waveform.The nominal mark is T.
Accuracy: Class1.5
Case: Non-combustile ABS plastic material is used for making SF series'external case,and PPO plastic material is used for SF series's base; while Non-combustible PC plastic material is used for making SFT series'external case and base. Both of which will not suffer deformity under long-term use at 70°C and 120°C respectively. The highest enclosure code is IP54.
Changeable scale: Scale can be changed without opening meter, convenient to use, dust proof. Under the same secondary current, scale-change can be conducted without loss of accuracy or damaging the meter (48×48 model must have identical scale class range).
Mounting: flush mounting with bracket.

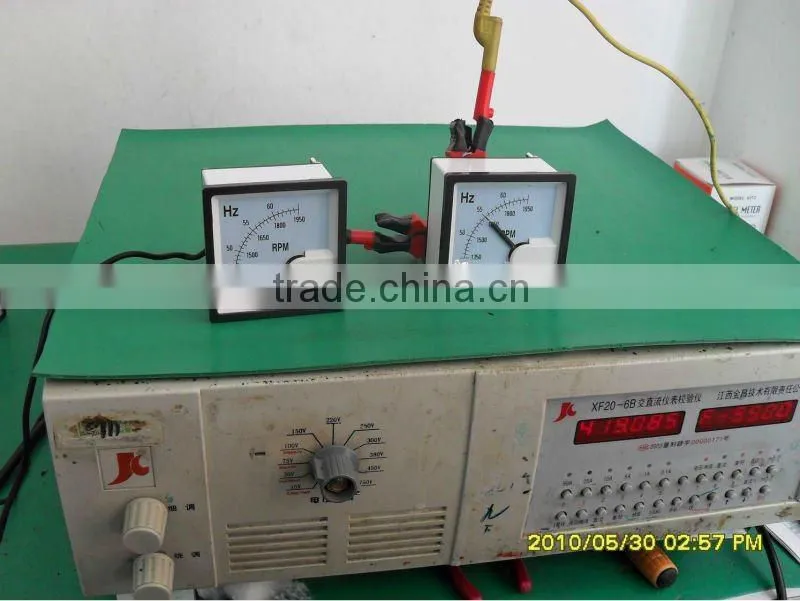

3.Special prodution Picture

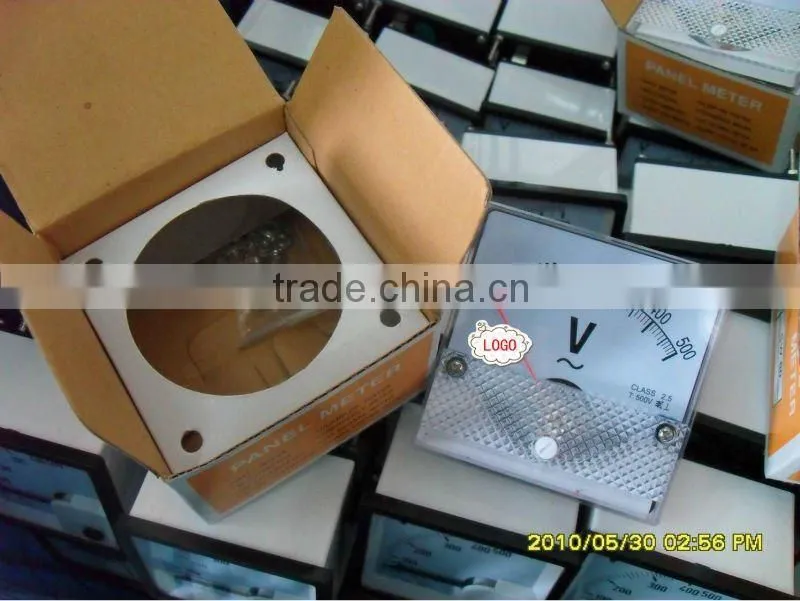

4.Package ready for shipment
5.Production Line:
6.Certificate List
7.Attend the Canton Fair and others:
8.Term of Payment:
(1).Order Amount<USD3000;
All payment paid before shipment
(2).Order Amount>USD3000:
30% deposit, 70% balance against copy BL.
