Home > Instruments & Meters > Test Instrument > Test Machine > 10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice

Name: 10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice
Brand: Allwin
SKU: 115622083
Availability: InStock

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice thumbnail-1

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice thumbnail-2

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice thumbnail-3

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice thumbnail-4

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice photo-1

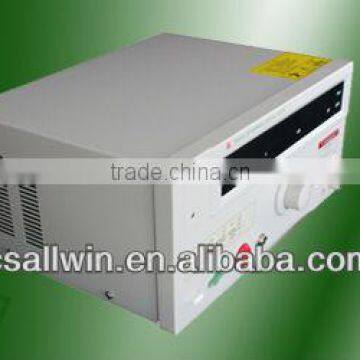

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice photo-2

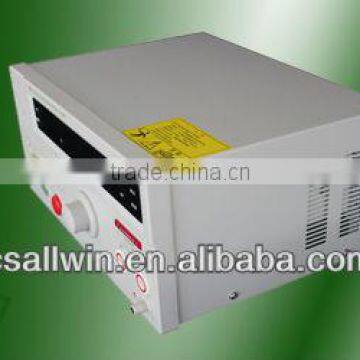

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice photo-3

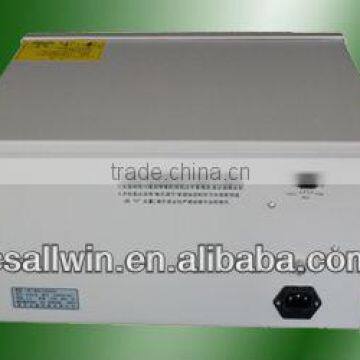

10kV Ac/dc Withstanding Voltage Tester Hipot 10kv,ac Power Tester,hipot Supplier's Choice photo-4

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Allwin

Model Number:

CS2671BX

Contact Supplier Request Quote Chat Now

Nanjing Allwin Instrument Science And Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Allwin

Model Number CS2671BX

Power Electronic

Usage Auto Testing Machine

Excellent Performance

1. High voltage, low current, accuracy measuring

2. Continuous setup of leakage current and test time, good adaptability

3. Display tested real values simultaneously (time, voltage, current), and audible and visual alarm with disqualification

4. High voltage breakdown protection

The instrument can serve several purpose, for example, output current of DC port can realize the test of withstanding voltage and leakage current of capacitor, reverse voltage and reverse leakage current of high-voltage silicon stack and transistor, etc

Technical Parameters

MODEL			CS2671AX		CS2671BX		CS2671TX
A C W	Output voltage		(0.00~10.00)kV
	Max. output power		100VA		500VA		1000VA
	Max. current		20mA		50mA		100mA
	Current range		2mA,20mA		2mA,20mA,50mA		2mA,20mA,100mA
	Output waveform		sine wave
	Waveform distortion		≤5%
	Test time		0.0s~999s 0.0= continue
D C W	Output voltage		(0.00~10.00)kV
	Max. output power		100VA		500VA			--------------------
	Max. current		10mA		20mA			--------------------
	Current range		2mA,10mA		2mA,20mA			--------------------
	Ripple factor		≤5%
	Test time		0.0s~999s 0= continue
Volt meter	Range		(0.00~10.00)kV
	Accuracy		±(5%+5 words )
	resolution		10V
	Displayed value		RMS
Ammeter	Measure Range	AC	0.100mA ~ 20.00mA		0.100mA ~ 50.00mA		0.100 ~ 100.0mA
		DC	0.100mA ~ 10.00mA		0.100mA ~ 20.00mA		--------------------
	Resolution	AC	2mA:1uA,20mA:10uA,50mA(100mA):0.1mA
	Accuracy		±(5%+5 words )
Timer	Range		0.0s~999s
	Min. resolution		0.1s
	Accuracy		±(1%+50ms)
PLC interface			no	no		Yes
Remote interface			yes

The difference between CS2671A/B and CS2671AX/BX:

1. Time display

Three digital tubes display, the maximum test time can be up to 999s, the minimum time is 0.1s.

(CS2671AX/BX) (CS2671A/B)

2. Time pre-set

For CS267Xseries, press the up or down key to increase or decrease the time pre-set value; Press the up to key increase the pre-set time; press the down key to decrease the pre-set time. If the pre-set time is set 0, the tester will continuously do the high voltage test unless the stop key is pressed or the testing leak current is more than the pre-set leak current. While CS267 series need to press the time dial.

Time pre-set

(CS2671AX/BX) (CS2671A/B)

3. Time count method

For CS267X series hipot tester, if the time pre-set is set to 0, the tester will count up the test time; if the test time is not set to 0, then the tester will count down the time. (For example, if the test time is set to 60s, then the tester will do the test until the time is count down to 0)

For CS267 series hipot tester, if the timer switch is off, the tester will not count the test time.

4. The output high-voltage indicator

For CS267Xseries hipot tester, there is a danger indicator on the front panel. The high voltage indicator will light as long as there is high voltage in the high voltage output terminal. The indicator is not controled by the main circuit, which protect the operator.

5. PLC interface

9-pin PLC interface, can control the test, reset, under testing, fail(alarm), pass signal remotely. The contact signal is stable and easy to capture. The previous CS267series PLC signal is pulse signal(Pass), is difficult to capture the PASS signal.
