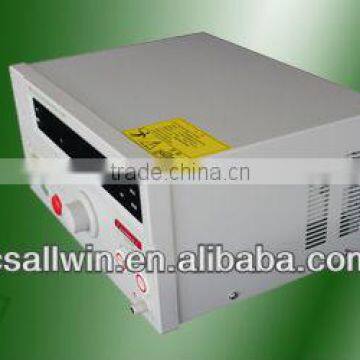

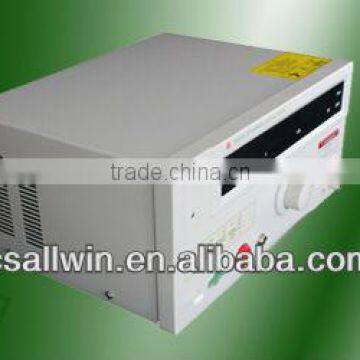

Help CenterHipot 10kv,ac Power Tester,hipot Withstanding Voltage Tester 10kV Voltage Source CS2671AX
Related Products
-
50kV Ac/dc Withstanding Voltage TesterNegotiableMOQ: 1 Unit -
Programmable Hipot Tester CS9914AXNegotiableMOQ: 1 Unit
-
Programmable Hipot Tester CS9914BXNegotiableMOQ: 1 Unit
-
5kV ac Hipot TesterNegotiableMOQ: 1 Unit
-
Withstanding Voltage Tester AC/DC Dielectric Strength Tester 5kV High Voltage TesterNegotiableMOQ: 1 Unit
- Excellent Performance
1. High voltage, low current, accuracy measuring
2. Continuous setup of leakage current and test time, good adaptability
3. Display tested real values simultaneously (time, voltage, current), and audible and visual alarm with disqualification
4. High voltage breakdown protection
The instrument can serve several purpose, for example, output current of DC port can realize the test of withstanding voltage and leakage current of capacitor, reverse voltage and reverse leakage current of high-voltage silicon stack and transistor, etc
- Technical Parameters
|
·Input power: 220VAC/50Hz OR 110V input . ·ACW Output voltage: (0.00~10.00)kV Max. current:20mA Max. output power:200VA Current range:0~2 mA /20 mA Output waveform: Sine wave Waveform distortion: ≤5% Test time: 0.0s~999s 0= continue ·DCW Output voltage: (0.00~10.00)kV Max. current:10 mA Max. output power:100VA Current range:0~2 mA /10 mA Ripple factor: ≤5% Test time: 0.0s~999s 0= continue ·VOLTER METER Range: (0.50~10.00)kV Accuracy: ±(5%+5 words ) Resolution: 10V Displayed value: RMS ·AM METER Range: (0.100 ~ 20.00)mA ACW (0.100 ~ 10.00) mA DCW Resolution: 2mA range:1uA; 20 mA range:10 uA, Accuracy: ±(5%+5 words ) ·TIMER Range: 0.0s~999s Resolution: 0.1s Accuracy: ±(1%+50ms) · 9-pin PLC interface on the rear panel · 5-core remote interface on the front panel |

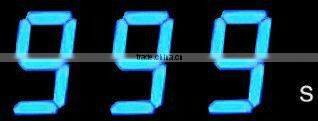

1. Time display
Three digital tubes display, the maximum test time can be up to 999s, the minimum time is 0.1s.
2. Time pre-set
For CS267Xseries, press the up or down key to increase or decrease the time pre-set value;
Time pre-set
3. Time count method
For CS267X series hipot tester, if the time pre-set is set to 0, the tester will count up the test time; if the test time is not set to 0, then the tester will count down the time. (For example, if the test time is set to 60s, then the tester will do the test until the time is count down to 0)
For CS267 series hipot tester, if the timer switch is off, the tester will not count the test time.
4. The output high-voltage indicator
For CS267Xseries hipot tester, there is a danger indicator on the front panel. The high voltage indicator will light as long as there is high voltage in the high voltage output terminal. The indicator is not controled by the main circuit, which protect the operator.

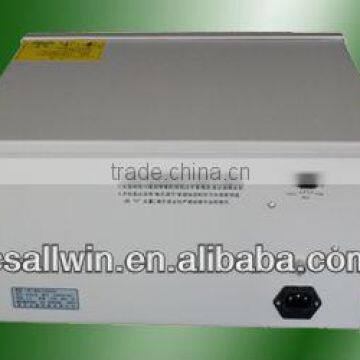

5. PLC interface
9-pin PLC interface, can control the test, reset, under testing, fail(alarm), pass signal remotely. The contact signal is stable and easy to capture. The previous CS267series PLC signal is pulse signal(Pass), is difficult to capture the PASS signal.
7.1 Pre-set the test time
7.1.1 Presetconditions
The tester must be in the reset state, the testercan not be in the test status or the alarm status.
7.1.2 Presetmethods
7.1.2.1 Increase
Press the UP buttonon the front panel, the time preset value will plus 1; Press the up button continuously and hold the button, the time preset value will increase 1 continuously. If a certain value is added to, the time preset value will increase 10 untilup to 999s.
7.1.2.2Decrease
Press the DOWN buttonon the front panel, the time preset value will minus 1; Press the down button continuously and hold the button, the time preset value will minus 1 continuously. If a certain value is decreased to, the time presetvalue will decrease 10 until up to 0.0s.
7.2 Preset the ACW leak currentalarm value
7.2.1 Presetconditions
Pop-up the AC / DC switch button in the front panel to make the tester be on the ACW test status. Note: If the tester is single ACW test, this step can be ignored.
7.2.2 Presetmethods
Press the test /preset buttons, the LED window show the current pre-set value. Adjust the potentiometer clockwise, the current pre-set value will be increased. Counterclockwiseadjustment will reduce the pre-set leak current. If the presetcurrent is up tothe desired value, pop-up the test /preset button.
7.3 Preset the DCW leak currentalarm value
(Single ACW tester is without DCW test)
7.3.1 Presetconditions
Press the AC / DC switch button in the front panel to make the tester be on the DCW test status.
7.3.2 Presetmethods
Press the test / preset buttons, theLED window show the current pre-set value. Adjust the potentiometer clockwise, the current pre-set value will be increased. Counterclockwise adjustment will reduce the pre-set leak current. If the preset current is up to the desired value, pop-up the test / preset button.
7.4 Adjust the output voltage
When the voltage regulator knob is at the position of 0, there is no high voltage output even if starts the tester. Press the start button and adjust the output voltage knob clockwise slowly until the output voltage reaches to the required voltage.
8.1 Preparation of test
8.1.1Avoid electric shock
Please wear insulated gloves and stand on the insulation pad when operate the hipot tester. Note: the withstanding voltage of insulating gloves and insulated pad should be twice than the maximum output voltage of the tester.
8.1.2 Set the alarm value of leak current and test time
Please refer to the seventh chapter.

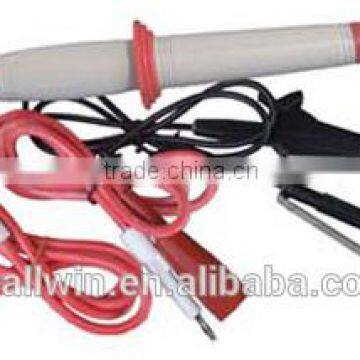

8.1.3 Connect the DUT(Device Under Test) to the tester
Please confirm the following before connection:
1, The tester is shut down or on the reset status;
2, The high voltage indicator is not light;
3, The voltage window show 0;
Connect the current measurement loop terminal firstly then connect DUT to the high voltage terminal.
8.2 Test mode
8.2.1 Manual test
If the test time is set to 0, the tester will not judge the test time during testing. The tester is in a continuous test condition in the test.
After the "START" button is pressed, the test light will be lit; adjust the output voltage knob at a desired value, the tester will do the test continuously. During the test, if the test current is great than the preset value, the tester will alarm with sound and light. Press the "STOP" key, the alarm will be stopped. Replace the DUT and continue to test. After testing, press the “STOP” key to stop the test.
8.2.2 Automatic test
If the test time is not set to 0, the tester will enter into the automatic test. After the "START" button is pressed, the test light will be lit; adjust the output voltage knob at a desired value, the tester will do the test. During the test, if the test current is great than the preset value, the tester will alarm with sound and light. Press the "STOP" key, the alarm will be stopped. If the test time is return to 0 and the tester is not alarm, the test is passed and the DUT(Device Under Test)T is eligible.
Note: During DCW test, confirm the measurement circuit is without any electricity before replace another device.
Qualifications and Certificates
1.Company Qualification of ISO9001
2.Certificates:CNAS,SGS,Factory Reports,the third party calibration
3.Advantage:Own factory,with high quality and reasonable price
4.Delivery:3-5days after receive your confirmation
5.Warranty:one year
6.After sales service:Available
Package and Shipping
According to the price and effencify,choose the best transportation for you.
ncify,choose the best transportation for you
