Help Center15kw All-in-one High Frequency Induction Heating Welder
Related Products
-
15kw All-in-one High Frequency Induction Welder for SaleUS$ 1,000 - 1,000MOQ: 2 Pieces -
Small Solid State High Frequency Induction WelderUS$ 1500.00 - 1550.00MOQ: 2 Pieces
-
Diamond Tools High Frequency Brazing WelderUS$ 2650.00 - 2700.00MOQ: 2 Pieces
-
Hot-sale Induction Heat Welding MachineUS$ 5500.00 - 5550.00MOQ: 2 Pieces
-
Induction Heat Treating MachineUS$ 1100.00 - 1200.00MOQ: 2 Pieces

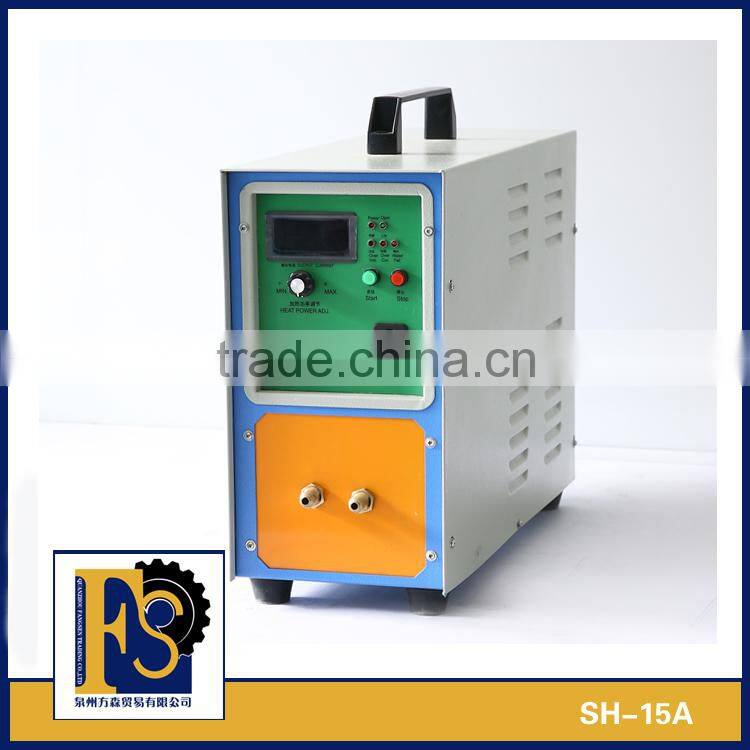

Model |
SH-15A |
Work power |
One phase,50HZ |
The range of operating voltage |
180V-250V |
Output power |
15KW |
Fluctuating frequency |
30-100KHZ |
Output current |
200-600A |
Timing |
1-99S |
The flow rate of colling water |
0.06-0.12Mpa,7.5L/Min |
Water temperature protecton point |
40℃ |
Weight |
25Kg |
Dimension |
550*220*470 |
*Seek for greater perfection
* our maintenance team is both good in craftsmanship&service;
*To help our customer to solve their problem;
*The service respond time during 24 hours;
*Follow closely our customers benefit in every minute;
*Delivery ,installation&adjustment for free within China;
*Provide free of charge operation training,maintenance&technology support;
*Enjoy equipment technical upgrade service for the whole life;
*Free of charge annual inspection and door-to-door check service by our engineers within China;
package:Inside,one machine one paper carton;outside:woodcase;
shipping:if normal specification machine ,within 14 workings days ;if special machine (clients required),it will need 30 working days;
*adopts the latest MOSFET,IGBT power units and frequency conversion control techniques with high efficiency,low energy consumption and higher output power;
*with constant current and constant power control function to greatly optimize the heating process of metals ,realize efficient and fast heating,and fully exert the superiority of the products;
*power consumption is half of traditional electron tube high frequency heating equipments under same conditions;
*with 100%load design,can work 24 hours without stop.Infrared temperature detector can be equipped to realize the autonatic control of temperature,improve the heating quality and simplify manaual operation.
*with heating-insulating-cooling three stages function setting,the heating and insulating time required can be get to accommodate to the batched and repeated heating situations;
*with multiple status display of oerflow,overvoltage,low water phase failure and load malfunction,providing higher reliability and sustainability;
*Select power supply according to the power and frequency.The higher the frequency,the shallower the heating depth,and the lower the frequency,the better the diathermancy.
