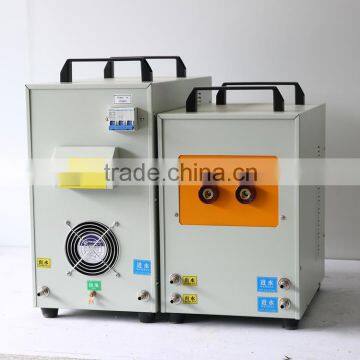

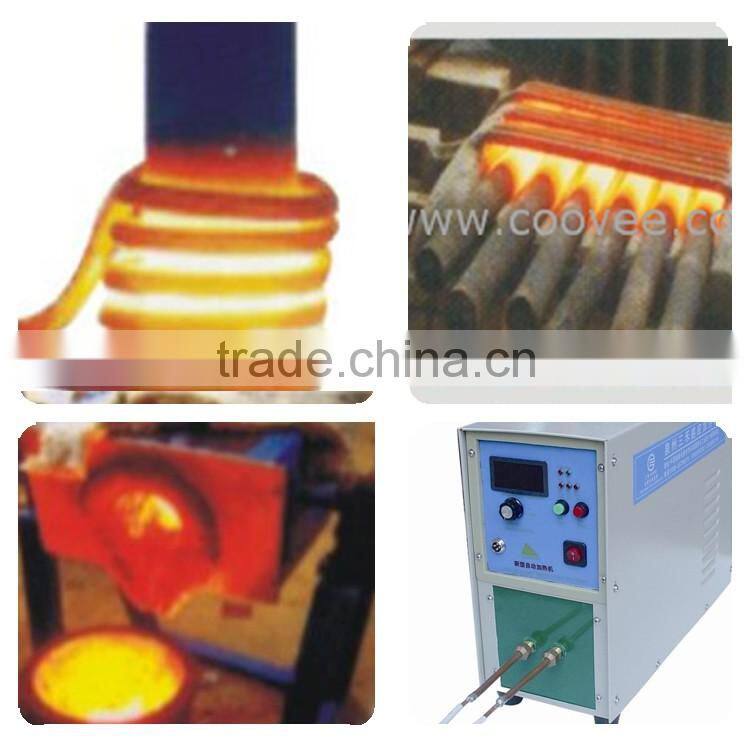

Diamond Tools High Frequency Brazing Welder
- XIAMEN/FUZHOU
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | SANHE | |
| Model Number | SH-45AB | Voltage | 220V | |
| Current | 400-1500A | Rated Capacity | 45KVA | |
| Rated Duty Cycle | 100% | Dimensions | 600*270*550mm(main machine) 450*290*480(submachine) | |
| Weight | 27kg(main machine) 26kg(submachine) | Usage | Soldering | |
| Certification | ISO9001 | After-sales Service Provided | Overseas third-party support available |
Product Description

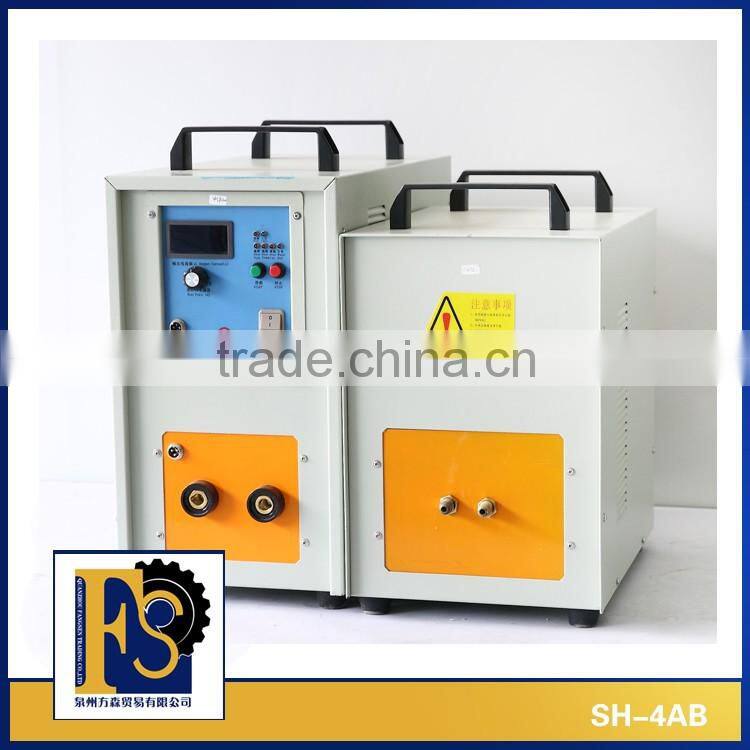

Model | SH-45AB |
Work power | Three phases,50HZ |
The range of operating voltage | 340V-430V |
Output power | 30KW |
Fluctuating frequency | 30-80KHZ |
Output current | 400-1500A |
Timing | 1-99S |
The flow rate of colling water | 0.08-0.16Mpa,7.6L/Min |
Water temperature protecton point | 40℃ |
Weight | main machine:27Kg sub-machine:26Kg |
Dimension | main machine:600*270 *550 sub machine:450*290*480 |
*Seek for greater perfection
* our maintenance team is both good in craftsmanship&service;
*To help our customer to solve their problem;
*The service respond time during 24 hours;
*Follow closely our customers benefit in every minute;
*Delivery ,installation&adjustment for free within China;
*Provide free of charge operation training,maintenance&technology support;
*Enjoy equipment technical upgrade service for the whole life;
*Free of charge annual inspection and door-to-door check service by our engineers within China;
package:Inside,one machine one paper carton;outside:one three-ply board wood case;
shipping:if normal specification machine ,within 14 workings days ;if special machine (clients required),it will need 30 working days;
*adopts the latest MOSFET,IGBT power units and frequency conversion control techniques with high efficiency,low energy consumption and higher output power;
*with constant current and constant power control function to greatly optimize the heating process of metals ,realize efficient and fast heating,and fully exert the superiority of the products;
*power consumption is half of traditional electron tube high frequency heating equipments under same conditions;
*with 100%load design,can work 24 hours without stop.Infrared temperature detector can be equipped to realize the autonatic control of temperature,improve the heating quality and simplify manaual operation.
*with heating-insulating-cooling three stages function setting,the heating and insulating time required can be get to accommodate to the batched and repeated heating situations;

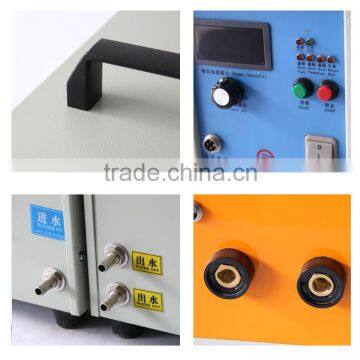

*with multiple status display of oerflow,overvoltage,low water phase failure and load malfunction,providing higher reliability and sustainability;
*Select power supply according to the power and frequency.The higher the frequency,the shallower the heating depth,and the lower the frequency,the better the diathermancy.
