Specifications
asa pvcthermal insulation and100% waterproof
light weight
load bearing
Brief introduction
Performance
Environment friendly and energy saving |
It is a kind of environment-friendly,energy-saving and recyclable building material which is widely used both in developed and developing countries. |
Color lasting |
According to the outdoor service result in Arizona and Florida in USA which have strong sun shine, it is proved that can be guaranteed within 15-20 years. |
Load bearing |
PMMA roof tile has very good load bearing performance. No damaged when 150kg is evenly loaded with support distance being 750mm. |
Sound absorption and heat insulation |
The coefficient of heat conductivity is 0.325w/m.k,which is about 1/3 of clay tile,1/5 of 10mm-thick cement tile, and 1/2000 of 0.5mm-thick color-coated steel tile. It has good sound-absorption ability. |
Stable volume |
Even if the temperature changes a lot, the tile expansion can be absorbed by itself to ensure its stable geometric dimension. |
Corrosion resistance |
PMMA roof tile can resist the chemical corrosion of acid, alkali, salt ect. for a long time. |
Good water resistance |
The surface material of PMMA is compact and doesn’t absorb water without the problem of water penetration by micro pores. |
Impact resistance |
Physical test of a 1kg steel ball freely falls on the tile from 2 meters height without any crack, and there is no damage when the ball falls ten times at low temperature. |
Light weight |
The weight is 6kg per square meters. |
Difficult to be burned |
The main body material polyvinyl chloride resin, and its chemical performance determines that it is difficult to be burned. |
Applications :
It is suitable for roof decoration of all kinds of industrial and civil buildings, such as
1)the roofof flat-to-sloping projects
2)high grade workshops, warehouses, gymnasiums, super markets,villas, gardens, pavilions, etc.
Technical Data
| Heat-Resistance |
(72°c,6h)no deformatio, no viscousness |
High-low temperature change | ±0.11% |
| Cold-Resistance | (-40 °c,6h) no crack in suirface | Fire-protection | Class B1 Retardant Building Materials |
| Bending capability | 25mm | Vicat softening temperature | ≥75°c |
| Flexural load | 800N, no crack | Water absorption rate | ≤0.05% |
| Fleural strength | 72MPa | Nail force | ≥46N |
| Tensile strength | 30MPa | Chemical resistance properties | No reaction in salt, alkali(≤60%) |
Installation process :

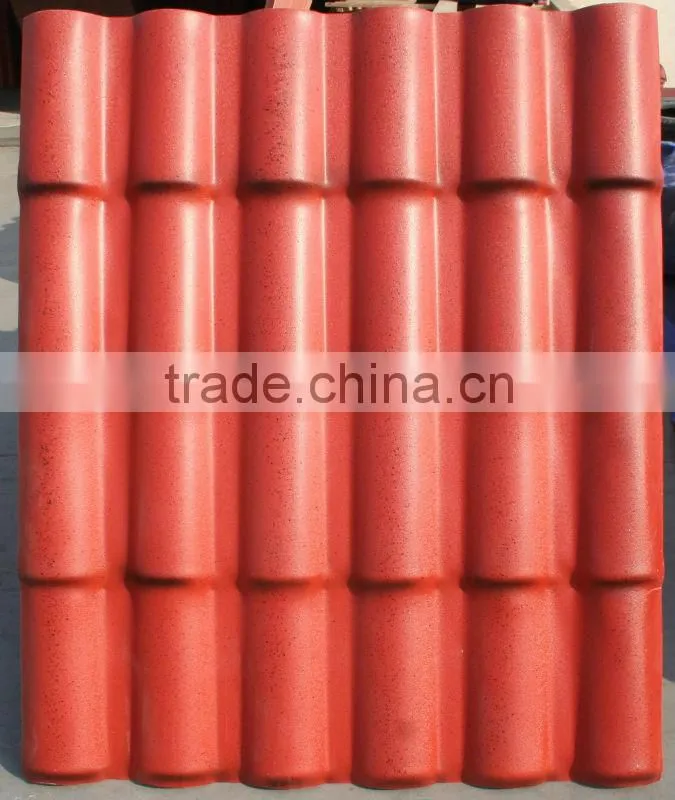

Pictures

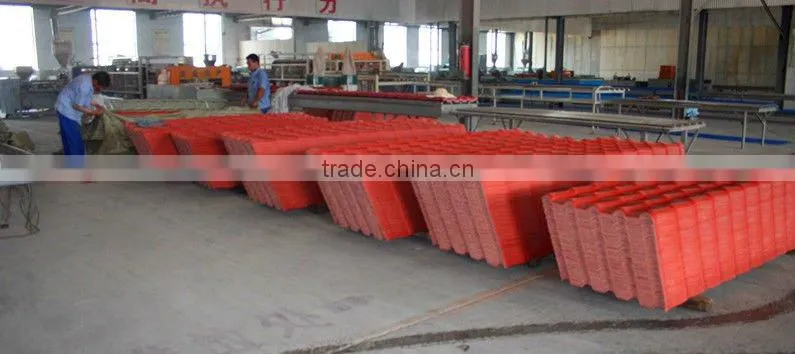

Real Product in workshop
Package and Loading
Effect pictures :
Why choose us?
Company profile
Founded in 1992, Laizhou Jieli Industrial Co.,Ltd. Is an ISO9001:2008 certified company and specialized in researching, developing, manufacturing and supplying roofing tile for over 20 years.
To ensure the production order, now we have increased the production capacity to 5,500,000 square meter per year with 20 production lines, 300 workers and 17 professional technicians.
The production Line:
Test Equipment:
Customers in our company
The certificates :
We have the following test report now:
- Thermal deformation temperature test report
-------------------------------------------------------------------------------------------------------------------------------------------------------------------

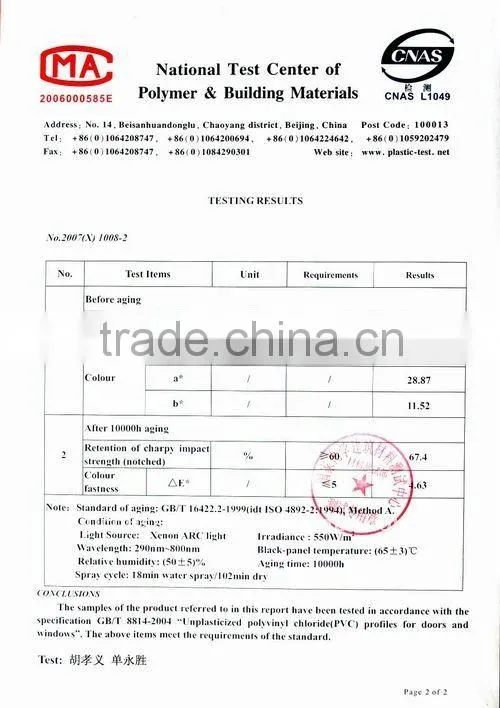

- Color fasting test report
---------------------------------------------------------------------------------------------

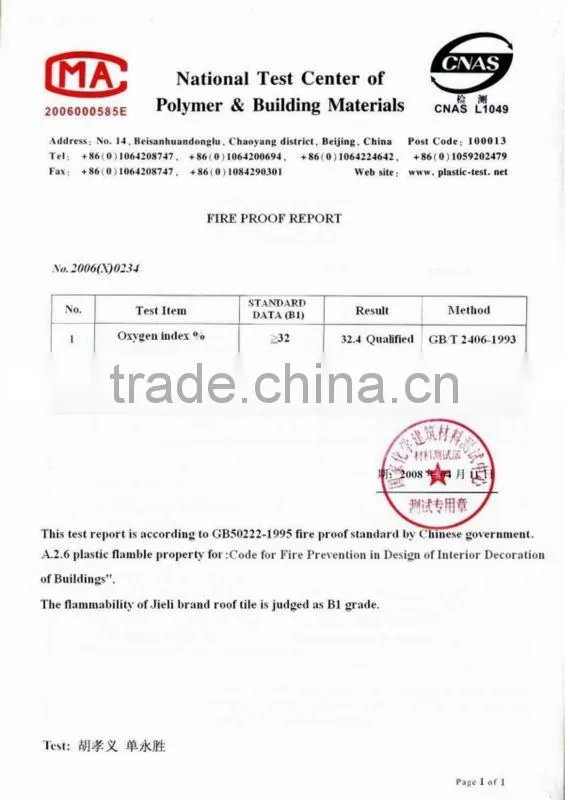

- Fire proof test report
------------------------------------------------------------------------------------------------------------------------------------------------------------
What we can supply:
- Professional Manufacturer
- Advanced Equipment
- Good Quality & Flexible Design
- Competitive Price
- High-Quality Team
Meanwhile, we are searching for the distributor all over the world.
I am Lucy Liu, If you are interested in us or our products, pls contact me.
Welcome to visit our company, Look forward to cooperate with you!
