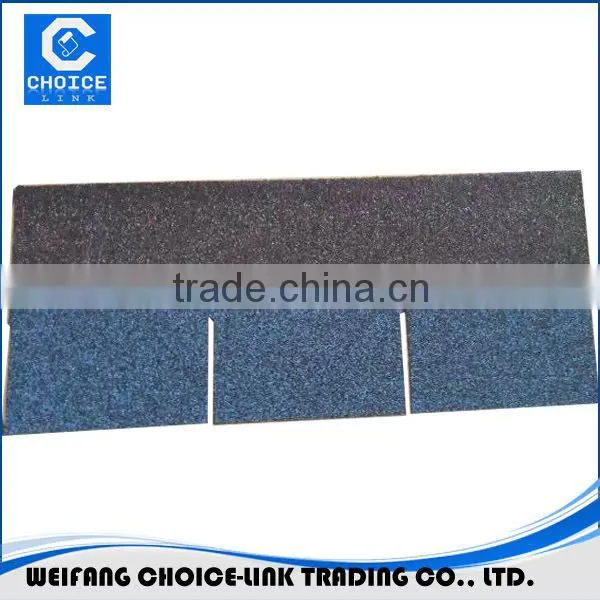

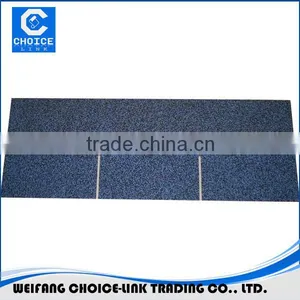

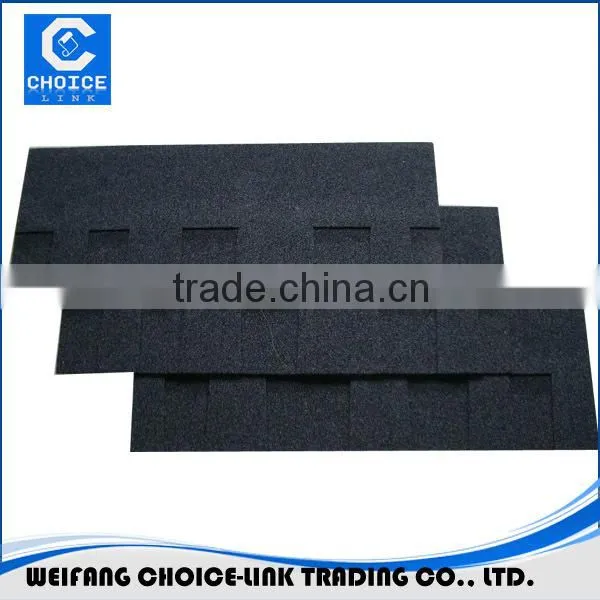

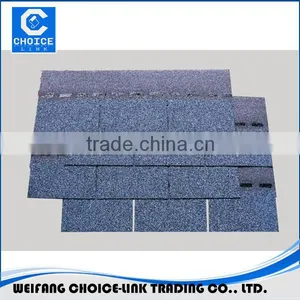

3-tab asphalt roof shingles china supplier
This is the China standard of GB/T20474-2006. If this can not meet your requirement , pls let us know and we will produce it for you.
Product Specifications | |
|
|
Mode | 3-tab Asphalt Shingles |
Length | 1000mm±3mm |
Width | 333mm+5mm/333mm-3mm |
Thickness | 2.6mm-2.8mm |
Weight per bundle | 25kg±1kg |
Packing | 21 pieces/bundle |
Square meters/bundle | 2.32 square meter/bundle |
Shingles per square meter | 7 pieces |
|
|
single layer asphalt shingles Description
Number | Item | Single layer | Double layer |
1 | Fusible content(g/m2)≥ | 1000 | 1800 |
2 | strength/(N/50mm) ≥ | Longitudinal | 500 |
Traverse | 400 | ||
3 | Heat resistance (90°C) | No sliding,flowing,Dripping | |
4 | low temperature flexibility(10°C) | No crack | |
5 | Tearing strengh/N ≥ | 9 | |
6 | Water Impermeability(0.1Mpa,30min) | Impermeability | |
7 | Anti-nail Extraction Performance/N ≥
| 75 | |
8 | Adhesive Performance of Mineral Grains b/g ≤
| 1.0 | |
9 | Peeling Strength of Mental c/(N/mm)≥ | 0.2 | |
10 | Artificial Climate Accelerating Ageing | Surface
| No slippering,no flowing no driping
|
E≤Chromatism
| 3 | ||
(10°C) Flexibility
| No Crack
| ||
11 | Anti-wind Performance | Pass | |
12 | Heat-resistance of the Self-adhesive Glue
| 50°C | sticky |
75°C | ≤2mm Slipper
| ||
13 | Peel Strength of the Overlay /N ≥ | --- | 20 |
a. Cold flexibility can be customized b. Apply to asphalt shingle covered by mineral grains (pieces) only. C.Apply to asphalt shingle covered by metal foil only | |||
class-fiber-tile’s function and characteristic
- Wide-Ranging Choice of Color and Exterior
- For All Climates and Strong Adaptability
- Light Weight and Environmental Conservation Roof System
- If Working correctly, No Need to Mend
- Wide Range of Application
- Non-Special Fittings, Lower Cost
- Keep Clean by itself
- Heat Insulation and Absorbing Noise
- Class A Fireproof and Wind Resistance
Why choose us?
1,Honest supplier to the worldwide buyers
2,Factory, direct supplier, competitive price
3,Know how to control the costing with 10 years producing experience
4,Warm and friendly service and guide
5,3 shifts workers for 24hrs production, high capacity
6,Small and big orders are welcome from the worldwide
7, 24 hours service for you
Website:
Honest is our business policy, quality and service first. The key of the successful activity in the high quality of research and controls before, during and after production.
