US$ 1 - 2 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other
Contact Supplier Request Quote Chat Now
Megastek Technologies Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK( can be negotiated)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other
Function Other
Place of Origin Guangdong, China
Brand Name Twinmask, Twinmask
Model Number GVT-369S
Warranty 12 Months, 12 Months
stateline gps tracking tracks gps tracking devices with oil, Ignition detection

Main Function:



  1. Tracking by SMS/GPRS (TCP/UDP)
  2. Real time tracking
  3. Tracking regularly
  4. Power saving mode
  5. SOS emergency calling
  6. Geo-fence
  7. Over speed alarm
  8. Vibration alarm
  9. Low power alarm
  10. GPS signal is weak warning
  11. Build-in 4M data Logger
  12. Monitoring remote or two-way communication (optional)
  13. 4 digital outputs, 4 digital inputs and 3 analog inputs
  14. Ignition detection
  15. Oil detection
  16. Remote fuel/engine cut off
  17. Cut external power off alarm
  18. Hitting alarm
  19. 3G-sensor

 stateline gps tracking tracks gps tracking devices with oil Ignition

stateline gps tracking tracks gps tracking devices with oil Ignition

Specification:



Items Specification
Power Supply DC 7-24V/3A
Backup Battery Rechargeable 750 mAh battery (3.7V)
Normal Power Consumption 50mA/h
Size 124 mm X 66 mm X 27 mm
Weight 210g
Operating Temperature -20°C to +55°C
Humidity 5% to 95% Non-condensing
GSM Module Quad Band GSM 850/900/1800/1900Mhz
GPS Chipset Latest GPS chipset/ UBLOX
GPS Sensitivity -159 dB
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz
Channels 20 channels
Position Accuracy < 10 M 2D RMS
Velocity Accuracy 0.1 M/S
Time Accuracy 1 us synchronized to GPS time
Reacquisition 0.1 s (average)
Hot Start 1 sec., average
Warm Start 3 sec., average
Cold Start 37 sec., average
Altitude Limit 18,000 meters (max: 60,000 feet)
Velocity Limit 515 m/s (max: 1000 knots)
Acceleration Limit Less than 4g
Working Time 7 hours can be used normally
LED 3 LED lights to show power, GPS, GSM and other status
Button One SOS button use for make a phone call, sending position and alarm message via SMS
Interface 4 digital outputs
3 analog inputs
4 digital inputs

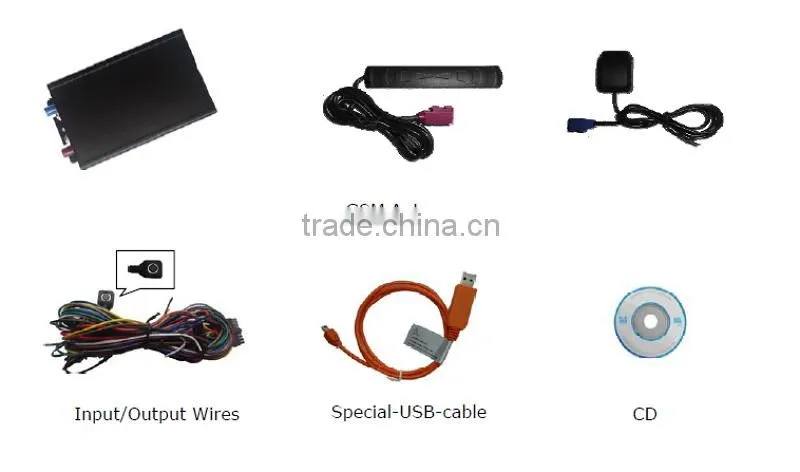

Accessories

stateline gps tracking tracks gps tracking devices with oil Ignition

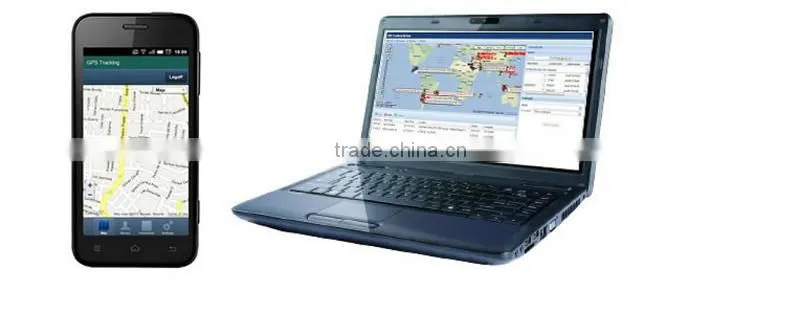

PC Platform and APP

Tracking Platform and Mobile APP:



Our Demo Platform: /gps

Login: Guest

Password: 666666





stateline gps tracking tracks gps tracking devices with oil Ignition

stateline gps tracking tracks gps tracking devices with oil Ignition

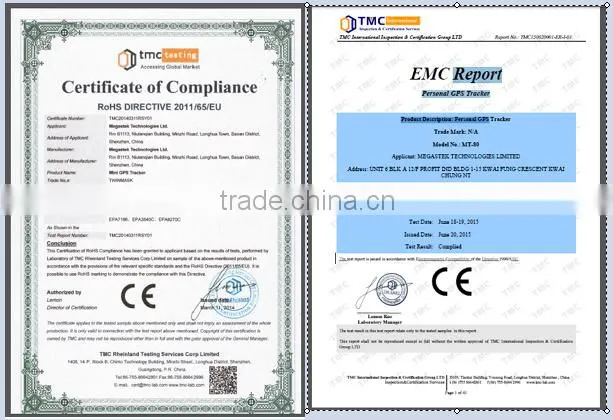

Certifications

stateline gps tracking tracks gps tracking devices with oil Ignition





Trade Shows

stateline gps tracking tracks gps tracking devices with oil Ignition
