Help CenterReal Time Vehicle Tracker Tracking Device for Car With RFID, Camera
Related Products
-
Tracker Based Tracking Software in Europe and North America With Camera for Fleet ManagementNegotiableMOQ: 20 Units -
Built-in Motion Sensor Multi-function Gps Navigation Tracking Device With RfidNegotiableMOQ: 20 Units
-
Car Gps Navigator Gps Handy Tracker for Heavy Security TransportNegotiableMOQ: 20 Units
-
Gps Handheld Tracker With Free Gps Online Tracking Platform for Bus, Heavy MaschineNegotiableMOQ: 20 Units
-
Ubox Gps Satellite Tracking Device With Two-way Communication for Fire TruckNegotiableMOQ: 20 Units
Application:
- Heavy motorbike, heavy transport security
- Intercity bus,school bus
- Fleet management
Advantages:
3G sensor
Up to three way cameras
RFID card reader system
LCD navigation screen
Two way temperature sensor
Man Function:
1. Collision alarm
2. 3G accelerometer
3. Tracking regularly
4. Geo-fence alarm
5. Over speed alarm
6. Low battery alarm
7. SOS emergency calling
8. Low battery alarm
9. No GPS signal alarm
10. Build in 1GB memory IC
11. Internal battery 750mAh
12. Tracking by distance
13. Build in 8MB flash memory
14. GPS antenna cut off alarm
15. External power cut off alarm
16. Fuel/engine cut off remotely
17. Camera for taking photograph (optional)
18. Navigation LCD panel (optional)
19. RFID card reader (optional)
20. Tracking by SMS/GPRS (TCP/UDP)
21. Remotely monitoring or two-way communication
22. Two ways(DS18B20)temperature measurement (optional)

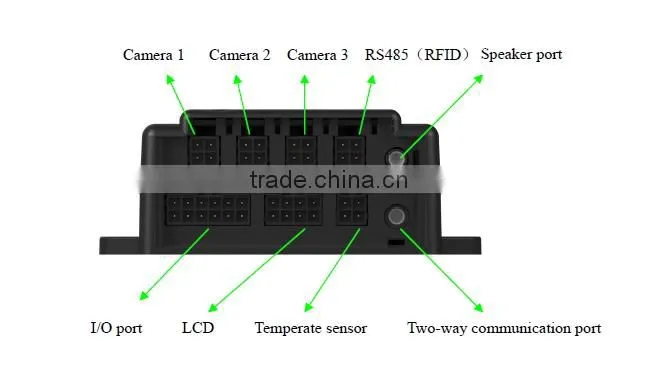

23. Three digital outputs, three digital inputs and two analog inputs, four RS232 ports, one RS485 port
Specification:
| Items | Specification |
| Power supply | DC 9-33V/1.5A |
| Backup battery | Rechargeable battery 750mAh (3.7V) |
| Normal Power Consumption | 70mA |
| Size | 84 mm*66 mm*30 mm |
| Weight | 135g |
| Operating Temperature | -20 ~ +55 °C |
| Humidity | 5% ~ 95% (Non-condensing ) |
| GSM Module | Quad band GSM 850/900/1800/1900 MHz |
| GPS IC | UBLOX GPS IC |
| GPS sensitivity | -161dB |
| GPS frequency | L1, 1575.42 MHz |
| C/A code | 1.023 MHz |
| Channel | 50 channels |
| Positional accuracy | <10 M, 2D RMS |
| Speed accuracy | 0.1 M/S |
| Time accuracy | Satellite Time: 1 microsecond time synchronization |
| Turnover time | Average 0.1s |
| Hot start | Average 1s |
| Warm start | Average 3s |
| Cold start | Average 37s |
| Maximum altitude | 18,000M (maximum 60,000 feet). |
| Maximum speed | 500 m/s (maximum 1000 knots). |
| Maximum acceleration | Less than 4g |
| Working time | About 7 hours |
| LED | 3 LED lights to show Power, GPS and GSM status |
| Button | SOS button for making phone calls, sending position and giving a warning SMS |
| Port | 3 digital outputs 3 digital inputs 4 RS232 ports 1 RS485 port 2 analog inputs |
PC tracking and mobile app monitoring:
Our Demo Platform: /gps
Login: Guest
Password: 666666
