china gps tracker manufacturer gps tracking device with ACC
Advantages:
- GPS+GLONASS Tracker
- Water resistance
- Car gps tracker with acc, oil detection
- Anti GSM jammer
Mian Function:
- Water resistance (close to IP67)

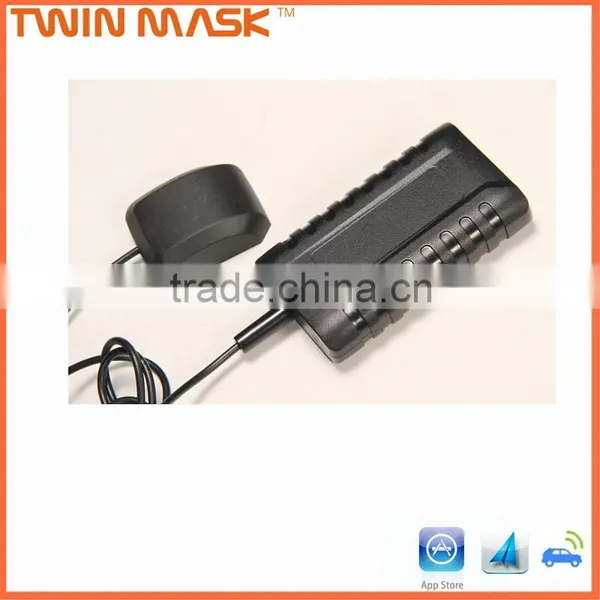

- Built-in GPS & GSM antenna (external GPS antenna optional)
- SMS/GPRS (TCP/UDP) communication
- SMS/GPRS tracking (support TCP & UDP, http is ready soon)
- Real time tracking
- Track by interval/demand
- Background voice surveillance
- Two way communication(optional)
- Power saving mode
- SOS alarm
- ACC detection
- Oil detection
- Remote fuel/engine cut off
- Geo-fencing alarm
- Over speed alarm
- Motion sensor
Specification:
Items |
Specification |
|
Power Supply |
DC 7-24V/3A |
|
Backup Battery |
Rechargeable 820 mAh battery (3.7V), |
|
Normal Power Consumption |
50mA/h |
|
Working Time |
normal vehicle & personal mode |
9.5 hours (GPRS interval: 40 seconds) |
personal long standby mode |
13 hours (GPRS interval: 40 seconds) |
|
Dimension |
88*50*20MM |
|
Weight |
87g |
|
Operating Temperature |
Built in battery -25°C to +60°C standard(-40°C w/optional battery) |
|
Humidity |
5% to 95% Non-condensing |
|
GSM Module |
Quad Band GSM 850/900/1800/1900Mhz |
|
GPS Chipset |
Gps and Glonass chip |
|
GPS Sensitivity |
-165 dB |
|
GPS Frequency |
L1 1575.42MHz |
|
C/A Code |
1.023 MHz chip rate |
|
Channels |
48 channel all-in-view tracking |
|
Position Accuracy |
< 10 M CEP |
|
Velocity Accuracy |
0.1 M/S |
|
Time Accuracy |
1 us synchronized to GPS time |
|
Reacquisition |
0.1 ms |
|
Hot Start |
3 sec., average |
|
Cold(warm) Start |
39 sec., average |
|
Altitude Limit |
18,000 meters (60,000 feet) max. |
|
Velocity Limit |
514 meters/second (1000 knots) max. |
|
Acceleration Limit |
Less than 4g |
|
LED |
3 LED lights to show power(red), GPS(yellow), GSM(blue). |
|
Button |
SOS button for making phone SOS callsand sending SOS SMS |
|

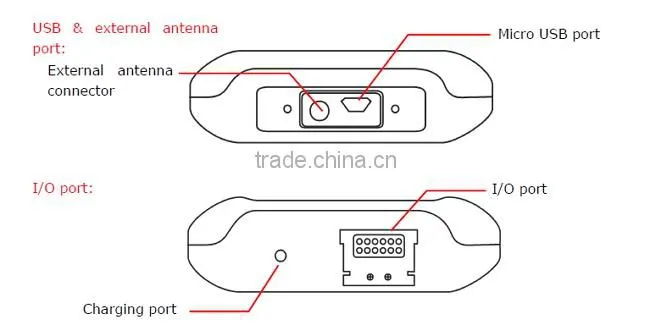

Interface |
2 digital outputs; 3 digital inputs; 2 analog inputs. |
|

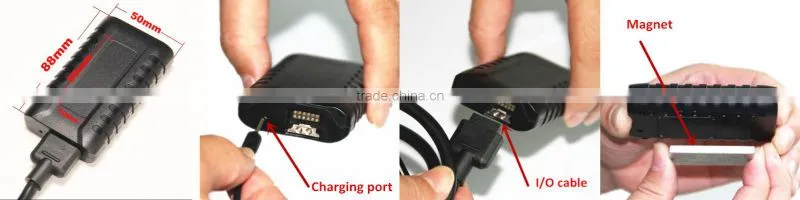

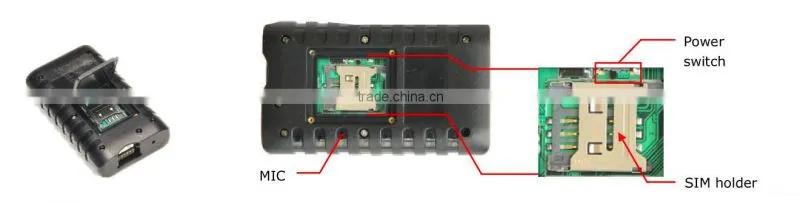

Functional parts:
Water proof:

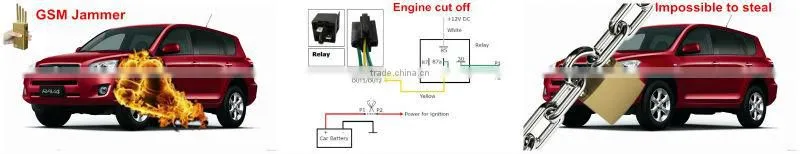

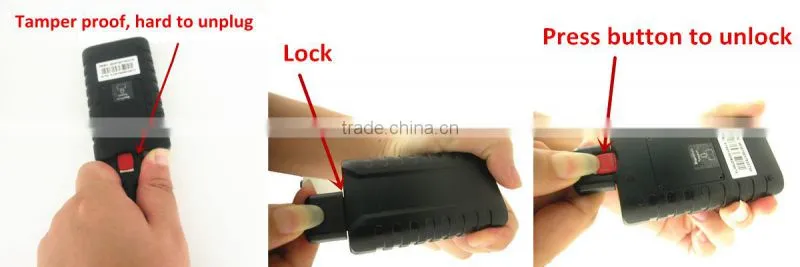

Anti-theft:

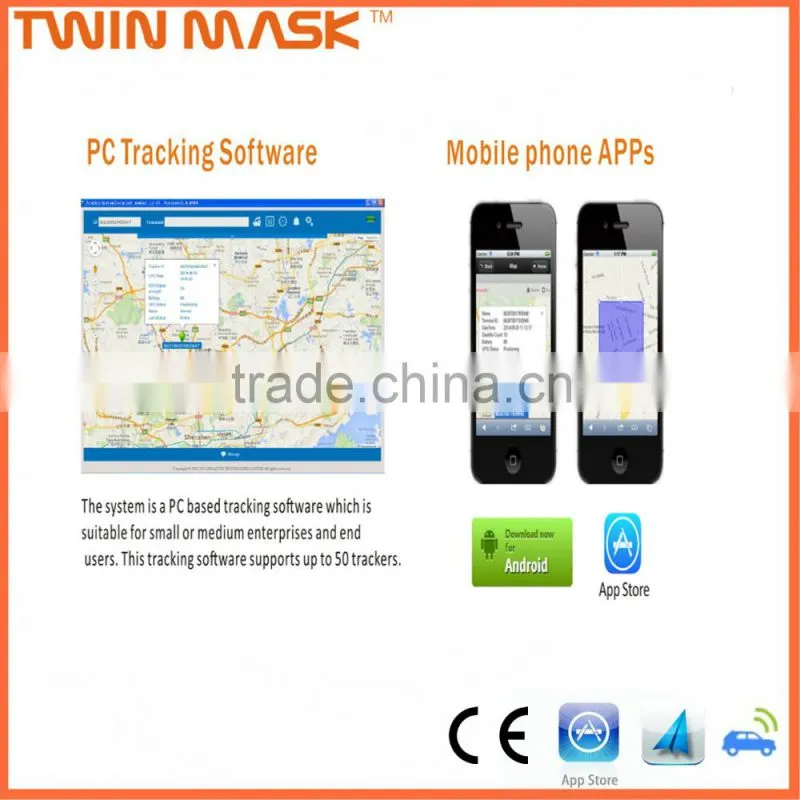

PC platform and Mobile APP tracking and monitoring
Our Demo Platform: /gps
Login: Guest
Password: 666666
1. Why SIM card in tracker does not support GPRS function?
A: Enable SIM card GPRS function.
2. Why GPRS function of tracker is turned off ?
A: Turn on GPRS function of tracker.
3. Incorrect IP address or PORT
A: Get the right IP address and PORT and reset to tracker.
4. Why GSM signal is weak?
A: Move the tracker to a location with good GSM reception.
