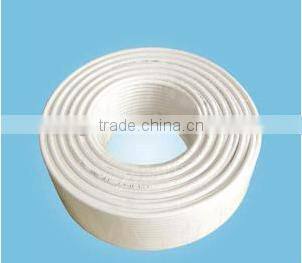

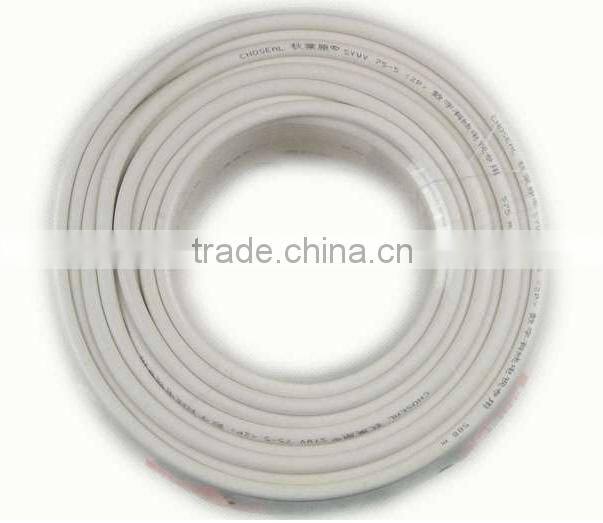

Help CenterTV Cable RG6 Coaxial Cable for CATV Satellite System
Related Products
-
RG6 Coaxial Cable Wire Dual Shield 18AWG Black Coax Satellite TVUS$ 2.00 - 2.00MOQ: 1000 Pieces -
RF Fly Lead Coax TV Aerial Freeview Plug to Plug TV RG59 Cable 1mUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
TV CATV Satellite Antenna Camera Coaxial Cable RG-59/UUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
RG6 Coaxial Cable With Connectors TV Cable 75ohm F ConnectorsUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Best Coaxial Cable , RG11 Coaxial Cable With Message for Outdoor Cable tv Camera With Rohs ce Iso9001 Made in China YiwuUS$ 2.00 - 2.00MOQ: 1000 Pieces
Electrical Characteristics :
1) Characteristics Impedance: 75+/- 3 Ohms
2) Capacitance Conductor to Shield: 53.1 pF/m
3) Velocity of Propagation : 82%
4) Delay: 4.065 ns/m
5) Min.Structural Return Loss (5-3000MHz) : 20 dB
6) Max. Attenuation :
@ Frequency (MHz) |
dB/100 ft (MAX.) |
dB/100 meters(MAX) |
5 MHz |
0.58 dB |
1.90 dB |
55 MHz |
1.60 dB |
5.25 dB |
211 MHz |
1.95 dB |
10.00 dB |
250 MHz |
2.85 dB |
10.82 dB |
270 MHz |
3.05 dB |
11.04 dB |
300 MHz |
3.30 dB |
11.64 dB |
330 MHz |
3.55 dB |
12.26 dB |
350 MHz |
3.85 dB |
12.63 dB |
400 MHz |
4.15 dB |
13.61 dB |
450 MHz |
4.40 dB |
14.43 dB |
500 MHz |
4.66 dB |
15.29 dB |
550 MHz |
4.90 dB |
16.08 dB |
600 MHz |
5.10 dB |
16.73 dB |
750 MHz |
5.65 dB |
18.54 dB |
870 MHz |
6.10 dB |
20.04 dB |
1000 MHz |
6.55 dB |
21.46 dB |
1300 MHz |
7.46 dB |
24.49 dB |
1450 MHz |
7.89 dB |
25.89 dB |
1750 MHz |
8.74 dB |
28.67 dB |
2150 MHz |
9.69 dB |
31.79 dB |
2600 MHz |
10.76 dB |
35.30 dB |
2832 MHz |
11.55 dB |
37.74 dB |
3000 MHz |
11.84 dB |
38.84 dB |
