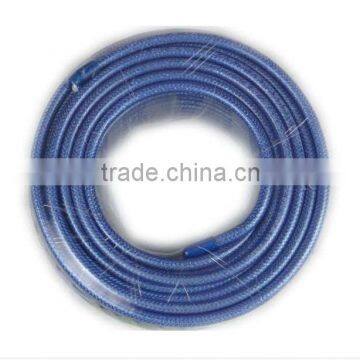

75ohm RG6 Coaxial Cable for TV Network Audio Video

Name: 75ohm RG6 Coaxial Cable for TV Network Audio Video
Brand: donglan
SKU: 115565301
Availability: InStock

US$ 2.00 - 2.00 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Jiangxi, China

Brand Name:

donglan

Model Number:

audio

Jiangxi Donglan Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangxi, China

Brand Name donglan

Model Number audio

Type Other

Application Other

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

Specifications

75ohm RG6 Coaxial cable for TV network audio video ISO9001,ISO14001,CE,ROHS,UL(E365560)

1.02±0.02mmBC+4.8±0.10mmFPE+BONDED AL FOIL+64*0.12±0.01mmAL-MG COVERAGE 50%,PITCH 38mm+6.8±0.10mmPVC JACKET

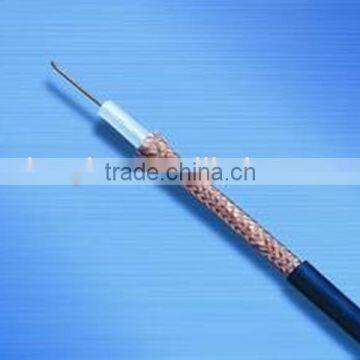

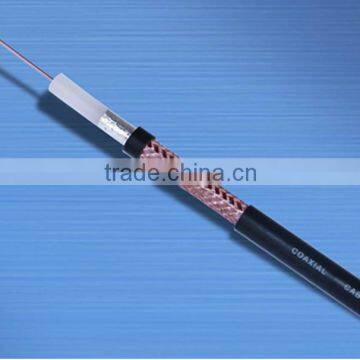

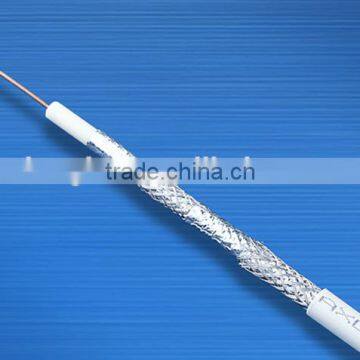

Construction
Inner conductor	BC	1.02±0.02mm
Dielectric	Foam PE	4.8±0.10mm
Shield	Bonded Al foil	17mm
Braid(60%)	Al-mg	64*0.12±0.01mm
Jacket	PVC	6.8±0.10mm
Steel Messenger	Steel	1.30±0.02mm
Jelly	Per customs’ special requirement

Mechanical Charecteristics
Minimum breaking strength of messenger		Dia. 1.30mm 82kgf
Electrical Characteristics
Impedance			75±3 ohms
Shielding Effectiveness(≥dB)			55MHz		85
			300MHz		90
			1000MHz		90
Echo Loss(≥dB)			VHF		22
			UHF		20
Attenuation(20°C,Db/100m)
5MHz	1.90			400 MHz		13.60
55 MHz	5.25			450 MHz		14.40
211 MHz	10.00			550 MHz		16.08
270 MHz	11.04			750 MHz		18.54
300 MHz	11.60			870 MHz		20.04
330 MHz	12.26			1000 MHz		21.49
