Specifications
1.Inverter MIG/MAG Welding Machine.2.Advanced IGBT Technology.
3.Higher Duty Cycle.
4.Stable Welding Performance.
5.Popular

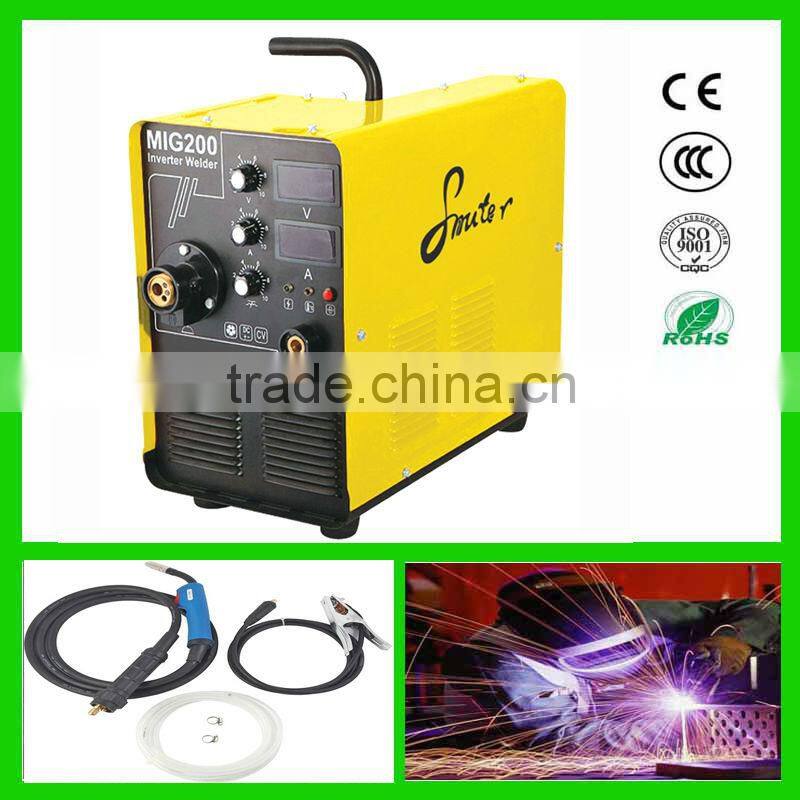

Inverter MAG/MIG Welding Machine MIG200
A, Functions and Features
1. Adopt IGBT as power service, with unique control mode, high reliability.
2. High duty cycle, be able to carry out long-time welding
3. Closed circuit feedback, constant voltage output, fits for wide voltage range (±15)
4. Slow wire feeding during arc starting, removing the tip ball after welding enables easy arc-starting
5. Under the control of electronic reactor, stable welding arc, little spattering, deep welding penetration and nice welding bead.
6. Widely use in thin plate welding field such as automobile, motorcycle accessories, steel-wood furniture, high steel structure etc
B. Technical Parameters
Item Model |
MIG200 |
MIG250 |
MIG350 |
MIG500 |
Input power voltage/ Frequencey (V/HZ) |
AC220V±15%50/60HZ |
AC220V/380V±15%50/60HZ |
AC/380V±15%50/60HZ |
AC/380V±15%50/60HZ |
Rated input power capacity (KVA) |
6 |
9.2 |
14 |
24.6 |
Rated output current/voltage(A/V) |
200A/24V |
250A/ 26.5V |
350A/ 31.5V |
500A/ 39V |
Output current range (A) |
50-200 |
50-250 |
50-350 |
60-500 |
Duty cycle (%) |
60 |
60 |
60 |
60 |
No-load voltage (V) |
50±2 |
50±2 |
60±2 |
60±2 |
Feeding speed(M/min) |
2.5-16 |
2.5-16 |
1.5-16 |
1.5-16 |
Diameter of spool (mm) |
270 |
270 |
270 |
270 |
Post flow time(s) |
1±0.5 |
1±0.5 |
1±0.5 |
1±0.5 |
Type of wire feeder |
inside |
inside |
seperate |
seperate |
Welding thickness( mm) |
Above 0.8 |
Above 0.8 |
Above 1.0 |
Above 1.0 |
Diameter of rod (mm) |
0.8-1.0 |
0.8-1.0 |
1.0-1.2 |
1.0-1.2-1.6 |
Size (mm) |
490×265×420 |
500×275×430 |
570×285×470 |
610×335×630 |
Weight (kg) |
25 |
26.5 |
32 |
45 |
Efficiency (%) |
85 |
85 |
85 |
85 |
Power factor (COSφ) |
0.93 |
0.93 |
0.93 |
0.93 |
Insulation class |
F |
F |
F |
F |
Protection class |
IP23 |
IP23 |
IP23 |
IP23 |

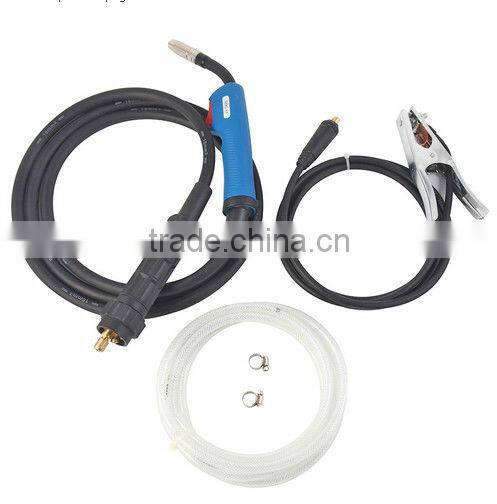

C. Standard Accessories
D. Supply
1. OEM and ODM sevice offered.
2. One Year Warranty.
3. Technical Support.
4. CE,CCC and ISO9001:2000 available.
E. Strict Quality Control:
1.Our products are strictly tested 100% before delivery, CCC,CE and ISO9001:2000 got approved. 2.our products are able to meet or exceed some of the industry's most rigid standards. 3.We can ensure that you will be satisfied with both performance and durability.
F. After-sale Service:
1. 1.5% Spare Parts is available for Repairing and Maintaining duirng machines' selling.
2. Our Technician or engineer would be appointed to asist you settle down the problem you can solve.
3.The professional Vedio can be available for training and repairing.

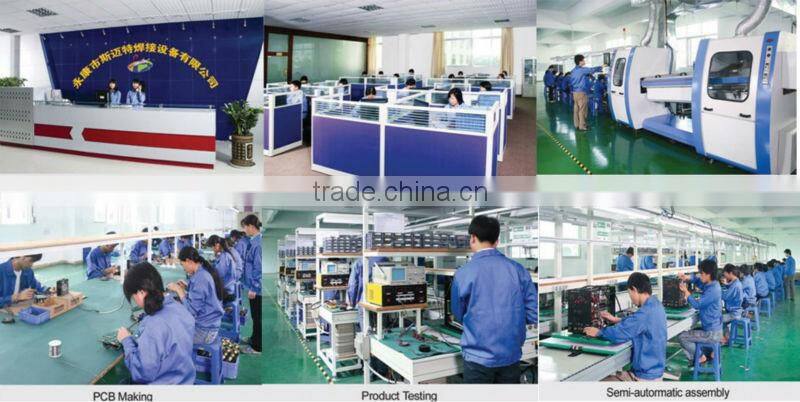

G. Company Background:

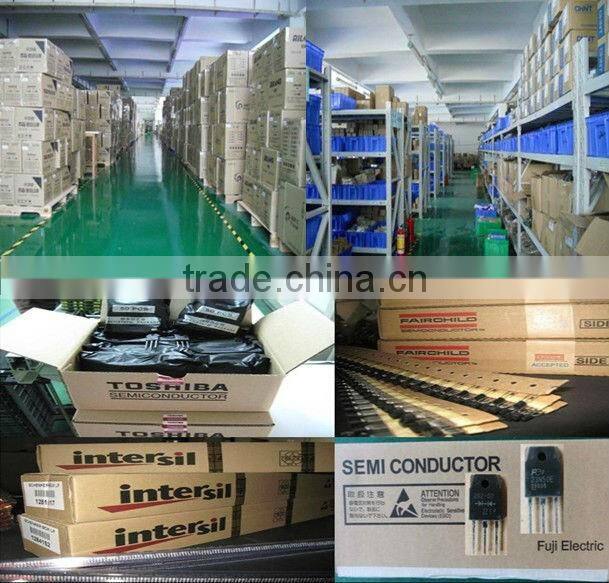

H. Company Warehouse:
I.Canton Fair:
J. Container Loading:
K. Logestics Services:
